Welding Consumables
Commercially pure titanium filler metal for MIG and TIG welding in applications where moderate strength and major corrosion resistance are required
- Standard: AWS A5.16
ERTi-3 (Titanium Grade 3) Titanium Welding Wire
Request a Quote
Chemical Composition (%)
| C | O | N | H | Fe |
| ≤0.03 | 0.13-0.2 | ≤0.02 | ≤0.008 | ≤0.16 |
Features
- Lightweight with a low density of approximately 4.5g/cm³, making it similar to aluminium in weight
- Offers high strength, corrosion resistance, and high-temperature stability, while being easy to process and weld
Applications
ERTi-3 is ideal for applications that require moderate strength combined with significant corrosion resistance, including:
- Aerospace: Used in welding aircraft structures, engine components, spacecraft shells, and other aerospace equipment
- Marine engineering: Suitable for welding subsea pipelines, offshore platforms, submarines, and marine components

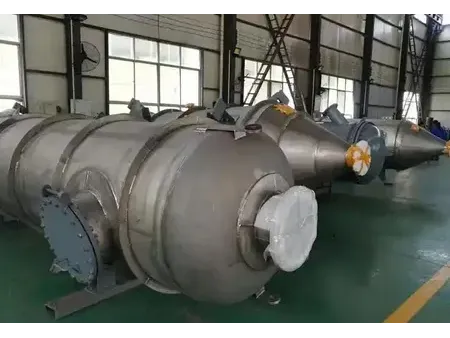

- Chemical industry: Used in welding reactors, storage tanks, pumps, and valves for corrosion-resistant equipment
- Sports equipment: Applied in welding high-end sports equipment such as bicycles, golf clubs, and tennis rackets

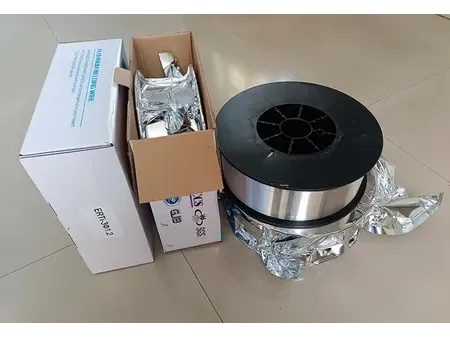

Packaging
- MIG wire diameter (fine wire spooling): 0.8mm, 1.0mm, 1.2mm, 1.6mm
- Package: D300mm (10kg/spool), D100mm (0.8kg/spool)

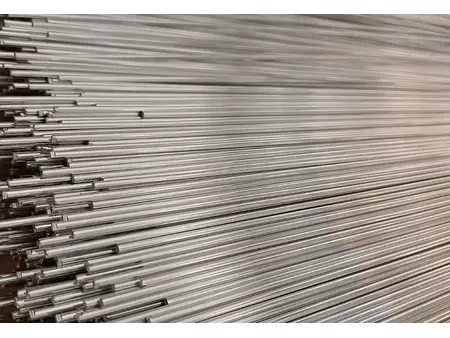

- TIG wire diameter: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
- Package: 1000mm length (5kg/plastic box)

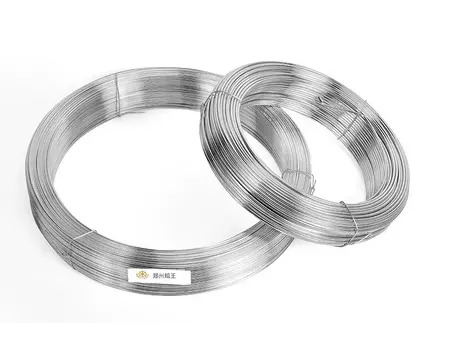

- TIG wire diameter (coil without spool): 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm
- Coil inner diameter: D450mm, D300mm
- Package: 10kg/coil
