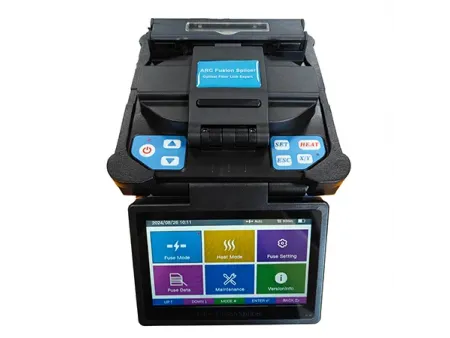

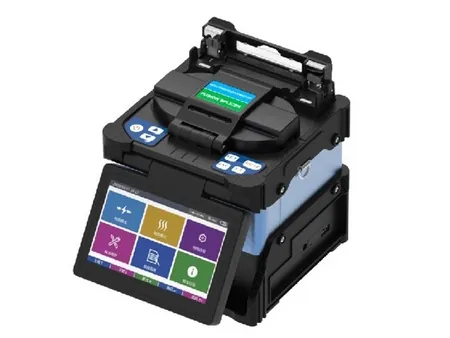

PRO Optical Fusion Splicer with 5-inch LCD Touch Screen

Request a Quote

JW4108

Features

Supports splicing for bare fibers, jumpers, and rubber-coated fibers with a three-in-one design.
Equipped with a 9000mAh lithium battery for up to 300 splicing and heating cycles per charge.
Heating process completes in just 15 seconds to enhance operational efficiency.

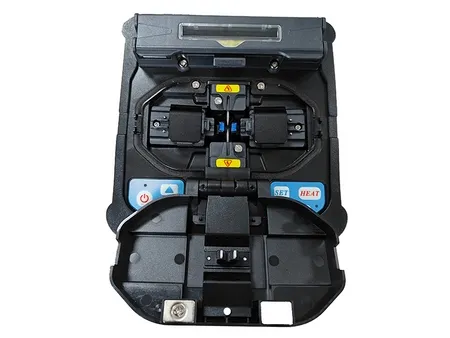

V-groove alignment system offers high precision for accurate splicing.
5-inch LCD screen with high resolution and 380x magnification ensures clear visibility during operations.

Specifications

CPU	Industrial grade dual CPU (quad core)
Fiber Alignment	Core and cladding alignment, automatic focus
Applicable Fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), BIF/UBIF(G.657)
Fiber Diameter	Cladding: 80 to 150μm Coating: 100μm to 3mm
Cutting Length	5 to 16mm
Alignment Mode	Manual/automatic focus
Splicing/Heating Mode	A variety of splicing and heating modes is preset, can be customized
Average Splicing Loss	0.02dB (SM), 0.04dB (MM), 0.04dB (DSF), 0.04dB (NZDSF)
Fusion Splicing Time	6 seconds
Heating Time	15 seconds
Storage	10000 groups
Magnification	380 times
Display	5 inch digital LCD touch screen
Lighting	Built-in lights
Power Supply	Input: AC100-240V (50-60Hz) Output: DC10 to 13.5V
External Interfaces	DC adapter, USB
Pulling Force Test	1.96 to 2.25N
Heat-Shrinkable Tube	10 to 60mm
Battery Life	9000mAh (splicing and heating cycles: 300 times)
Electrode Life	3000 to 5000 times (recommended)
Communication Interface	USB port for software upgrading, ecords exporting
Operating Environment	Altitude: 0 to 5000m Wind speed: 15m/s Temperature: -10 to 50℃ Relative humidity: 0 to 95%RH
Resistance	Dust/shock/water
Storage Conditions	Humidity: 0-95%, Temperature:- 20 to 50'C, Battery storage temperature: -20-30°C
Dimensions	144×142×151mm
Weight	2kg
