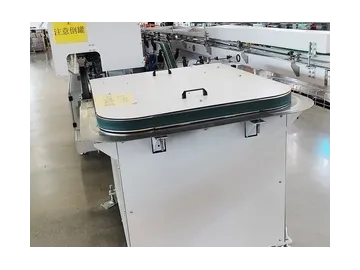

Can Body U-Turn Conveyor
Request a Quote
U-shaped magnetic conveyor for smoothly transferring and redirecting tinplate can bodies
The can body U-turn conveyor, also known as a 360 degree magnetic transfer conveyor, is mainly used for conveying can bodies in tinplate can making plants and can also handle other ferrous products. It is designed to redirect cans in a compact footprint while keeping them stable and correctly oriented.
Specifications
| Belt width | 50 to 150 mm |
| Belt material | PU belt |
| Frame material | 304 stainless steel or powder coated carbon steel |
| Motor | 0.75 kW × 2380 V (Liming, Taiwan) |
| Applicable can types | Various tinplate easy-open can bodies |
Features
- No operator is required during normal operation, as cans are transferred automatically from the U-shaped curing oven outlet to the cooling conveyor over a very short distance
- Conveyor speed can reach about 500 to 800 cans per minute, supporting high speed three piece can lines
- Smooth running and high production efficiency, with speed adjustment through frequency controlled motors
- Main frame manufactured from 304 stainless steel or powder coated carbon steel for a clean, simple and robust structure
Details
