Request a Quote
View All: http://kitchensteelparts.com/2-4-stainless-steel-bullet-feet.html

These bullet feet are compact and extremely durable. They are designed with square or round tubing with various diameters. They are widely applied for light-duty commercial kitchen equipment such as counters, racks, and vertical wash basins.

The hex steel foot makes it easy to adjust. The flanged foot offers additional stability. According to your kitchen equipment and areas of use, we can work with you to find the most ideal bullet feet for your kitchen equipment.

Bullet feet are commonly made of plastic, stainless steel or zinc alloy. The load-bearing capacity ranges from 100kgs to 800kgs. The adjustment range is 1 inch.

Square tubing diameters: 25x25/30x30x32/32x38x38x40x40/50.8x50.8mm

Round tubing diameters: φ25mm, φ30mm, φ38mm, φ41mm, φ50.8mm, φ63mm

Recommended Products

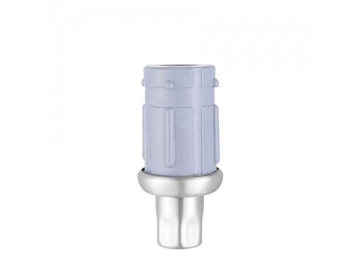

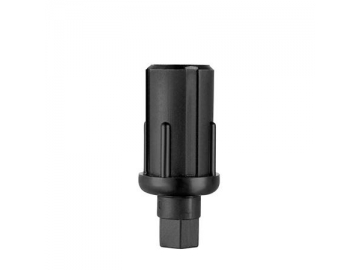

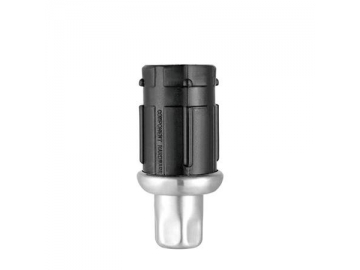

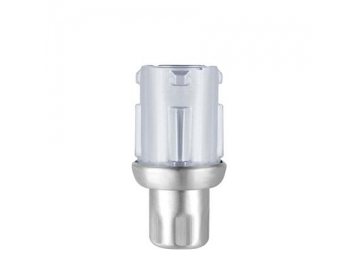

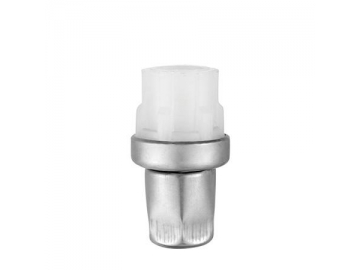

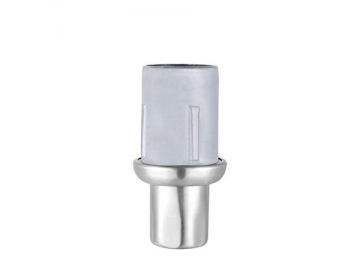

  • Model: DG1016-Y25-1
    Material: Plastic
    Loading capacity: 80kgs
    Tubing diameter:
    25mm round tubing
    2. Model: DG1016-Y25-2
      Material: Plastic
      Loading capacity: 80kgs
      Tubing diameter:
      25mm round tubing
    2. Model: DG1111-Y30
      Material: Stainless steel clad plastic
      Loading capacity: 100kgs
      Tubing diameter:
      30mm round tubing
    2. Model: DG1011-Y30
      Material: Plastic
      Loading capacity: 80kgs
      Tubing diameter:
      30mm round tubing
    2. Model: D2111-Y38
      Material: Zinc alloy
      Loading capacity: 600kgs
      Tubing diameter:
      38mm round tubing
    2. Model: DG5115-Y38
      Material: Steel
      Loading capacity: 300kgs
      Tubing diameter:
      38mm round tubing
    2. Model: D1116-Y38
      Material: Stainless steel clad plastic
      Loading capacity: 80kgs
      Tubing diameter:
      38mm round tubing
    2. Model: D1111-Y38
      Material: Plastic
      Loading capacity: 80kgs
      Tubing diameter:
      38mm round tubing
    2. Model: D1011-Y38
      Material: Nylon
      Loading capacity: 100kgs
      Tubing diameter:
      38mm round tubing
    2. Model: DG1111-Y38
      Material: Plastic
      Loading capacity: 80kgs
      Tubing diameter:
      38mm round tubing
    2. Model: DG1117-Y38
      Material: Stainless steel clad nylon
      Loading capacity: 100kgs
      Tubing diameter:
      38mm round tubing
    2. Model: DG1011-Y38
      Material: Plastic
      Loading capacity: 80kgs
      Tubing diameter:
      38mm round tubing
    2. Model: D1116-Y41
      Material: Plastic
      Loading capacity: 100kgs
      Tubing diameter:
      41mm round tubing
    2. Model: D1111-Y41
      Material: Plastic
      Loading capacity: 80kgs
      Tubing diameter:
      41mm round tubing
    2. Model: D1016-Y41
      Material: Plastic
      Loading capacity: 80kgs
      Tubing diameter:
      41mm round tubing
    2. Model: D2111-Y41
      Material: Zinc alloy
      Loading capacity: 800kgs
      Tubing diameter:
      41mm round tubing
    2. Model: DL2111-Y41
      Material: Steel
      Loading capacity: 300kgs
      Tubing diameter:
      41mm round tubing
    2. Model: D1011-Y51
      Material: Nylon
      Loading capacity: 150kgs
      Tubing diameter:
      51mm round tubing
    2. Model: D1011-Y51L
      Material: Nylon
      Loading capacity: 150kgs
      Tubing diameter:
      51mm round tubing
    2. Model: DG1011-Y51
      Material: Plastic
      Loading capacity: 100kgs
      Tubing diameter:
      51mm round tubing
  • Model: DG1111-Y51
    Material: Stainless steel clad plastic
    Loading capacity: 150kgs
    Tubing diameter:
    51mm round tubing
  • Model: DG5115-Y51
    Material: Steel
    Loading capacity: 300kgs
    Tubing diameter:
    51mm round tubing
  • Model: D2111-Y51
    Material: Zinc alloy
    Loading capacity: 1000kgs
    Tubing diameter:
    51mm round tubing
  • Model: D5114-Y51
    Material: Steel
    Loading capacity: 300kgs
    Tubing diameter:
    51mm round tubing
  • Model: D5114-Y63
    Material: Steel
    Loading capacity: 500kgs
    Tubing diameter:
    51mm round tubing
  • Model: D2013-F25
    Material: Zinc alloy
    Loading capacity: 500kgs
    Tubing diameter:
    25mm square tubing
  • Model: D1011-F25
    Material: Nylon
    Loading capacity: 80kgs
    Tubing diameter:
    25mm square tubing
  • Model: DG2012-F30
    Material: Zinc alloy
    Loading capacity: 500kgs
    Tubing diameter:
    30mm square tubing
  • Model: F3011-F30 Material:
    Loading capacity:
    Tubing diameter:
  • Model: DG1111-F30
    Material: Stainless steel clad plastic
    Loading capacity: 100kgs
    Tubing diameter:
    30mm square tubing
  • Model: DG1011-F30
    Material: Plastic
    Loading capacity: 80kgs
    Tubing diameter:
    30mm square tubing
  • Model: D2013-F32
    Material: Zinc alloy
    Loading capacity: 300kgs
    Tubing diameter:
    32mm square tubing
  • Model: F2023-F32
    Material: Zinc alloy
    Loading capacity: 500kgs
    Tubing diameter:
    32mm square tubing
  • Model: F2022-F32
    Material: Zinc alloy
    Loading capacity: 500kgs
    Tubing diameter:
    32mm square tubing
  • Model: D1011-F32
    Material: Nylon
    Loading capacity: 100kgs
    Tubing diameter:
    32mm square tubing
  • Model: D2212-F38
    Material: Zinc alloy
    Loading capacity: 800kgs
    Tubing diameter:
    38mm square tubing
  • Model: F2112-F38
    Material: Zinc alloy
    Loading capacity: 800kgs
    Tubing diameter:
    38mm square tubing
  • Model: DG4213-F38
    Material: Steel
    Loading capacity: 300kgs
    Tubing diameter:
    38mm square tubing
  • Model: DG1117-F38
    Material: Stainless steel clad nylon
    Loading capacity: 100kgs
    Tubing diameter:
    38mm square tubing
  • Model: DG1111-F38
    Material: Plastic
    Loading capacity: 100kgs
    Tubing diameter:
    38mm square tubing
  • Model: DG1011-F38
    Material: Plastic
    Loading capacity: 80kgs
    Tubing diameter:
    38mm square tubing
  • Model: D1011-F38
    Material: Nylon
    Loading capacity: 100kgs
    Tubing diameter:
    38mm square tubing
  • Model: DL2212-F38
    Material: Stainless steel
    Loading capacity: 300kgs
    Tubing diameter:
    38mm square tubing
  • Model: D2212-F40
    Material: Zinc alloy
    Loading capacity: 800kgs
    Tubing diameter:
    40mm square tubing
  • Model: D2112-F40
    Material: Stainless steel clad plastic
    Loading capacity: 800kgs
    Tubing diameter:
    40mm square tubing
  • Model: D1211-F40
    Material: Plastic
    Loading capacity: 100kgs
    Tubing diameter:
    40mm square tubing
  • Model: DG1211-F40
    Material: Plastic
    Loading capacity: 100kgs
    Tubing diameter:
    40mm square tubing
  • Model: D2111-F51
    Material: Zinc alloy
    Loading capacity: 1000kgs
    Tubing diameter:
    51mm square tubing
  • Model: DG4213-F51
    Material: Steel
    Loading capacity: 300kgs
    Tubing diameter:
    51mm square tubing
  • Model: DG1011-F51
    Material: Plastic
    Loading capacity: 80kgs
    Tubing diameter:
    51mm square tubing
  • Model: F2121-Y38(50)
    Material: Zinc alloy
    Loading capacity: 800kgs
    Tubing diameter:
    38mm round tubing
  • Model: F2111-Y38(89)
    Material: Zinc alloy
    Loading capacity: 800kgs
    Tubing diameter:
    38mm round tubing
  • Model: F2121-Y41(89)
    Material: Zinc alloy
    Loading capacity: 800kgs
    Tubing diameter:
    41mm round tubing
  • Model: F2111-Y41(L)
    Material: Stainless steel
    Loading capacity: 300kgs
    Tubing diameter:
    41mm round tubing
  • Model: F2222-F38(50)
    Material: Zinc alloy
    Loading capacity: 800kgs
    Tubing diameter:
    40mm square tubing
  • Model: F2212-F38(89)
    Material: Zinc alloy
    Loading capacity: 800kgs
    Tubing diameter:
    38mm round tubing
  • Model: F2222-F40(50)
    Material: Zinc alloy
    Loading capacity: 800kgs
    Tubing diameter:
    40mm square tubing
  • Model: F2222-F40(89)
    Material: Zinc alloy
    Loading capacity: 800kgs
    Tubing diameter:
    40mm square tubing
  • Model: F2121-F51(89)
    Material: Zinc alloy
    Loading capacity: 1000kgs
    Tubing diameter:
    51mm square tubing
