Bullet Magnet

Request a Quote

View All: http://magnets-en.com/2-2-4-bullet-magnet.html

Permanent Magnetic Separator

Magnetic bullet separator for removing ferrous metal contamination from gravity fed or pneumatic conveying systems

Bullet magnets are ideal for capturing ferrous impurities, including iron filings and larger ferromagnetic particles, from dry materials conveyed by gravity or air transport systems. These magnetic separators are commonly used in industries such as flour milling, grain processing, plastic manufacturing, and the processing of kaolin or talc powders, where maintaining product purity is important.

Applications

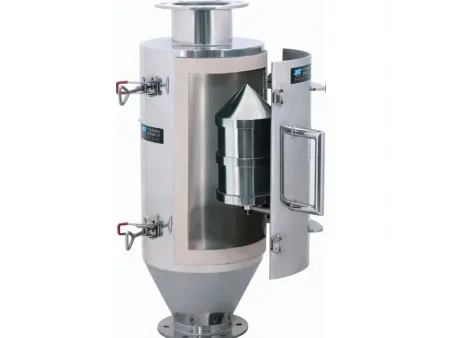

Each bullet magnet consists of a bullet-shaped cone magnet core housed in a stainless-steel casing, typically installed in conveying pipeline systems. These separators effectively capture ferrous contaminants, ensuring clean material and protecting downstream equipment from potential damage.

Specifications

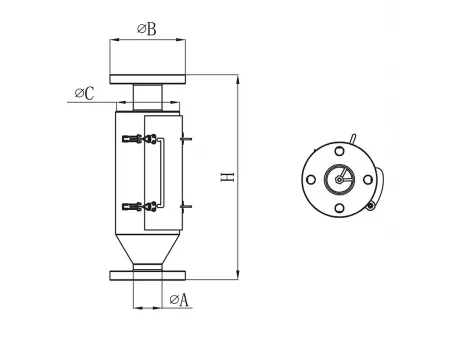

Model	Dimensions (mm)				Weight (kg)
Model	ØA	B	C	H	Weight (kg)
SWBM50	51	150	114	380	9
SWBM65	76	185	168	540	20
SWBM100	100	165	219	586	34
SWBM150	150	225	273	655	48.5
SWBM200	198	275	355	760	100
SWBM250	248	325	426	850	121
SWBM300	298	395	480	880	143
SWBM400	395	480	610	1100	227

Features

The bullet-shaped cone design ensures optimal interaction between the magnetic field and the material flow, increasing separation efficiency.
Magnetic field strengths are available from 3,000 GS to 15,000 GS, ensuring effective removal of ferromagnetic contaminants.
Cleaning is simple and quick: release the latch, open the stainless steel door, and wipe the magnetic core clean.
Custom designs are available to meet specific operational needs and material requirements.
