Cartoning Machine
Horizontal cartoner for automatic opening, insertion and sealing of cartons

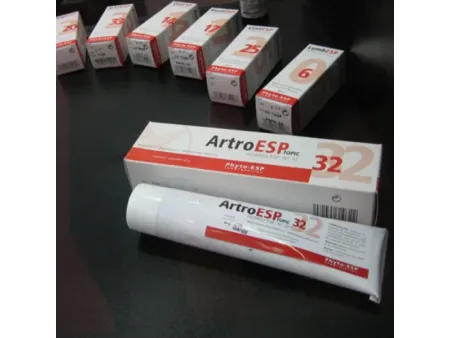

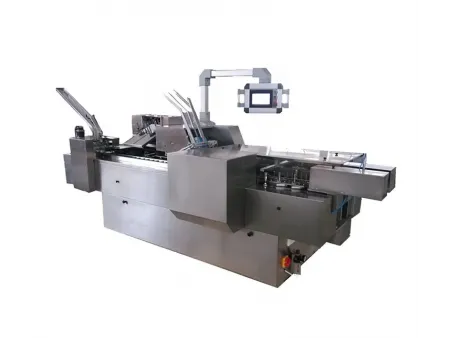

The horizontal cartoning machine offers the packaging process solutions with its automated features designed for high efficiency. Suitable for packaging blisters, tubes, ampules, and other related items, this machine integrates multiple functions including folding leaflets, opening boxes, inserting products, embossing batch numbers, and sealing boxes. Utilizing a frequency inverter for speed adjustment, a human-machine interface for operation, and PLC for precise control, it ensures secure and reliable packaging. Photoelectric sensors monitor each station to automatically detect and resolve issues, enhancing productivity. This versatile machine can operate independently or as part of a production line and can be equipped with a hot melt glue device for additional sealing options.

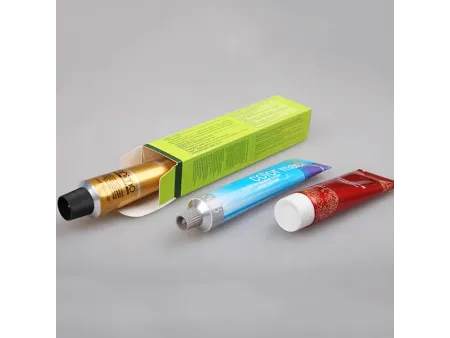

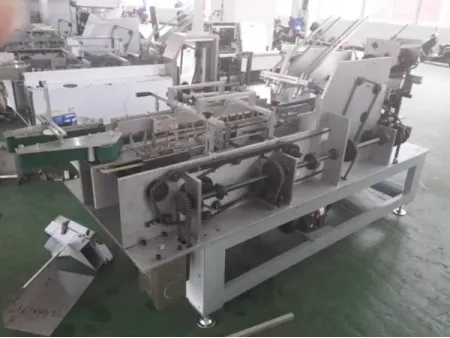

- Inner structure
- Loading

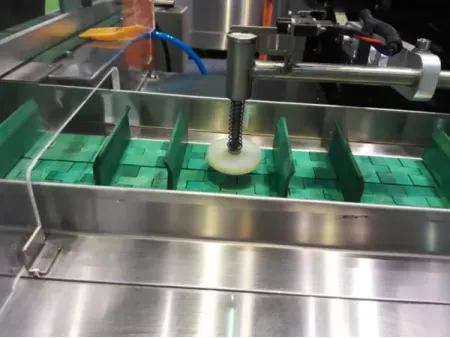

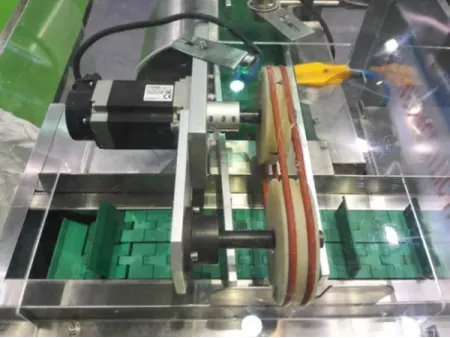

- Detection

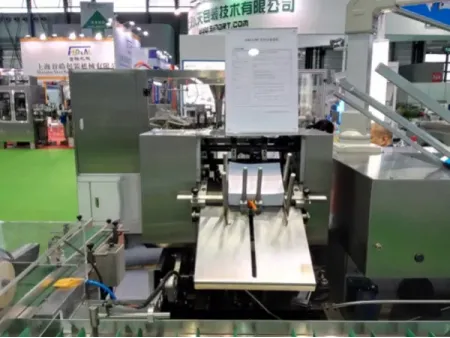

- Leaflet folder (Optional)

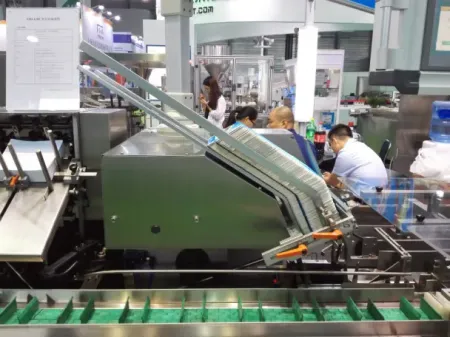

- Carton storage

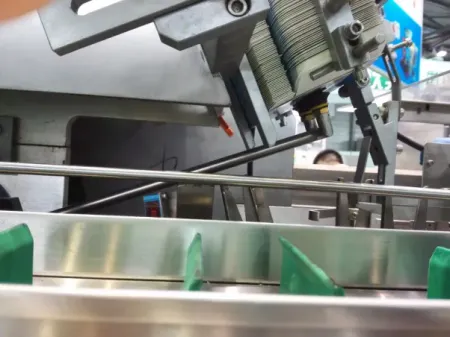

- Vacuum sucker

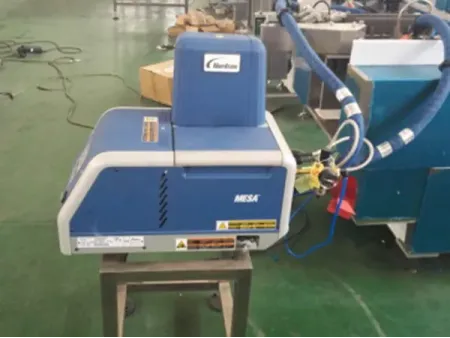

- Hot melt glue machine (Optional)

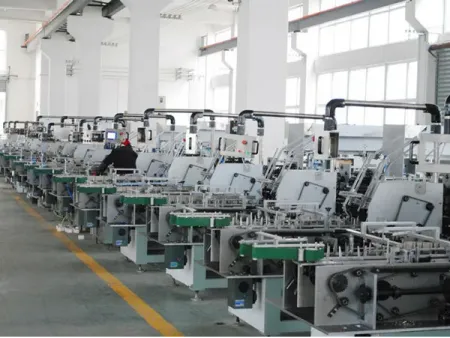

- Workshop
Model | |||
Production Capacity | 120 boxes/min | 200 boxes/min | 260 boxes/min |
Max. Carton Size | 200×120×70mm | 200×80×70mm | 200×80×70mm |
Min. Carton Size | 50×25×12mm | 65×25×15mm | 65×25×15mm |
Box Weight | 250-300 g/m2 | 250-300 g/m2 | 250-300 g/m2 |
Max. Leaflet Size | 260×180mm | 560×180mm | 560×180mm |
Max. Leaflet Size | 110×100mm | 110×100mm | 110×100mm |
Leaflet Weight | 55-65 g/m2 | 55-65 g/m2 | 55-65 g/m2 |
Air Consumption | 20 m³/h | 20 m³/h | 20 m³/h |
Total Power | 1.5 kW | 4.1 kW | 6.9 kW |
Voltage | 380V/50Hz/3Ph | 380V/50Hz/3Ph | 380V/50Hz/3Ph |
Overall Dimensions (L×W×H) | 3300×1350×1700mm | 4500×1500×1700mm | 4500×1500×1700mm |
Weight | 1500kg | 3000kg | 3000kg |
- Delivers exceptional packing performance with high-speed operations and consistently good quality
- Automates leaflet folding, box opening, product insertion, batch number embossing, and box closing
- Features a frequency inverter for speed control, human-machine interface for easy operation, and PLC integration for automated troubleshooting and precise control, providing adaptability to meet different operational needs and production scales.
- Can function as a standalone unit or be integrated into a production line for enhanced packaging processes
- Available with an optional hot melt glue device for box sealing, which can be combined for enhanced security and tamper-evident packaging.
