Centrifugal Pelletizer

Request a Quote

Website: http://powerhandling-en.com/2-5-centrifugal-pelletizer.html

Centrifugal pelletizing machine combining granulation and coating processes for converting fine powder materials into granular products

The centrifugal pelletizer integrates granulation and coating into a single continuous process. Fine powders are introduced into the processing chamber, where a fine mist of binder solution is sprayed to bind the particles together and initiate seed granulation. The resulting seed granules are dried and then reintroduced with additional powder and binder for layering and growth, forming dense, uniformly sized spherical pellets with excellent roundness. By spraying atomized coating liquid onto the finished pellets, a uniform and continuous film layer is formed, making this system ideal for producing coated microgranules and controlled-release pharmaceutical pellets.

Specifications

Model	SP-300	SP-400	SP-500	SP-750
Pellet diameter	0.2mm	0.5mm	2.0mm	5.0mm
Production capacity (blank pellets)	≤2.5kg/batch	≤10.0kg/batch	≤20.0kg/batch	≤50.0kg/batch
Enlargement ratio	≤2
Disc diameter	300mm	500mm	700mm	1000mm
Main motor power	1.5kW	3kW	7.5kW	11kW
Blower power	0.75kW	1.5kW	2.2kW	4kW
Exhaust fan power	0.55kW	0.75kW	1.5kW	2.2kW
Rotation speed	50–1400rpm	50–1400rpm	50–1200rpm	50–400rpm
Steam pressure	0.4–0.7MPa
Steam consumption	5kg/h	8kg/h	12kg/h	14kg/h
Compressed air pressure	0.4–0.6MPa
Compressed air consumption	0.5m³/min	0.7m³/min	0.9m³/min	1.1m³/min
Operating temperature	Room temperature to 100°C (automatic control)
Noise level	≤60dB
Overall dimensions (L×W×H)	760×700×1133mm	1100×860×1055mm	1400×1150×1359mm	1800×1300×1400mm
Net weight	300kg	450kg	600kg	1600kg

Finished Product Display

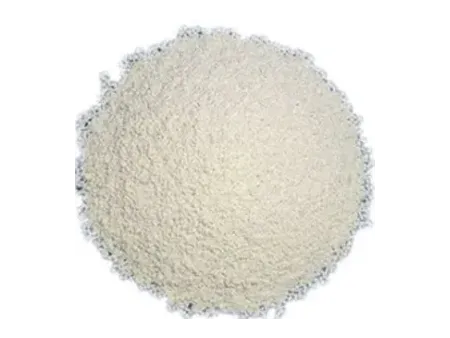

Sustained-release pellets
