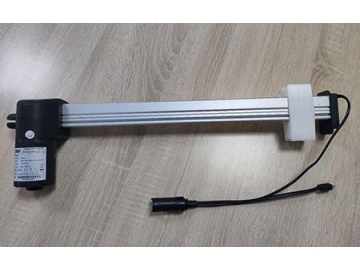

The U5B compact linear actuator is a simplified version of the . The size of the gear box, inner tube, outer tube and slider is smaller than the U5 model motorized linear actuator, making it applicable for use in electric furniture that requires a lighter load.

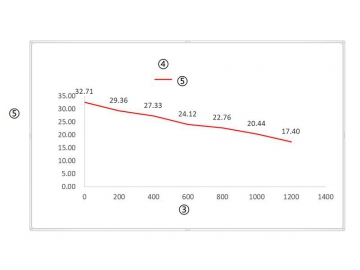

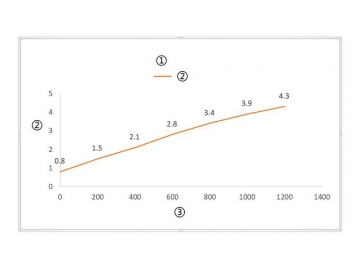

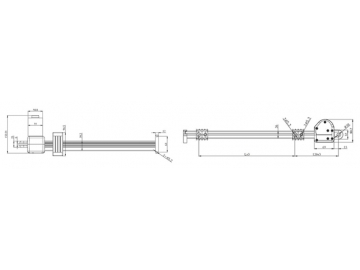

Appearance and size Curve graph ① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)
Code of Parameters| code | Rated laod (N) | Rated current (A) | Rated speed (mm/s) | |||
| Push | Pull | No-load(29VDC) | Full-load(29VDC) | |||
| Standard motor (2800RPM) | ||||||
| A | 1000 | 1000 | 4 | 26.5 | 13 | |
| B | 750 | 750 | 4.5 | 35 | 16 | |
| High Speed Motor(3400RPM) | ||||||
| C | 1000 | 1000 | 5 | 32 | 18 | |
| D | 750 | 750 | 4.5 | 43 | 20 | |
1=12V
2=24V（standard）1=wire from rear-end
2=wire from front-end
1=0.5m
2=1m
3=1.5m
4=2m
5=3m
6=0.35m
7=0.25m
C=Customization1=Tined leads
2=01pin(standard,0.5m)
3=Y Cable，01pin male, Din 5pin female(0.5m)
4=V Cable，01pin male, Din 5pin female(0.35m)
5=E Cable,01pin male,01pin female,Din 5pin female
6=Three trailers,01pin male,01pin female×2,Din 5pin female
C=Customization
1=no
2=plastic foundation
C=Customization1=Plastic clevis, slot 6.2mm, hole Φ10.2mm(standard)
2=no
3=foundation without rear-end
C=Customization
1=standard slider
2=trunnion slider
C=Customization
