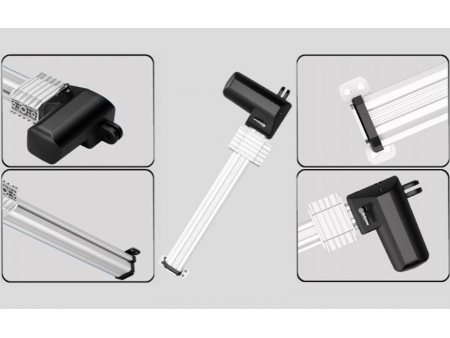

The U5 model motorized linear actuator is a slipper type linear actuator, which saves space and is easy to install. It is a motorized linear actuator, applicable for massage chairs, electric sofas, electric beds, and smart furniture. It is made of an aluminum alloy, and the slider and gear box are made using a plastic material that produces very little noise during operation. The maximum push force reaches up to 6,000N.
The slipper type linear actuator is easily installed with a stroke that is less than the length of the actuator body, which makes it ideal for use in electric furniture.
The U5 motorized linear actuator is equipped with a universal power adapter and fashionable manual controller.
Parameters- Voltage: 12/24V DC
- Max load capacity: 6000N (push), 3000N (pull)
- No-load velocity: 5.4~58mm/s
- Full-load velocity: 2.9~30mm/s
- Noise level: less than 52dB
- The linear actuator features a large maximum load capacity, a high speed, a high positioning accuracy, and an excellent self-locking performance.
- It is equipped with a built-in limit switch. The motor will automatically turn off at the end of each stroke.
- It features a small size, large maximum load capacity, and low weight.
- This product is designed with a strong and durable structure.
- It carries out a variety of functions, including lift, drop, tilt, and rotate.
- A manual controller and power source is optional.
- This linear actuator is widely used in electric massage sofas, electric beds, massage chairs and other electric or motorized furniture.
Curve graph
① Load VS Curent; ② Current (A); ③ Load (N); ④ Load VS Speed; ⑤ Speed (mm/s)
Code of Parameterscode | Rated laod(N) | Rated current(A) | Rated speed(mm/s) | ||
Push | Pull | No-load(32VDC) | Full-load(24VDC) | ||
Standard motor (2600RPM) | |||||
A | 6000 | 3000 | 5 | 5.4 | 2.9 |
B | 5000 | 3000 | 5 | 7.1 | 3.9 |
C | 3000 | 3000 | 4.5 | 11 | 6.2 |
D | 2500 | 2500 | 4 | 15.8 | 7.8 |
E | 2000 | 2000 | 5 | 22.5 | 13 |
F | 1200 | 1200 | 4 | 33 | 19 |
G | 700 | 700 | 4.5 | 44.5 | 23.6 |
High Speed Motor(3400RPM) | |||||
H | 6000 | 3000 | 5 | 7 | 3.9 |
I | 5000 | 3000 | 5 | 9.2 | 4.6 |
J | 3000 | 3000 | 4.8 | 14.6 | 8.2 |
K | 2500 | 2500 | 4.5 | 21 | 11 |
L | 2000 | 2000 | 4.5 | 29.2 | 16 |
M | 1200 | 1200 | 5 | 43.5 | 23 |
N | 700 | 700 | 4.5 | 58 | 30 |
Comment: when the voltage changes from 24V to 12V, the current will be doubled.
Customization parameter1=12V
2=24V(standard)1=Plastic clevis, slot 6.2mm, hole Φ10.2mm
C=Customization
1=no
2=L type dead plate
C=Customization1=straight
2=coiled
1=0.5m
2=1m
3=1.5m
4=2m
5=3m
C=Customization1=Switches in both end off to stop
2=Switches in both end off to stop and a third one off to output signal
3=Switches in both end off to output signal
4=Both end and a third one for signal output
C=Customization
1=Tined leads
2=01 pin
3=Y cable( 01pin, Din 5 pin)
C=Customization1=no
3=One four-and-a-half-cycle torsional spring
2=One three-cycle torsional spring
4=motor brake
