Die Cutting Foil Stamping Press 1050-F type Hot Foil Stamping Cutting Line
Request a Quote
Hot Foil Stamping Equipment Manufacturer
Description
The die cutting foil stamping press 1050-F type hot foil stamping cutting line uses a longitudinal foil pull system for large-format die-cutting and two-colored and multicolored pattern foil stamping of different papers, carton boxes, carton boards and corrugated boards. Among them, the maximum speed of foil stamping can reach up to 6000 sheets per hour.
This foil stamping press has outstanding resistance to high temperature, meaning it can perform hot stamping at 200℃. Besides, it can also cool the high-temperature boards after hot stamping.
Processed materials- Paper
- Carbon board
- Corrugated board
Processed materials
| Paper | 80 g/m² |
| Maximum carbon board | 2000 g/m² |
| Maximum corrugated board | 4 mm |
| Min. Sheet size | 350 x 400 mm |
| Max. Sheet size | 740 x 1050 mm |
| Speed | 7500 sheets/h |
| Max. Foil stamping speed | 6000 sheets/h |
| Die-cutting force | 300 Ton |
| Max. stamping size | 720 x 1020 mm |
| Max. Die-cutting size | 730 x 1040 mm |
| Heating zones | 12 units |
| Max. temperature | 200 ºC |
| Foil length | 120 to 1200 m |
| Foil width | 50 to 1020 mm |
| Web advance shafts | 4 |
| Feeder | 1650 mm |
| Max. Feeder with non-stop | 1270 mm |
| Delivery | 1300 mm |
| L x W x H | 7.08 x4.28x2.55m |
| Weight | 18.5 Ton |
| Power | 35 kW |
| Compressed air | 6 bar |
| Air compressor capacity | 30 m³/h |
| Air tank capacity | 155 L |
-

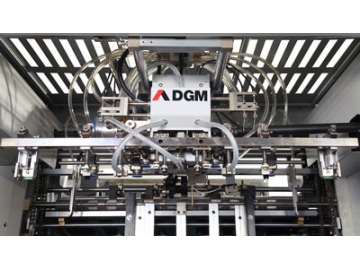

Feeder section
- Continuous feeder without interruptions, feeding through pallets or carts
- Material loading by pallets or carts
- Designed with 4 lifting suckers and 4 forwarding suckers, ensuring smooth feeding of cardboard and corrugated board with different thicknesses in an efficient, reliable, and precise manner
- Double sheet detector
-

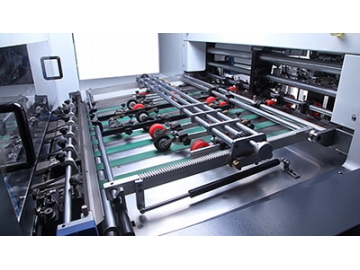

Register table
- Quick changeovers, easy adjustment for sheet size
- The sheet alignment on the side can be easily made on the register table with guide rails.
- 4 front register lays, independently adjustable
-

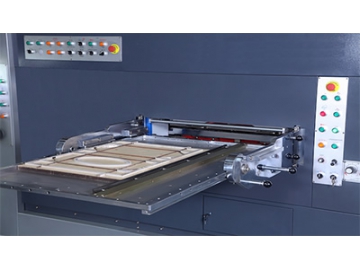

Press section
- The die cutter chase is designed with a central positioning system for fast positioning of the die.
- Cutting die with 5 mm thickness
- The pressure can be easily adjusted through the touch screen. Adopting over-pressure protection avoids any damage in the press.
- Available with manual or automatic lubrication system.
- 7 light weight gripper bars
- Changer-over bracket for cutting chase and honeycomb chase.
- Pneumatic lock and release system for cutting chase and honeycomb chase.
-
Foil stamping system
- The heating system features 12 temperature zones with individual temperature control.
- Foil break detector
- Foil fasten device
- Foil unwind device
- Honeycomb chase
-

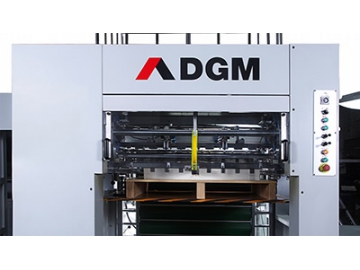

Delivery section
- Automatic delivery with non-stop curtain
-

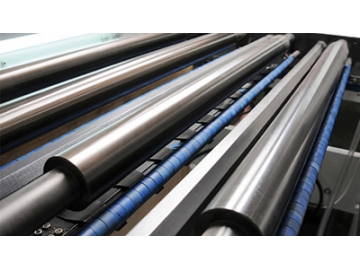

Longitudinal foil feeding unit
- 4 foil rolls in a high precision longitudinal foil feeding system
- Air blast foil separation system
- Foil tensioning system
