Description

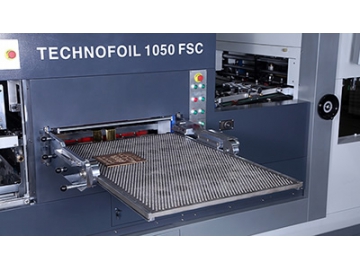

The die cutting foil stamping press1050-FSC type hot foil stamping press combines the press section, foil stamping system and stripping section of this type of equipment all in one machine. This allows the machine to finish one-time paper processing for foil-stamping, die cutting, stripping and final collecting the papers in piles. And the highest foil stamping speed can reach 6000 sheets per hour.
This die cutting and foil stamping presses is equipped with a transverse and longitudinal foil pull system, making it extremely suitable for fine and multilayer pattern stamping and die-cutting. This machine features outstanding resistance to elevated temperatures, and is capable of hot foil stamping under 200℃. It can also cool the high-temperature carton board after hot stamping.
Processed materials
Paper
Carbon board
Corrugated board
Parameters Processed materials | Paper | 80 g/m² |
| Maximum carbon board | 2000 g/m² |
| Maximum corrugated board | 4 mm |
Capability | Min. Sheet size | 350 x 400 mm |
| Max. Sheet size | 740 x 1050 mm |
| Speed | 7500 sheets/h |
| Max. Foil stamping speed | 6000 sheets/h |
| Die-cutting force | 300 Ton |
Converting | Max. Longitudinal stamping size | 720 x 1020 mm |
| Max. transversal stamping size | 580 x 1020 mm |
| Max. Die-cutting size | 730 x 1040 mm |
Heating system | Heating zones | 12 units |
| Max. temperature | 200 ºC |
Foil equipment | Foil length | 120 to 1200 m |
| Foil width | 50 to 1020 mm (Longitudinal stamping) |
| Foil width | 50 to 630 mm (transversal stamping) |
| Web advance shafts | 3 (longitudinal stamping) |
| Web advance shafts | 2 (transversal stamping) |
Pile height | Feeder | 1650 mm |
| Max. Feeder with non-stop | 1270 mm |
| Delivery | 1300 mm |
Dimensions and Weight | L x W x H | 7.08 x5.22x3.26m |
| Weight | 21 Ton |
Installation | Power | 25 kW |
| Compressed air | 6 bar |
| Air compressor capacity | 30 m³/h |
| Air tank capacity | 155 L |
| Air compressor power | 3.5 kW |
Die Cutting and Foil Stamping Presses Components -

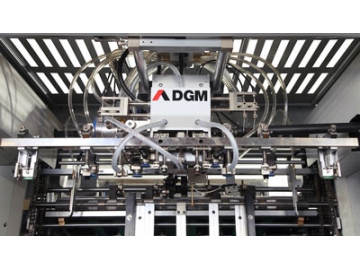

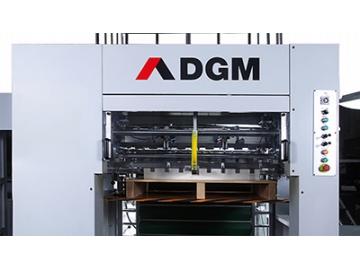

Feeder section
- Continuous feeder without interruptions, feeding through pallets or carts
- Material loading by pallets or carts
- Designed with 4 lifting suckers and 4 forwarding suckers, ensuring smooth feeding of cardboard and corrugated board with different thicknesses in an efficient, reliable, and precise manner
- Double sheet detector
-

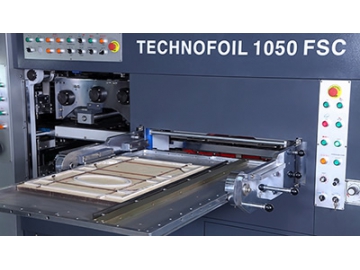

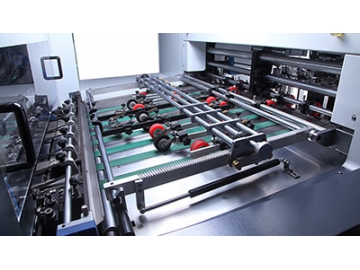

Register table
- Quick changeovers, easy adjustment for sheet size
- The sheet alignment on the side can be easily made on the register table with guide rails.
- 4 front register lays, independently adjustable
-
Press section
- The die cutter chase is designed with a central positioning system for fast positioning of the die.
- Cutting die with 5 mm thickness
- The pressure can be easily adjusted through the touch screen. Adopting over-pressure protection avoids any damage in the press.
- Available with manual or automatic lubrication system.

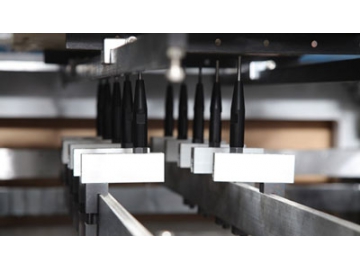

- 7 light weight gripper bars
- Changer-over bracket for cutting chase and honeycomb chase.
- Pneumatic lock and release system for cutting chase and honeycomb chase.
-

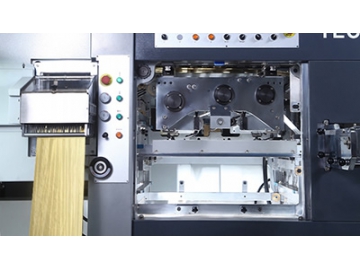

Foil stamping system
- The heating system features 12 temperature zones with individual temperature control.
- Foil break detector
- Foil fasten device
- Foil unwind device
- Honeycomb chase
-
Stripping section
- Optimized cam movement curve guarantees stripping stability and accuracy.
- Quick-locking and central positioning system assures the waste is cleared in a precise and quick manner.
-
Delivery section
- Automatic delivery with non-stop curtain
-

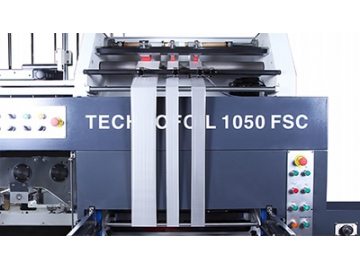

Motorized movable longitudinal foil system
- 3 foil rollers in the longitudinal foil feeding system
- Easy to remove and install
- Can be used as a foil stamping machine with 3 longitudinal plus 2 transversal shafts or a regular die-cutter with stripping system.
- Air blast foil separation system
- Foil tensioning system
-
Transverse foil stamping system
- 2 foil rolls in a high precision transversal foil feeding system.
