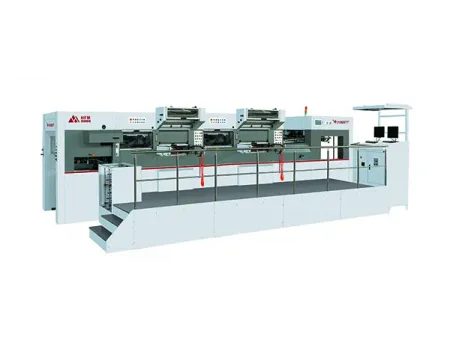

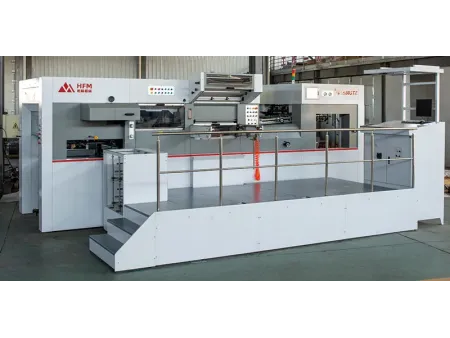

This model features a dual-station design and is equipped with a longitudinal 5-axis holographic foil feeding servo system, which increases the stamping speed and boosts productivity.

  • Cutting Mode: Heavy duty flatbed die cutting and foil stamping
  • Max. Sheet Size (L×W) (mm): 1060×760
  • Min. Sheet Size (L×W) (mm): 390×295
  • Max. Die Cutting Size (L×W) (mm): 1055×750
  • Max. Foil Stamping Size (L×W) (mm): 1050×745
  • Gripper Margin (mm): 8-17
  • Max. Working Pressure (t): 600 (for both 1st and 2nd unit)
  • Sheet Weight (g/m²): 100-2000
  • Corrugated Board Thickness (mm): ≤4
  • Max. Speed (sheets/h): 6000
  • Common Foil Stamping Speed (sheets/h): 5500
  • Common Foil Stamping Accuracy (mm): ≤±0.075
  • Servo System for Foil Feeding: Longitudinal 5shafts (holographic stamping) Transverse 2 shafts
  • Max. Diameter of Foil Roll (mm): Longitudinal Ø250 Transverse Ø200
  • Number of Heating Zone: 20 (20 individual zones)
  • Total Power (kW): 100
  • Net Weight (t): Approx. 42
  • Dimensions (L×W×H) (mm): 10162×5200×2599 (including pre-stacking height)
  • Cutting Mode: Heavy duty flatbed die cutting and foil stamping
  • Max. Sheet Size (L×W) (mm): 1060×760
  • Min. Sheet Size (L×W) (mm): 390×295 (servo feeder is optional, with minimum sheet size of 390×280)
  • Max. Die Cutting Size (L×W) (mm): 1055×750
  • Max. Foil Stamping Size (L×W) (mm): 1050×745
  • Gripper Margin (mm): 8-17
  • Max. Working Pressure (t): 600
  • Sheet Weight (g/m²): 100-2000
  • Corrugated Board Thickness (mm): ≤4
  • Max. Speed (sheets/h): 7500
  • Common Foil Stamping Speed (sheets/h): 7000
  • Common Foil Stamping Accuracy (mm): ≤±0.075
  • Servo System for Foil Feeding: Longitudinal 3 shafts Transverse 2 shafts
  • Max. Diameter of Foil Roll (mm): Longitudinal Ø250 Transverse Ø200
  • Number of Heating Zone: 20
  • Total Power (kW): 53
  • Net Weight (t): 20.5
  • Dimensions (L×W×H) (mm): 8028×4802×2559
  • Cutting Mode: Heavy duty flatbed die cutting and foil stamping
  • Max. Sheet Size (L×W) (mm): 1450×1100
  • Min. Sheet Size (L×W) (mm): 590×450
  • Max. Die Cutting Size (L×W) (mm): 1445×1090
  • Max. Foil Stamping Size (L×W) (mm): 1440×1085
  • Gripper Margin (mm): 8-17
  • Max. Working Pressure (t): 700
  • Sheet Weight (g/m²): 100-2000
  • Corrugated Board Thickness (mm): ≤6
  • Max. Speed (sheets/h): 5500
  • Common Foil Stamping Speed (sheets/h): 5000
  • Common Foil Stamping Accuracy (mm): ≤±0.1
  • Servo System for Foil Feeding: Longitudinal 3 shafts Transverse 2 shafts
  • Max. Diameter of Foil Roll (mm): Longitudinal Ø250 Transverse Ø200
  • Number of Heating Zone: 20
  • Total Power (kW): 89
  • Net Weight (t): 35
  • Dimensions (L×W×H) (mm): 10064×6215×2670
For detailed dimensional drawings of our machines, please refer to the specific model number. We offer a range of sizes to meet your production needs:

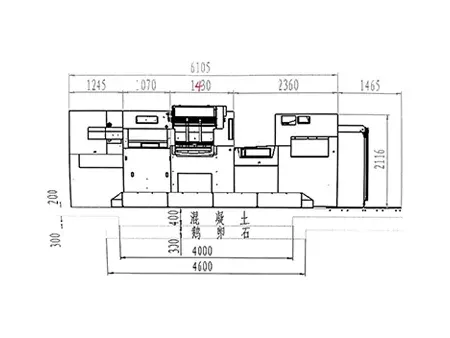

  • 1060 Dimensional Drawing

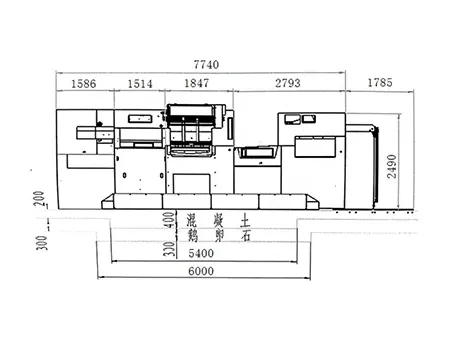

  • 1450 Dimensional Drawing

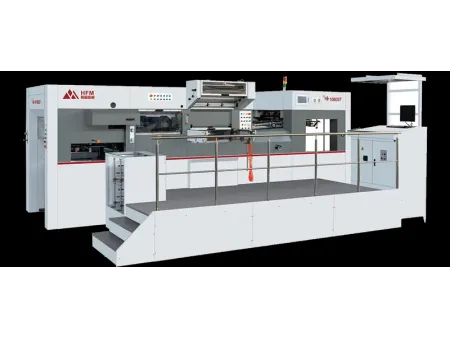

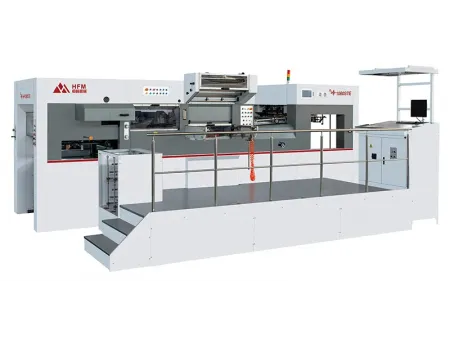

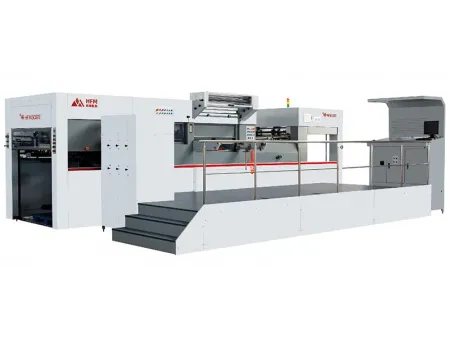

The HFM automatic flatbed die cutting & foil stamping machine seamlessly integrates heavy-duty die cutting with premium foil stamping. It first imprints intricate metallic designs onto the surface of thick, rigid materials and then utilizes high pressure to complete the die-cutting process. This machine plays a crucial role in the production of high-end gift boxes and luxury jewelry packaging, creating products that are both beautiful and robust.

Developed through years of design and innovation, this machine offers both longitudinal and transverse foil stamping capabilities. It is widely used in the packaging industry, particularly for die cutting, foil stamping, creasing, and cold embossing of cartons, boxes, and labels. It can handle various high-quality printed materials, such as cigarette packs, wine boxes, gift boxes, small appliance packaging, and cosmetic boxes. It supports both standard and holographic anti-counterfeiting foil stamping, achieving a strong three-dimensional effect and exquisite printing results.

Applicable Materials
  • Paperboard
  • Corrugated Cardboard
  • PVC Sheet
Applications
This machine is ideally suited for producing cosmetic boxes, cigarette boxes, wine boxes, tea boxes, pharmaceutical packaging, food packaging, gift boxes, and small appliance boxes.
    Cosmetic Boxes
    Cigarette Boxes
    Wine Boxes
    Wine Boxes
    Pharmaceutical Packaging
    Food Packaging
    Gift Boxes
Key Functions
    1. Pneumatic Quick-Lock for Die Cutting Chase Achieves rapid locking via pneumatic devices, ensuring stability and precision during both die cutting and foil stamping processes.
    1. Non-stop Sheet Feeding and Collection Enables continuous, automatic sheet feeding and collection to maximize production efficiency and minimize downtime.
    1. Pneumatic Sampling Facilitates real-time sample checks during production without halting the process, ensuring consistent product quality.
    1. Electric Pressure Adjustment Automatically adjusts pressure for each operation based on the material, ensuring precise die cutting and foil stamping.
    1. Rapid Foil Stamping Function Supports high-speed foil stamping, making it particularly suitable for large-scale production.
    1. Automatic Lubricating System Ensures smooth operation of all moving parts by reducing friction and extending equipment life.
    1. Complete Automation Integrates the sheet feeding, die cutting, foil stamping, and sheet collection processes into a fully automated workflow.
    1. Automatic Fault Detection and Non-stop Sampling Maintains continuous operation by detecting errors automatically and allowing sampling without interruption.
    1. High Die Cutting Pressure with Precise Alignment Guarantees high-quality production with excellent registration accuracy.
    1. Enhanced Safety: Features pneumatic clutches, braking devices, and multiple safety detection systems to safeguard both operators and equipment.
    1. Superior Foil Stamping Quality Produces foil patterns and text with strong three-dimensionality and clear, crisp edges—ideal for high-end packaging where appearance is critical.
Configurations
    1. Feeder

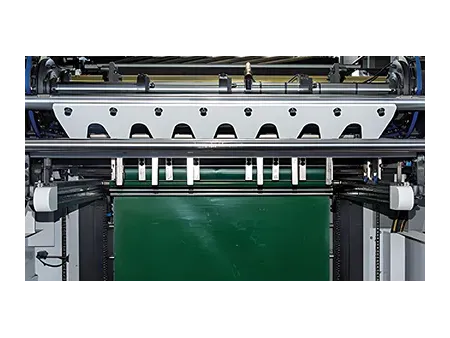

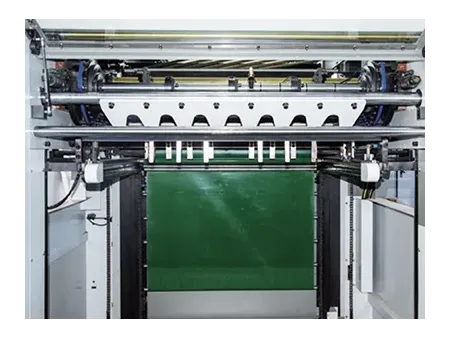

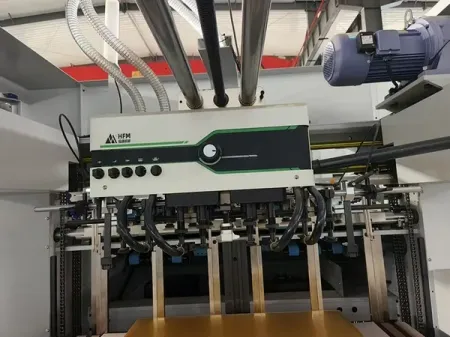

      Equipped with a high-precision four-suction, five-feed feeder head, this system adapts to thin paper, paperboard, and corrugated cardboard, ensuring consistent feeding even at high speeds. A gantry-type pre-feed mechanism alternates between the main and auxiliary feed tables to enable continuous, non-stop production.

    1. Feeding Structure

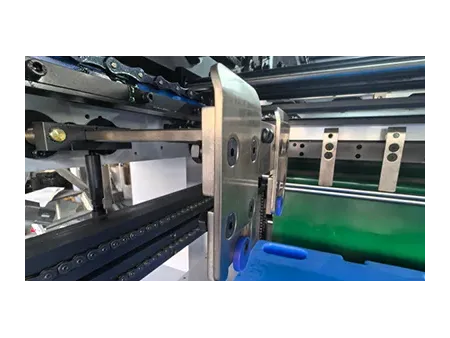

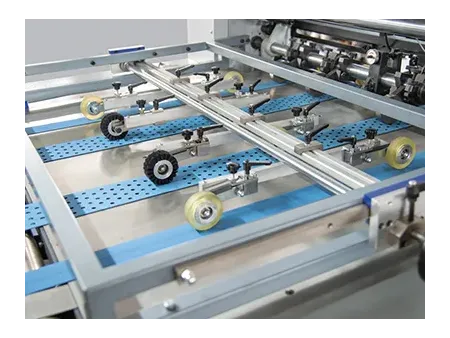

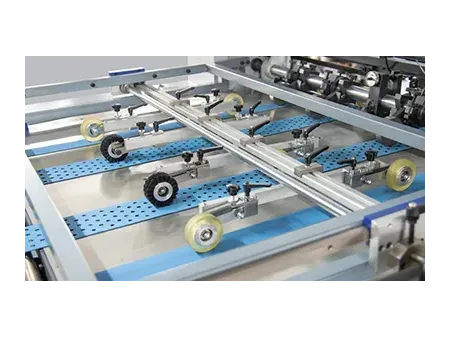

      Utilizes a dual-purpose push-pull side lay system for stable sheet positioning at high speeds. The quickly adjustable feeding wheels further improve work efficiency. An optional vacuum feeding system can be added for enhanced stability when processing thin paper.

    1. Micro-Adjustment Mechanism

      Features a steel plate micro-adjustment mechanism that facilitates rapid alignment of the bottom mold, thereby increasing production efficiency and ensuring precise die cutting.

    1. Foil Stamping/Die Cutting Unit

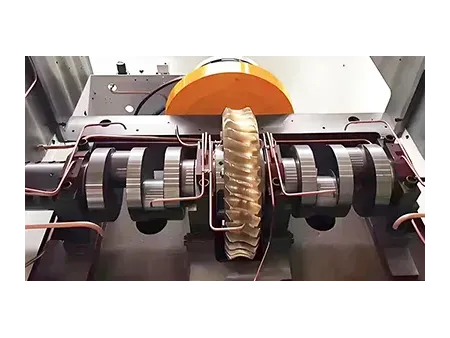

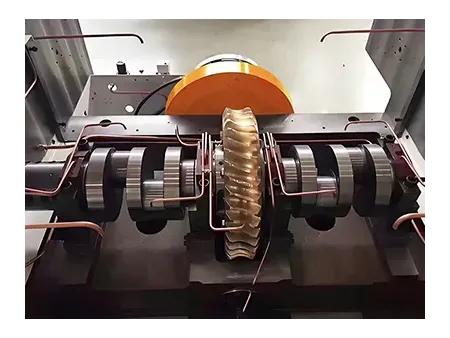

      Incorporates a deformation-resistant, heat-resistant cast iron honeycomb plate and a gap-free ball screw pressure adjustment system. With 20 independently controlled heating zones, the unit maintains an even and rapid temperature response to ensure optimal foil stamping and die cutting performance.

    1. Longitudinal Foil Feeding System

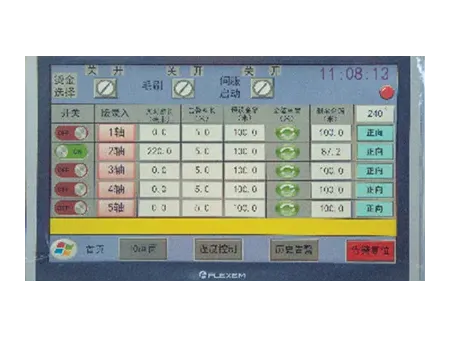

      Employs a three-axis high-position foil feeding system with an extendable, retractable foil rack for quick foil replacement. A two-axis servo foil feeding system, complete with a tear detection system, ensures continuous and accurate foil delivery.

    1. Longitudinal Aluminum Foil Rewinding System

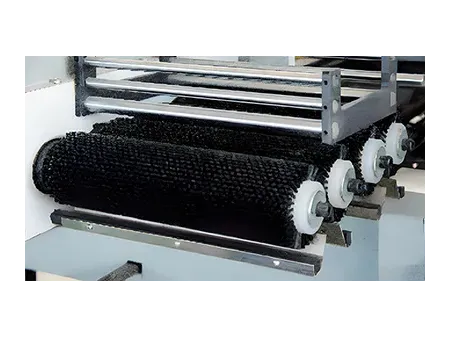

      Features an external longitudinal roller collection system designed to facilitate efficient scrap recovery and reuse of aluminum foil.

    1. Delivery Station

      Uses a brush and rear air-blowing system to maintain stable sheet alignment. It is equipped with an electric auxiliary collection system for continuous production and a pneumatic sampling function for real-time quality checks. An optional counting and marking (tab insertion) feature is available for enhanced operational efficiency.

    1. Foil Stamping Control System

      An intelligent computing system automatically calculates skip-step schemes for different products to maximize aluminum foil savings and ensure consistent foil stamping quality.

Consumables

To maintain optimal performance and longevity of your machine, we recommend using genuine HFM consumables. We offer a complete range of high-quality replacement parts: Stripping pin, sliding plate, lower pin locking block, rubber wheel, timing belt, brush wheel, gripper bar, movable gripper
