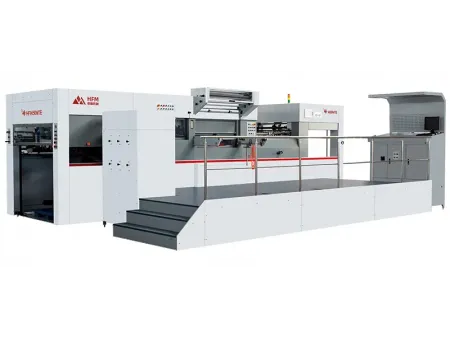

Request a Quote
    1. Max. Die Cutting Size (L×W) 1055×750mm
    1. Corrugated Board Thickness ≤4mm
    1. Max. Speed 7500 sheets/h
    1. Max. Working Pressure 300t
Specifications Dimensional Drawings
  • Cutting Mode: Flatbed die cutting and foil stamping
  • Max. Sheet Size (L×W) (mm): 1060×760
  • Min. Sheet Size (L×W) (mm): 390×295 (servo feeder is optional, with minimum sheet size of 390×280)
  • Max. Die Cutting Size (L×W) (mm): 1055×750
  • Max. Foil Stamping Size (L×W) (mm): 1050×745
  • Sheet Weight (g/m²): 100~2000
  • Corrugated Board Thickness (mm): ≤4
  • Max. Speed (sheets/h): 7500
  • Common Foil Stamping Speed (sheets/h): 7000
  • Common Foil Stamping Accuracy (mm): ≤±0.075
  • Servo System for Foil Feeding: Longitudinal 3 shafts Transversal 2 shafts
  • Max. Diameter of Foil Roll (mm): Longitudinal Ø250 Transversal Ø200
  • Number of Heating Zone: 20
  • Gripper Margin (mm): 8-17
  • Max. Working Pressure (t): 300
  • Total Power (kW): 46
  • Net Weight (t): 20.5
  • Dimensions (L×W×H) (mm): 8028×4802 (with pre-setting table)×2559
  • Cutting Mode: Flatbed die cutting and foil stamping
  • Max. Sheet Size (L×W) (mm): 1060×760
  • Min. Sheet Size (L×W) (mm): 390×295 (servo feeder is optional, with minimum sheet size of 390×280)
  • Max. Die Cutting Size (L×W) (mm): 1055×750
  • Max. Foil Stamping Size (L×W) (mm): 1050×745
  • Sheet Weight (g/m²): 100~2000
  • Corrugated Board Thickness (mm): ≤4
  • Max. Speed (sheets/h): 7500
  • Common Foil Stamping Speed (sheets/h): 7000
  • Common Foil Stamping Accuracy (mm): ≤±0.075
  • Holographic Stamping Speed (sheets/h): 5500
  • Holographic Stamping Accuracy (mm): ≤±0.2
  • Servo System for Foil Feeding: Longitudinal 3 shafts Transversal 2 shafts
  • Max. Diameter of Foil Roll (mm): Longitudinal Ø250 Transversal Ø200
  • Number of Heating Zone: 20
  • Gripper Margin (mm): 8-17
  • Max. Working Pressure (t): 300
  • Total Power (kW): 46
  • Net Weight (t): 20.5
  • Dimensions (L×W×H) (mm): 8028×4802(with pre-setting table)×2559
  • Cutting Mode: Flatbed die cutting and foil stamping
  • Max. Sheet Size (L×W) (mm): 1320×1100
  • Min. Sheet Size (L×W) (mm): 590×450
  • Max. Die Cutting Size (L×W) (mm): 1315×1090
  • Max. Foil Stamping Size (L×W) (mm): 1310×1085
  • Sheet Weight (g/m²): 100~2000
  • Corrugated Board Thickness (mm): ≤6
  • Max. Speed (sheets/h): 6000
  • Common Foil Stamping Speed (sheets/h): 5500
  • Common Foil Stamping Accuracy (mm): ≤±0.1
  • Servo System for Foil Feeding: Longitudinal 3 shafts Transversal 2 shafts
  • Max. Diameter of Foil Roll (mm): Longitudinal Ø250 Transversal Ø200
  • Number of Heating Zone: 20
  • Gripper Margin (mm): 8-17
  • Max. Working Pressure (t): 450
  • Total Power (kW): 85
  • Net Weight (t): 29
  • Dimensions (L×W×H) (mm): 10064×5690×2670
  • Cutting Mode: Flatbed die cutting and foil stamping
  • Max. Sheet Size (L×W) (mm): 1450×1100
  • Min. Sheet Size (L×W) (mm): 590×450
  • Max. Die Cutting Size (L×W) (mm): 1445×1090
  • Max. Foil Stamping Size (L×W) (mm): 1440×1085
  • Sheet Weight (g/m²): 100~2000
  • Corrugated Board Thickness (mm): ≤6
  • Max. Speed (sheets/h): 5500
  • Common Foil Stamping Speed (sheets/h): 5000
  • Common Foil Stamping Accuracy (mm): ≤±0.1
  • Servo System for Foil Feeding: Longitudinal 3 shafts Transversal 2 shafts
  • Max. Diameter of Foil Roll (mm): Longitudinal Ø250 Transversal Ø200
  • Number of Heating Zone: 20
  • Gripper Margin (mm): 8-17
  • Max. Working Pressure (t): 450
  • Total Power (kW): 85
  • Net Weight (t): 30.5
  • Dimensions (L×W×H) (mm): 10064×6065×2670
  • Cutting Mode: Flatbed die cutting and foil stamping
  • Max. Sheet Size (L×W) (mm): 1450×1100
  • Min. Sheet Size (L×W) (mm): 590×450
  • Max. Die Cutting Size (L×W) (mm): 1445×1090
  • Max. Foil Stamping Size (L×W) (mm): 1440×1085
  • Sheet Weight (g/m²): 90~2000
  • Corrugated Board Thickness (mm): ≤6
  • Max. Speed (sheets/h): 5500
  • Common Foil Stamping Speed (sheets/h): 5000
  • Common Foil Stamping Accuracy (mm): ≤±0.1
  • Servo System for Foil Feeding: Longitudinal 3 shafts Transversal 2 shafts
  • Max. Diameter of Foil Roll (mm): Longitudinal Ø250 Transversal Ø200
  • Number of Heating Zone: 20
  • Gripper Margin (mm): 8-17
  • Max. Working Pressure (t): 400
  • Total Power (kW): 85
  • Net Weight (t): 35
  • Dimensions (L×W×H) (mm): 10064×7585×2676
For detailed dimensional drawings of our machines, please refer to the specific model number. We offer a range of sizes to meet your production needs:
  • 1060 Dimensional Drawing
  • 1300 Dimensional Drawing
  • 1450 Dimensional Drawing
  • 1450 MTF Dimensional Drawing

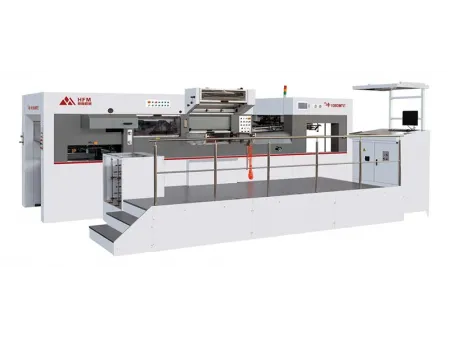

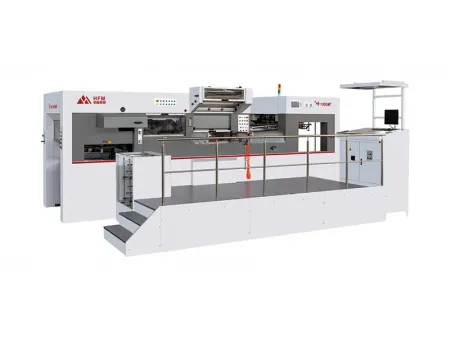

The automatic flatbed die cutting and foil stamping machine seamlessly integrates foil stamping and die cutting processes. Developed from years of design experience, this next-generation machine offers both longitudinal and transverse foil stamping functions. With a maximum die cutting range of 1440 mm × 1085 mm, it is engineered for the packaging finishing industry—ideal for producing carton boxes, packaging, and labels. Whether you’re manufacturing cigarette boxes, wine boxes, gift boxes, small household appliance boxes, or cosmetics boxes, this machine delivers both standard foil stamping and embossing to achieve a rich, three-dimensional, and visually striking finish.

Applicable Materials
  • Paperboard
  • Corrugated Cardboard
  • PVC Sheet
Applications
This machine is ideal for creating high-quality cosmetic boxes, cigarette boxes, wine boxes, tea boxes, pharmaceutical packaging, food packaging, gift boxes, and small household appliance boxes.
    General Goods
    General Goods
    Cigarette Boxes
    Cigarette Boxes
    Cosmetic Boxes
    Cigarette Boxes
    Pharmaceutical Packaging
    Food Packaging
    Gift Boxes
Key Functions
    1. Pneumatic Quick-Lock for Die Cutting Chase Achieves rapid locking through pneumatic devices, ensuring stability and precision during both die cutting and foil stamping.
    1. Non-stop Sheet Feeding and Collection Enables continuous, automatic sheet feeding and collection, reducing downtime and boosting production efficiency.
    1. Pneumatic Sampling Allows sample checks during production without interrupting operations, ensuring consistent product quality.
    1. Electric Pressure Adjustment Automatically adjusts pressure based on material type to maintain processing accuracy.
    1. Rapid Foil Stamping Function Supports high-speed foil stamping, making it ideal for large-volume production.

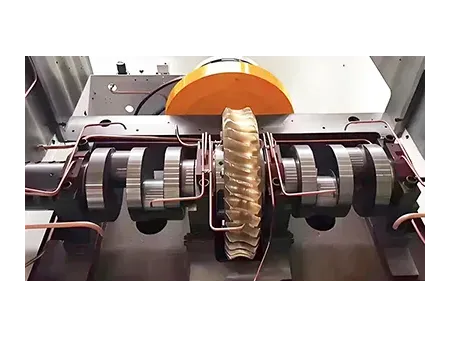

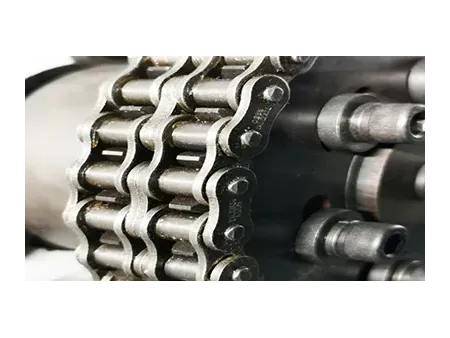

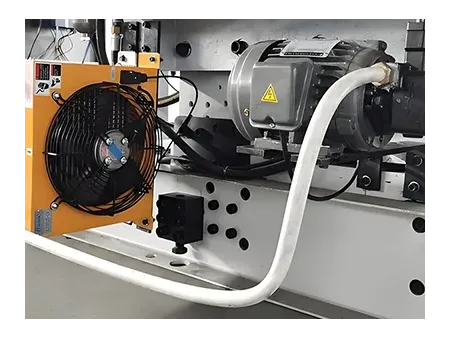

    1. Automatic Lubricating System Ensures smooth operation of all moving parts, minimizes friction, and extends equipment lifespan.
Configurations
    1. Feeder

      The high-precision, four-suction, five-feed rotary feeder head effortlessly handles a diverse range of materials, from delicate thin paper to robust paperboard and corrugated cardboard. This ensures smooth and consistent sheet feeding, even at high speeds. The integrated, gantry-style pre-loading system, featuring alternating main and auxiliary feed tables, guarantees uninterrupted, non-stop production.

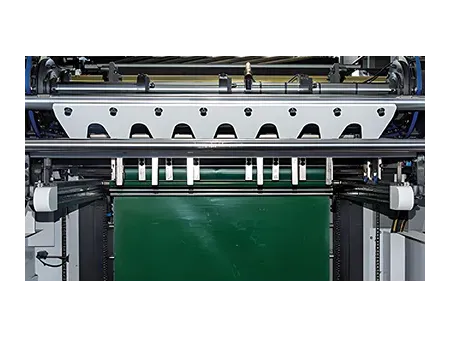

    1. Feeding and Positioning System

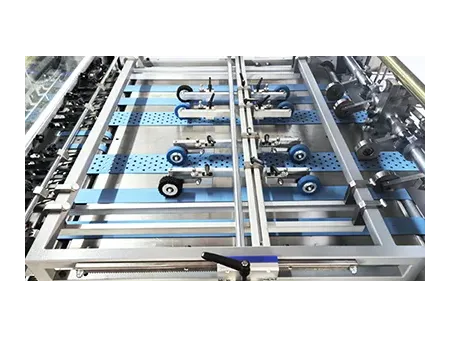

      Utilizes an imported flat conveyor belt to guarantee stable and accurate sheet transport. An optional vacuum feeding system further enhances stability, especially when handling thin paper, ensuring smooth and consistent feeding.

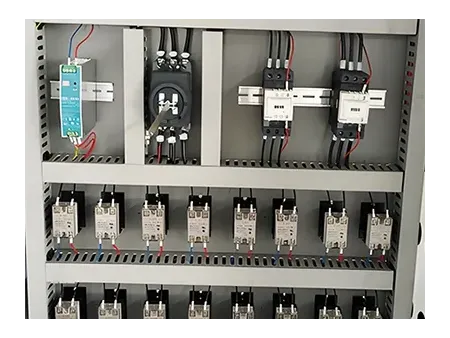

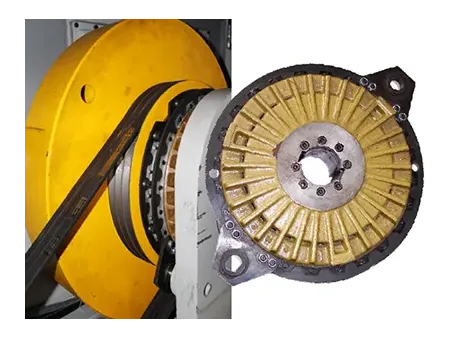

    1. Foil Stamping and Die Cutting Unit

      Features a deformation-resistant, heat-resistant cast iron honeycomb plate and a gap-free ball screw pressure adjustment device for precise control. With 20 independently controlled heating zones, the system maintains a stable foil stamping plate temperature, ensuring balanced and rapid temperature response for optimal foil stamping results.

    1. Micro-Adjustment Mechanism

      Enables quick and accurate alignment of the bottom mold/die alignment, improving overall efficiency and ensuring precise die cutting.

    1. Longitudinal Foil Feeding System

      Incorporates a three-shaft high-position foil feeding system with an extendable, retractable foil rack for fast foil replacement. The transverse two-shaft servo foil feeding system with tear detection enhances accuracy and efficiency.

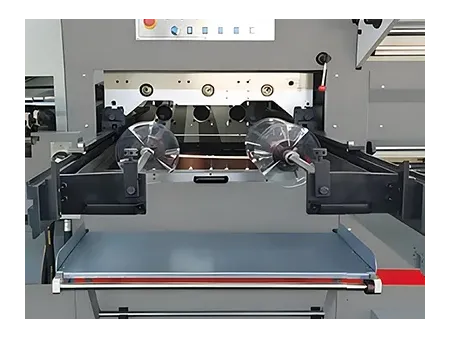

    1. Longitudinal Aluminum Foil Rewinding System

      Features an external longitudinal roller collection system for aluminum foil, facilitating efficient scrap recovery and reuse.

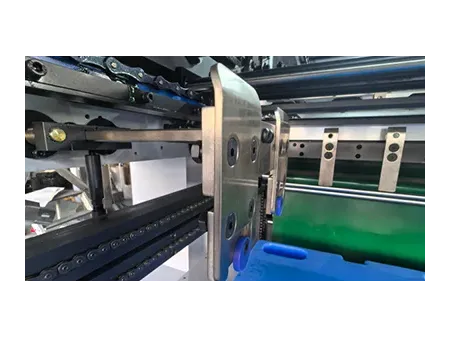

    1. Delivery Station

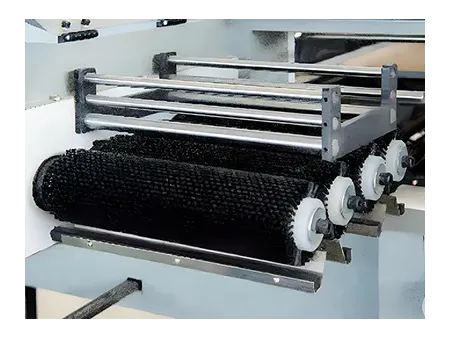

      Uses a brush and rear air-blowing system to maintain stable paper alignment. It includes an electric auxiliary paper collection system that supports continuous production, along with a pneumatic sampling function for real-time quality checks. An optional tab insertion counting function is also available.

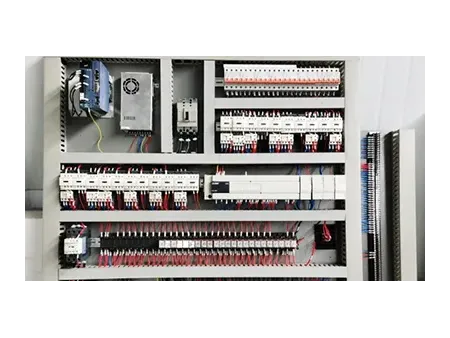

    1. Foil Stamping Control System

      An intelligent computing system automatically calculates skip-step schemes for different products, maximizing aluminum foil savings.

Consumables

To maintain optimal performance and longevity of your machine, we recommend using genuine HFM consumables. We offer a complete range of high-quality replacement parts: Stripping pin, sliding plate, lower pin locking block, rubber wheel, timing belt, brush wheel, gripper bar, movable gripper.
