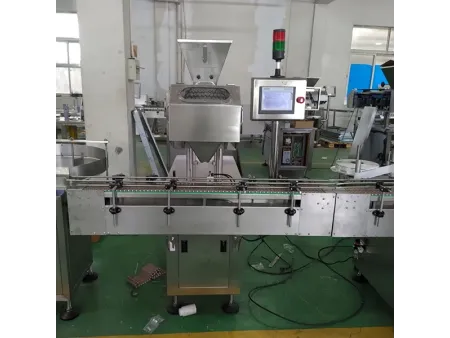

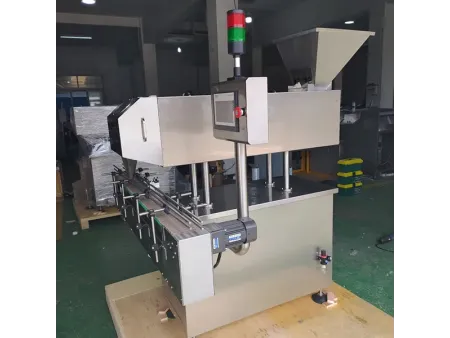

Electronic Tablet Counter
Counting system for filling bottles with tablets, capsules, and soft gels

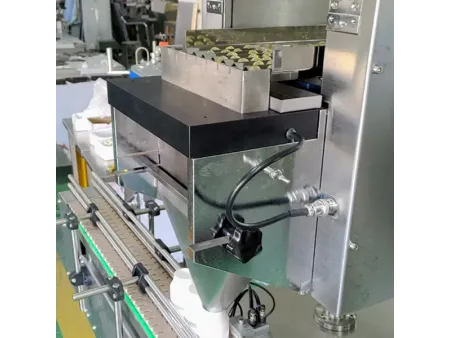

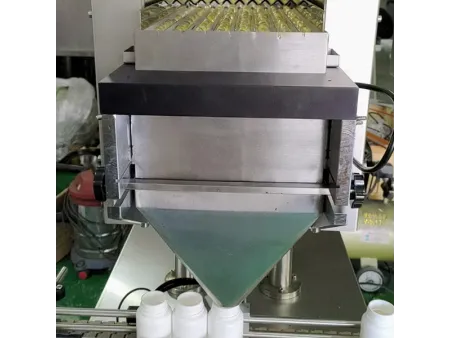

The electronic tablet counter is engineered to enhance efficiency in packaging lines, accurately counting and filling bottles with tablets, capsules, and soft gels. This system ensures that each bottle, arriving from upstream processing equipment, is precisely positioned for filling. The tablets or capsules are systematically organized through the vibratory action of a corrugated feeding plate into a medicine container. A counting photoelectric sensor meticulously verifies the count before the contents are funneled into the awaiting bottles.
Designed for versatility and accuracy, this counter is an indispensable tool for pharmaceutical and healthcare sectors, streamlining the packaging process while maintaining high standards of precision and cleanliness.
| Model | LQ-SLJS 4-Head Electronic Tablet Counter | LQ-SLJS 8-Head Electronic Tablet Counter |
| Capacity | Approximately 20-25 bottles/min | Approximately 30-35 bottles/min |
| Loading Range | 1-9999 granules/tablets adjustable | 1-9999 granules/tablets adjustable |
| Voltage | 220V, 50Hz, 1Ph | 220V, 50Hz, 1Ph |
| Power | 0.6kW | 0.6kW |
| Bottle Size | 10-500ml round/flat bottle | 10-500ml round/flat bottle |
| Counting Accuracy | More than 99.5% | More than 99.5% |
| Air Source | 0.6 Mpa | 0.6 Mpa |
If you need higher speed machine, please feel free to contact us
- This counter handles a wide range of solid preparations and granules, including tablets, capsules, soft capsules (both transparent and opaque), and pills. Its adaptability makes it an essential asset for various pharmaceutical applications.
- Uses channel vibration and unique patent blanking mechanisms to ensure materials are uniformly fed without damage. This careful handling preserves the integrity of each tablet or capsule during the counting process.
- Built with our exclusive anti-high-dust photoelectric sensing technology, the counter performs reliably even in environments with substantial dust, maintaining accuracy and functionality without compromise.
- Automatic photoelectric sensors deliver highly accurate counts with minimal error, ensuring each bottle receives the correct number of tablets or capsules.
- The counter includes intelligent functions such as 'no bottle, no count,' which prevents wastage and ensures operational efficiency. These smart features contribute to a smoother, more controlled production flow.
- Operators can easily set and adjust operational data as required, thanks to filling system intuitive design. This ease of use helps streamline processes and reduce training time.
- Designed for ease of use and maintenance, the counter allows workers to perform cleaning and component changes without tools, following straightforward training. This design minimizes downtime and keeps the counters running efficiently.
- For handling tablets with significant dust, an optional dust collection box can be attached to reduce dust pollution. This feature helps keep the workspace clean and protects the quality of the product.
