Mould Repair Laser Welding Machine
- Laser wavelength 1064nm
- Pulse width 0.1-10ms
- Cooling method water cooling
- Machine weight 260kg
The mould repair laser welding machine features a focused spot diameter of merely 0.2-3.0mm, allowing for micron-level repairs with just a gentle touch on the mold surface. With a heat-affected zone (HAZ) of less than 0.1mm, this equipment can restore the original form of molds with unparalleled precision, whether it's minor pores in plastic molds or complex cracks in die-casting molds, giving scrapped molds a new lease on life. Powered by a robust single pulse energy of 100J, it easily handles welding requirements for various materials. The water cooling system and the durable design, featuring a Xenon lamp life of over 8 million pulses, ensure the equipment remains stable even during continuous operation.
Aluminum alloy, magnesium alloy, titanium alloy, copper, copper alloy, gold, silver, stainless steel, mold steel, high-strength steel.
- Technical Data
- Configuration
- FAQ
- Why Us
- Model HSW series
- Laser type YAG laser
- Laser power 200W, 400W
- Laser wavelength 1064nm
- Pulse width 0.1-10ms
- Frequency 1-20Hz
- Laser spot size adjustment 0.3-2mm
- Aiming & positioning microscope
- Chiller power 200W-1.5P, 400W-3P
- Operation system LED touch screen
- Rated power 200W-8kW, 400W-12kW
- Power supply 220V±5V/50Hz/60A, 380V±5V/50Hz/40A
- Cooling method water cooling
- Machine dimensions 550×750×1150mm (main machine), 550×400×660mm (worktable), 500×600×980mm (chiller)
- Machine weight 260kg
- Package size 1350×1120×1290mm
- Package weight 280kg
- 200W laser powerFor weld thickness ≤1mm
- 400W laser powerFor weld thickness >1mm

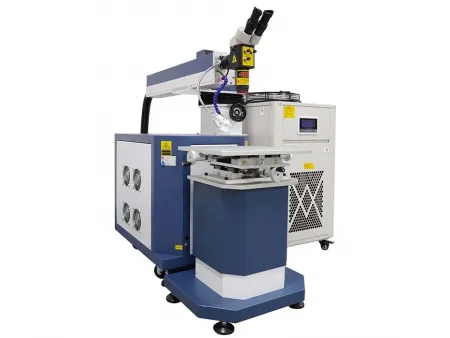

Main machine cabinet

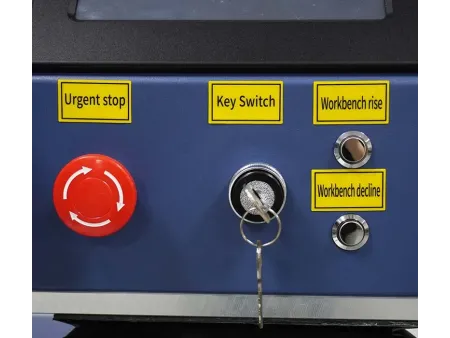

Features a unique ergonomic workstation design with a footprint of ≤2m². It is equipped with a microscope (magnification ≥20x) and a movable light arm that can be raised and lowered to ensure optimal welding illumination, enhancing work efficiency. An emergency stop button is included, which, when triggered, cuts off laser output within <0.1 seconds, ensuring operational safety.

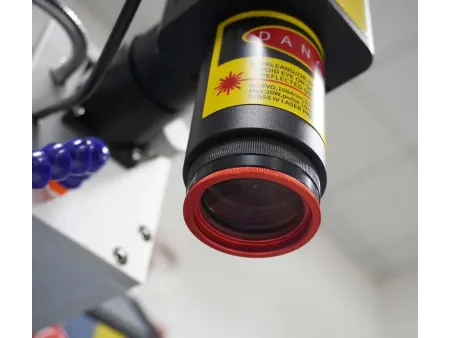

YAG laser & xenon lamp
Employs a 1064nm wavelength laser with a single pulse energy up to 70-120J, providing concentrated photon energy and strong deep-penetration capability, suitable for continuous welding applications in mold repair. The xenon lamp's trigger voltage is precisely controlled, with discharge energy fluctuation <3%, ensuring welding consistency and an electro-optical conversion efficiency ≥30%.
Touch screen system

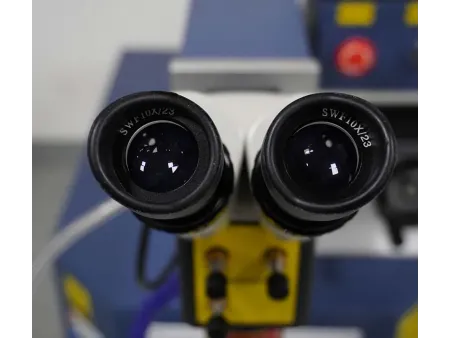

Features a high-definition LED touch screen that supports Chinese-English switching and real-time display of welding parameters for intuitive operation. It includes a built-in crosshair microscope with magnification ≥20x, allowing clear positioning of 0.1mm-level welds and preventing misoperation.
Three-dimensional load-bearing workbench
The workbench base is equipped with electric lifting, and movement uses precision ball screws and high-precision linear guides, making it lightweight, flexible, and precisely positionable, with a load capacity of up to 100kg.
Water chiller
Uses an industrial-grade water chiller, supporting a wide temperature control range of 5℃~35℃ with a temperature drift of ≤0.5℃, ensuring the YAG laser's electro-optical efficiency remains stable at ≥40% and a fault rate of ≤0.5%/year.
- YAG laser set
- Laser power supply set
- Adjustable mobile light arm set
- Cooling and water flow/temperature detection protection system set
- Lcd display system set
- Microscope unit
- Led light set
- Three-dimensional load-bearing workbench set
- Water chiller unit
- Main machine cabinet set
- Single foot pedal switch set
- Dual foot pedal switch set
- Shipping accessories list
- Product catalog
