Single Person Suspended Chair

Single Person Suspended Chair
Single Person Suspended Chair
Single Person Suspended Chair
Single Person Suspended Chair
Single Person Suspended Chair
Single Person Suspended Chair
Single Person Suspended Chair
Request a Quote
Examples of Suspended Platform

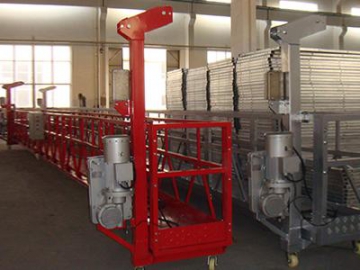

  • SXD-250 BMU Gondola
  • Platform for Elevator Installation

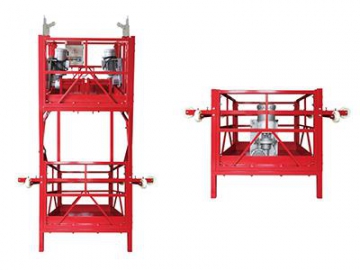

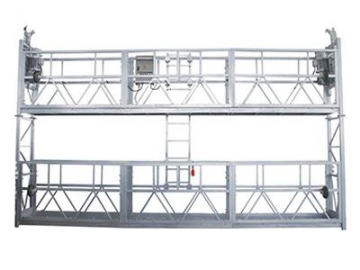

  • Double Deck Platform
  • L Leg Suspended Platform
  • L Leg Single Person Platform

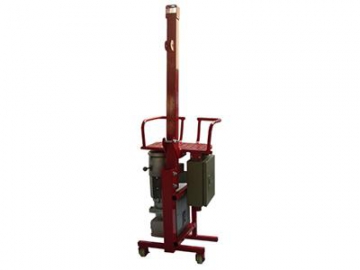

  • Single Person Suspended Chair
Technical Parameter of Single Person Suspended Chair
Rated Load 100kg
Lifting Speed 7-9m/min
Basket Dimension 450*520*1600
Steel Wire Rope Diameter 8.3/8.6mm
Hoist Rated Lift Force 3KN
Type YEJ801-4
Power 0.75KW
Voltage 380V
Rotate Speed 1400r/min
Brake Torque 0.75N.m
Lock Safety Rope Lock Equipment Permissible Force of Impact 4.9kN
Rope Distance < 200mm
Breaking Force of Safety Rope >22kN
Total Weight 80kg
