Large-Sized Double-Track Gantry Concrete Cutting Line

Request a Quote

View All: http://wallpanel-machines.com/2-7-11-cutting-line.html

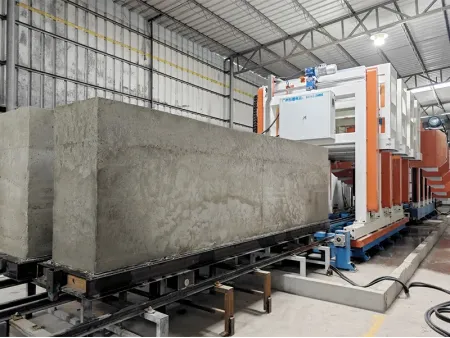

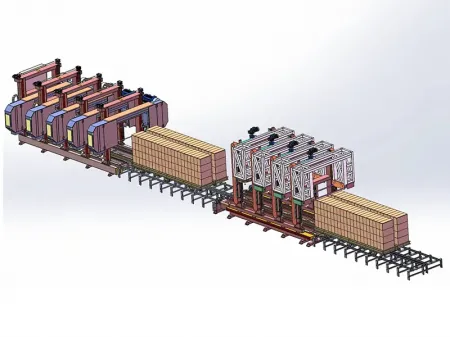

The large-sized double-track gantry concrete cutting line is designed for cutting AAC concrete blocks with moulds of the same size. It can cut two rectangular concrete cakes with dimensions of 4.2m x 1.2m x 0.6m or two rectangular concrete cakes with dimensions of 6.0m x 1.2m x 0.6m in a single operation. This system consists of a four-head double-track gantry vertical concrete cutter and a five-head double-track gantry horizontal concrete cutter, achieving a single cutting volume of 6-8m³.

Four-Head Double-Track Gantry Vertical Concrete Cutter

Specifications

Model: HDSMSQ-001
Dimensions: 6000×3350×3250mm
Power: 37.8kW
Flywheel diameter: 600mm
Cutting speed: 0-40m³/h
Cutting width: 100mm, 120mm, 150mm, 200mm, 300mm

Advantages

High capacity: capable of processing large volumes.
Fully numerically controlled: ensures precise and automated operations throughout the process.
Fast processing speed: increases overall efficiency.
Accurate dimensions: maintains precise cutting dimensions with minimal error.
Low waste: reduces material wastage during the cutting process.
Durable and easy to maintain: built to last and requires minimal maintenance.

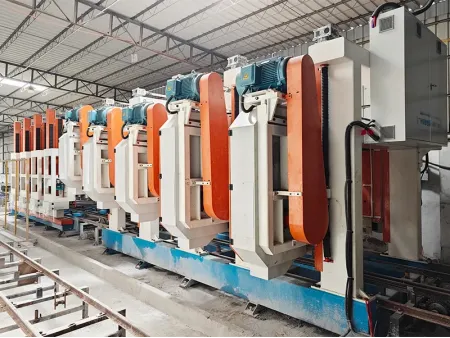

Five-Head Double-Track Gantry Horizontal Concrete Cutter

Specifications

Model: HDSMPQ-002
Dimensions: 6000×4200×2900mm
Power: 88.0kW
Flywheel diameter: 900mm
Cutting speed: 30-40m³/h
Cutting height: 100mm, 150mm, 200mm, 300mm, 350mm (or customizable)

Features

Easy size adjustment: fully PLC-controlled, input the required cutting dimensions (any size within 600mm), and the cutting task is completed automatically, making factory management easier.
Precise and beautiful dimensions: cutting size error is less than 1mm. The entire cutting process is controlled online by a computer (the concrete cake does not leave the bottom plate), ensuring high precision and a smooth, aesthetically pleasing surface.
Labor-saving: one person can complete the cutting process.
Easy saw blade replacement: saw blades can be changed in 1-2 minutes.
Low cutting loss costs: the saw head cuts vertically downwards without negative pressure, reducing friction on the saw blade, making it more durable and saving production costs.
Excellent performance: capable of cutting semi-dry and semi-wet concrete cakes (0.5-2MPA) as well as hardened concrete cakes (3.5-5MPA), delivering consistent and precise results across different material conditions.
Multi-functional: it can cut non-autoclaved aerated concrete (NAAC) blocks, EPS concrete blocks, and lightweight aggregate blocks and wall panels such as ceramist or perlite blocks.
