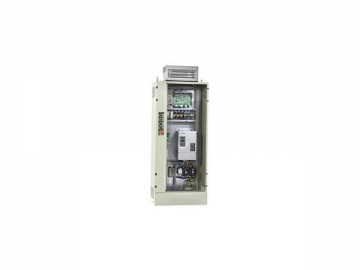

VVVF Escalator Control Cabinet
Features
1. Equipped with self-developed ES.01 escalator controller and iAstar AS500 general inverter, the VVVF escalator control cabinet we offer allows the elevators to start smoothly and able to work under an energy saving mode.
2. Idle speed adjustment of the escalators can be achieved through this escalator control system.
3. Our escalator control box makes escalator operation easier since it is capable of achieving humanized functions such as error report, remote monitoring, I/O extension etc. It can also be operated through a handheld operator.
4. Designed with various kinds of protection functions, this VVVF escalator manipulating cabinet ensures safe and reliable escalator running.
Technical Parameters
Power Supply: AC380V~460V, 50/60Hz, 3 phase
Power Range: 5.5kW~22kW
Main Controller: STEP ES.01/A
Driver: STEP AS500 general inverter
Safety Standard: GB16899/EN115
Environment Temperature: -10°C~ 45°C
Operation Mode: Full VVVF conversion, dual mode conversion (optional)
Cabinet Color: Dark gray or customized
Standard VVVF Escalator Control Cabinet Dimension (mm): 800×500×250 (Full VVVF conversion)
IP Code: IP21
Interface Description
Power Interface: 16mm2 crimp terminal
Adapted Motor: AC asynchronous motor
Brake Voltage: DC110/AC220V; Rated current ≤3A; Interface: 2.5mm2 crimp terminal
Light Voltage: AC220V
Cable Interface: 2.5mm2 crimp terminal
