VFFS Packaging Machine for Liquids
Request a Quote
This VFFS packaging machine for liquids is made of a 304 stainless steel to protect against liquid contamination. It is controlled using a PLM system to accurately fill and seal liquid pouches, making them ideal for packaging oil, water, juice, milk, honey and other liquid types.
Automatic liquip packaging machine
Samples

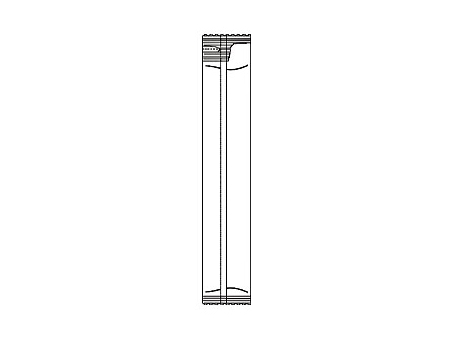

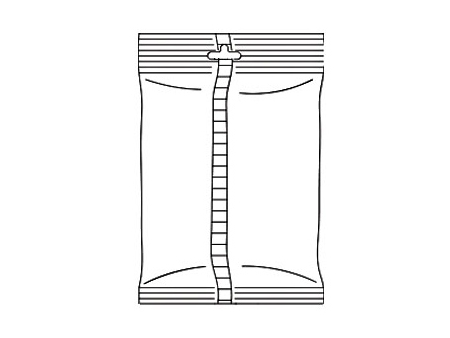

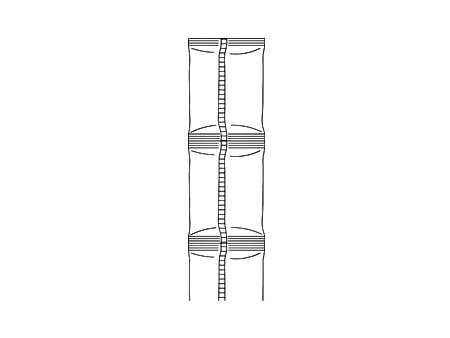

Bag types
- Pillow bag
- Pillow bag with euro hole
- Pillow bag with round hole
- Stick seal bag
- Linking bag
- 3 side sealed bag
- 4 side sealed bag
- Gusset bag
- Triangle bag
Specification
| Model | KCIV-4220 | KCIV-5220 | KCIV-6220 |
| Film width | Max.420mm | Max.520mm | Max.720mm |
| Bag length | 80-300mm | 80-350mm | 180-350mm |
| Bag width | 60-200mm | 100-250mm | 100-500mm |
| Film roll diameter | Max.320mm | Max.320mm | Max.320mm |
| Packaging rate | 5-60 bag/min | 5-60 bag/min | 5-55 bag/min |
| Range of measurement | 150-1500ml | 2000ml | 4000ml |
| Film thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm |
| Power | 220V 50/60Hz 2kw | 220V 50/60Hz 3kw | 220V 50/60Hz 3kw |
| Machine size(LxWxH) | 1217x1015x1343mm | 1488x1080x1490mm | 1780x1350x2050mm |
| Machine quality | About 650kg | About 680kg | About 750kg |
