VFFS Packaging Machine
Request a Quote

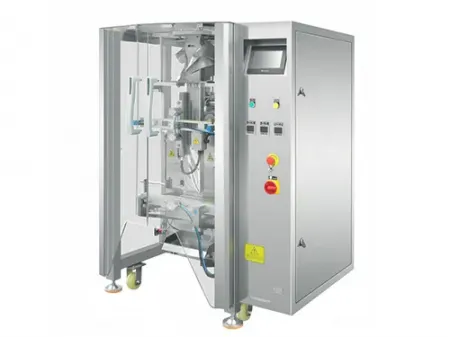

VFFS Packaging Machine, VP320/KP320
Specifications
| Model | ||
| Film width | 80～320mm | 120～420mm |
| Bag size | Width: 40～150mm Length: 30～200mm | Width: 60～200mm Length: 50～300mm |
| Packing speed | 5～90 pouches/min | 5～90 pouches/min |
| Air consumption | 0.8Mps,0.25m³/min | 0.8Mps,0.5m³/min |
| Dimensions | (L)1115×(W)800× (H)1370 mm | (L)1530×(W)970× (H)1600 mm |
| Power supply | single-phase 220v±5% 50～60HZ 2.2～3.9kW | single-phase 220v±5% 50～60HZ 2.2～3.9kW |
| Film thickness | 40 - 120 μm | 40 - 120 μm |
Security Alarm
- Safety Door Interlock & Shutdown: The VFFS machine automatically stops and triggers an alarm if the safety door is opened during operation.
- "No Bag, No Fill" Alarm: Alerts the operator and pauses the cycle if no pouch is detected or if there is a material shortage.
- End-of-Ribbon Alarm: Specifically for the date coder, notifying the operator when the printing ribbon is exhausted or broken.
- Machine Overload & Low-Temperature Alarm: Provides protection against mechanical strain (overload) and ensures seal integrity by monitoring for insufficient sealing temperatures.

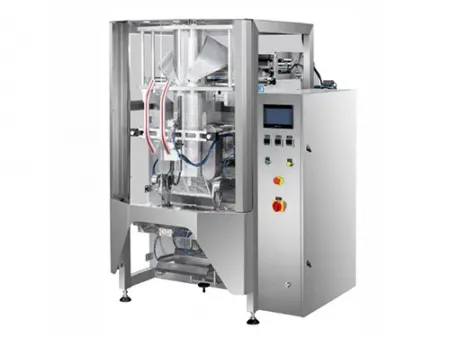

VFFS Packaging Machine, VP520/KP520
Specifications
| Model | |
| Film width | 220～520mm |
| Bag size | (W)100～250mm, (L)80～350mm |
| Packing speed | 5～70 pouches/min |
| Air consumption | 0.8Mps, 0.35m³/min |
| Dimensions | (L)1820×(W)1430×(H)2000mm |
| Power supply | Single-phase 220V±5%;50～60HZ;2.2～3.9kW |
| Film thickness | 40 - 120 μm |
Security Alarm
- Safety Door Interlock & Shutdown: The VFFS machine automatically stops and triggers an alarm if the safety door is opened during operation.
- "No Bag, No Fill" Alarm: Alerts the operator and pauses the cycle if no pouch is detected or if there is a material shortage.
- End-of-Ribbon Alarm: Specifically for the date coder, notifying the operator when the printing ribbon is exhausted or broken.
- Machine Overload & Low-Temperature Alarm: Provides protection against mechanical strain (overload) and ensures seal integrity by monitoring for insufficient sealing temperatures.
VFFS Packaging Machine, VP730
Specifications
| Model | |
| Film width | 300～730mm |
| Bag size | (W)140～350mm(L); 200～400mm |
| Packing speed | 5～50 pouches/min |
| Air consumption | 0.65Mps, 0.8m³/min |
| Dimensions | (L)1820×(W)1430×(H)2000(mm) |
| Power supply | Single-phase 220v±5P～60HZ 2.2～3.9kW |
| Film thickness | 40 - 120 μm |
VFFS Packaging Machine, VP820/VP920
Specifications
| Model | ||
| Film width | 300～820mm | - |
| Bag size | (W)250～400mm (L)250～600mm | (W)250～450mm (L)250～650mm |
| Packing speed | 5～50 pouches/min | 5～50 pouches/min |
| Air consumption | 0.65Mps,0.8m³/min | 0.65Mps,0.8m³/min |
| Dimensions | (L)1600×(W)1530× (H)2110mm | (L)2034×(W)1638× (H) 2 6 3 4 mm |
| Power supply | Single-phase 220V±5% 50～60HZ; 2.2～3.9kW | Single-phase 220V±5% 50～60HZ; 2.2～3.9kW |
| Film thickness | 40 - 120 μm | 40 - 120 μm |
VFFS Packaging Machine, VP1050
Specifications
| Model | |
| Maximum film width | 1050mm |
| Bag size | (W)200-510mm; (L)50-900mm |
| Packing speed | 5～30 pouches/min |
| Air consumption | 0.65Mps,0.8m³/min |
| Dimensions | (L)2250×(W)1800×(H)2400 mm |
| Power supply | Single-phase 220V±5%; 50～60HZ; 2.2～6Kw |
| Film thickness | 40 - 120 μm |
