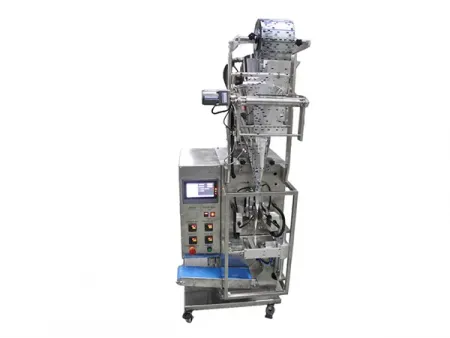

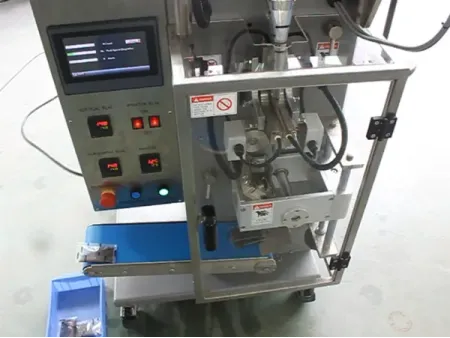

VFFS Packaging Machine for Small Bags, Single Lane
Request a Quote
The VFFS machine for sachets is a flexible filling machine that automates the entire process, including measuring, bag forming, filling, and sealing. It supports three-side seal, four-side seal, and back-seal sachets, and is compatible with a range of materials.
The vertical form fill seal machine is an economical, automatic packaging machine that is designed for small bag packaging. It is suitable for packaging a range of products, including liquids, powders, granules, tablets, and screws.
Features
- The machine performs product metering, bag forming, sealing, and shaping of special bag types
- Interchangeable molds allow the creation of customed pouches according to client’s visions
- High-sensitivity photoelectric sensors track and position printed marks, ensuring branding graphics with color registration marks
- PLC with color touchscreen system allows easy setup and adjustment of packaging parameters. It provides intuitive production display, automatic fault alarms, self-stop, and self-diagnosis functions
Options
- Date printer
- Fixed-bag cutting device
- Stainless steel machine frame
Optional Sealing Methods
- Three-side seal, four-side seal, back seal
Specifications
| Model | Applicable Product | Volume Range (ml) | Bag Length (mm) | Bag Width (mm) | Production Speed (BPM) | Filler Type |
| Granules | A:1-10 B:5-50 | 30-120 | 30-85 | 50-100 | Measuring Cup | |
| Liquid | 3-50 | 30-120 | 30-85 | 30-60 | Liquid Pump | |
| Powder | 3-50 | 30-120 | 30-85 | 30-60 | Auger Filler | |
| Tablets/Pills | 3-50 | 30-120 | 30-85 | 10-60 | Tablet Feeder | |
| Hardware (Screws, etc.) | 3-50 | 30-120 | 30-85 | 10-60 | Vibratory Feeder |
How suitable is the powder packaging system for seasoning powder manufacturers who seek precise dosing?
How suitable is the powder packaging system for seasoning powder manufacturers who seek precise dosing?
The powder packaging system features a metering structure, ensuring weight accuracy to meet the dosing requirements of seasoning powder manufacturers.
