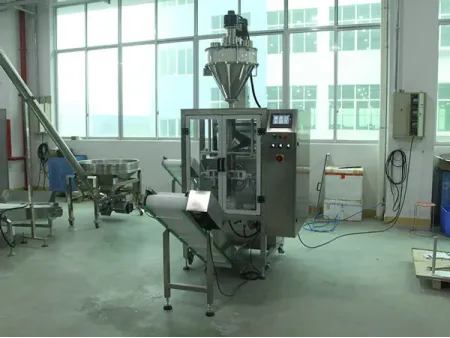

VFFS Packaging Machine for Large Bags, Single Lane
Request a Quote
The VFFS Packaging Machine for large bags is a bag filling and sealing system that automates the process of bag feeding, metering, bag forming, back sealing, and cutting for large-capacity materials. It features servo-driven film pulling, high-sensitivity photoelectric sensors, and precise PID temperature control as well as ensures stable bag formation, pattern alignment, and secure seals.
- ModelPM-720
- Max. Volume (ml)4000
- Bag Length (mm)200-500
- Bag Width (mm)150-350
- Max. Film Width (mm)320-730
- Packing Speed (BPM)10-35
- Power Supply220V/1Ph, 3.5kW
- ModelPM-620
- Max. Volume (ml)3000
- Bag Length (mm)120-450
- Bag Width (mm)110-300
- Max. Film Width (mm)240-630
- Packing Speed (BPM)10-45
- Power Supply220V/1Ph, 3.2kW
- ModelPM-520
- Max. Volume (ml)2000
- Bag Length (mm)80-390
- Bag Width (mm)90-250
- Max. Film Width (mm)200-530
- Packing Speed (BPM)15-50
- Power Supply220V/1Ph, 2.8kW
- ModelPM-420
- Max. Volume (ml)1000
- Bag Length (mm)80-300
- Bag Width (mm)80-200
- Max. Film Width (mm)180-430
- Packing Speed (BPM)15-60
- Power Supply220V/1Ph, 2.5kW
Features
- The machine performs bag feeding, precise metering, filling, bag forming, sealing, cutting, and date printing
- Servo-driven dual-belt film pulling ensures operation stability
- High-sensitivity photoelectric sensors track and position printed marks, achieving complete branding graphics with color registration marks
- PLC with color touchscreen system allows easy setup and adjustment of packaging parameters. The system displays production information intuitively and includes automatic fault alarm, self-stop, and self-diagnosis functions, making operation safe and maintenance convenient
- PID digital temperature control temperature within ±1°C
- Complies with CE safety standards
Samples
How suitable is the powder packaging system for seasoning powder manufacturers who seek precise dosing?
How suitable is the powder packaging system for seasoning powder manufacturers who seek precise dosing?
The powder packaging system features a metering structure, ensuring weight accuracy to meet the dosing requirements of seasoning powder manufacturers.
