This 45-ton high-speed precision press includes both six-guide posts straight side and three-guide posts C-frame press models, offering stroke lengths from 20-50 mm and operating speeds of 200-800 strokes per minute. With worktable dimensions ranging from 680×455 mm to 750×500 mm and slide sizes from 420×320 mm to 750×360 mm, it provides a wide scrap outlet and high structural rigidity. The press is ideal for continuous high-speed stamping of hardware components, beverage can lids, and other precision metal parts.
Samples of Stamped Parts

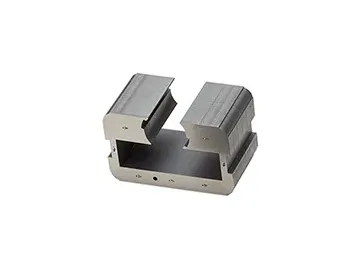

- Rotor and stator lamination stamping

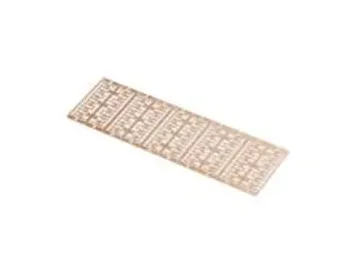

- Metal lead frame stamping
- IC chip stamping
- Rotor and stator lamination stamping
- Metal hardware stamping
- Can Lid Stamping
Mechanical Straight Side Press (6 Guide Posts), MDH-45T
Technical Specifications
| Press capacity (kN) | 450 | |||
| Stroke (mm) | 20 | 25 | 30 | 40 |
| Stroke speed (spm) | 200-800 | 200-700 | 200-650 | 200-600 |
| Shut height (mm) | 220-270 | 215-265 | 215-265 | 210-260 |
| Worktable size (bolster) (mm) | 750×500 | |||
| Slide area (mm) | 750×360 | |||
| Bed opening (mm) | 600×120 | |||
| Scrap hole size (mm) | 500×100 | |||
| Motor (kW) | 15×4P | |||
| Air pressure (MPa) | 0.7 | |||
| Feed line height (mm) | As per customer requirement | |||
| Total weight (ton) | 8 | |||
Mechanical C-Frame Press (3 Guide Posts), HC-45T
Technical Specifications
| Press capacity (kN) | 450 | ||
| Stroke (mm) | 30 | 40 | 50 |
| Stroke speed (spm) | 200-700 | 200-600 | 200-500 |
| Shut height (mm) | 210-240 | 205-235 | 200-230 |
| Slide adjustment (mm) | 30 | ||
| Worktable size (bolster) (mm) | 680×455×90 | ||
| Slide area (mm) | 420×320 | ||
| Scrap hole size (mm) | 100×500 | ||
| Main motor (kW) | 5.5×4P | ||
| Machine weight (ton) | 4.8 | ||
