Mechanical Eccentric Presses
Request a Quote
with Pneumatic Clutch and Brake
Features
- Incredible pressing accuracy.
- Steel welded frame with high rigidity.
- Motor with inverter.
- Combined wet friction clutch.
- Rectangular hexahedral lengthened guide; ocp-315/400 with octahedral lengthened guide.
- Hydraulic overload protector.
- Ocp-25/45: manual adjusting, scale indicated.
- Ocp-45: optional elec. adjustment with digital display.
- Ocp-63 superior: elec. adjustment with digital display.
- Lifting balance cylinder.
- Imported dual solenoid valve.
- Forced grease lubrication.
- Integrated panel (elec. cam included).
- PLC controller.
- Ejector.
- Optional: air cushion, light curtain, automotive device.
Specifications
| Model | OCP-25T | OCP-45T | OCP-63T | OCP-80T | OCP-110T | OCP-125T | ||
| Nominal Force | kN | 250 | 450 | 630 | 800 | 1100 | 1250 | |
| Nominal Stroke | mm | 3 | 4 | 4 | 5 | 6 | 6 | |
| Slide Stroke | mm | 80 | 100 | 120 | 140 | 160 | 160 | |
| SPM | Fixed (Optional) | min-1 | 100 | 80 | 70 | 60 | 50 | 50 |
| Variable | 80-120 | 70-90 | 60-80 | 50-70 | 40-60 | 40-60 | ||
| Max Die Height | mm | 250 | 270 | 300 | 320 | 350 | 350 | |
| Die Height Adjustment | mm | 50 | 60 | 80 | 80 | 80 | 80 | |
| Between Slide Center & Frame | mm | 210 | 230 | 300 | 300 | 350 | 350 | |
| Bolster Area (FB×LR) | mm | 400×700 | 440×810 | 580×900 | 590×1000 | 680×1150 | 680×1150 | |
| Bolster Thickness | mm | 80 | 110 | 110 | 120 | 140 | 140 | |
| Bed Opening (Dia./F·B×L·R) | mm | 260×250 | 300×300 | 390×460 | 390×520 | 420×540 | 420×540 | |
| Slide Area (FB×LR) | mm | 300×260 | 340×410 | 400×480 | 420×560 | 500×650 | 540×680 | |
| Shank Hole (Dia×Depth) | mm | φ40×60 | φ40×60 | φ50×80 | φ50×80 | φ60×80 | φ60×80 | |
| Between Columns | mm | 450 | 550 | 560 | 640 | 760 | 760 | |
| Main Motor Power | KW | 4 | 5.5 | 7.5 | 7.5 | 11 | 11 | |
| Outline Dimension (F·B×L·R×H) | mm | 1600×1125 | 1780×1225 | 2000×1305 | 2050×1390 | 2030×1620 | 2030×1660 | |
| ×2200 | ×2400 | ×2600 | ×2900 | ×3060 | ×3060 | |||
| Net Weight | Kg | 2600 | 3450 | 5400 | 7000 | 9840 | 10400 | |

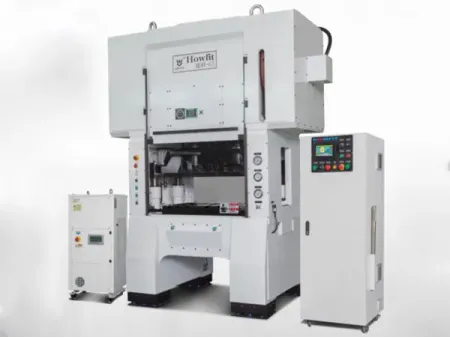

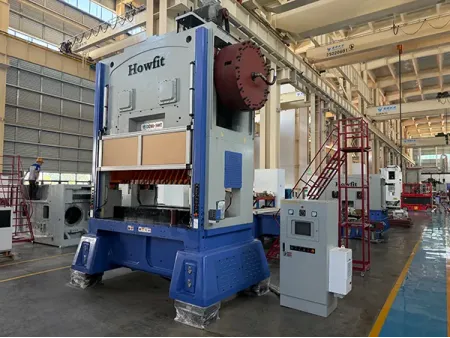

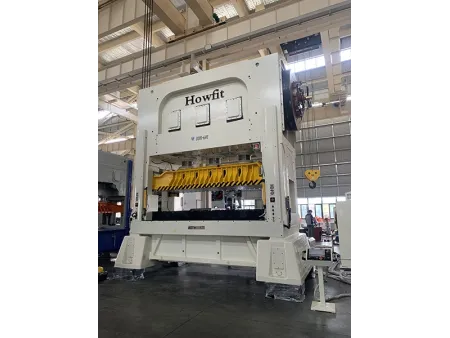

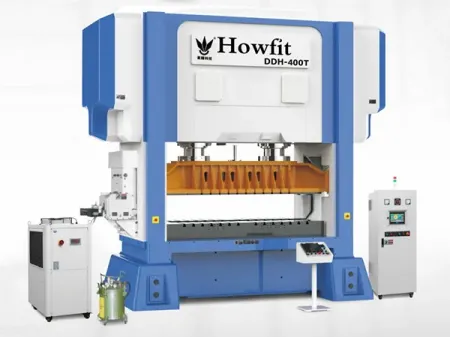

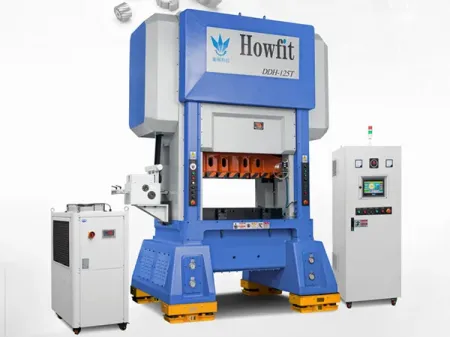

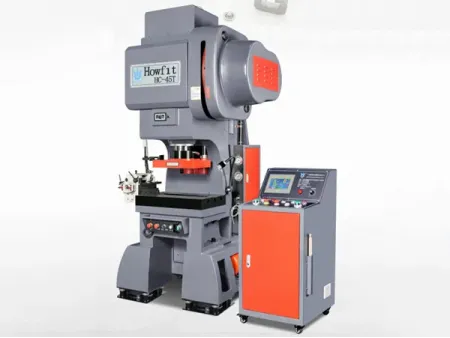

Related products
