The crank shaft straight side press provides a 300-ton pressing capacity with a 30 mm stroke and an operating speed of 100-450 strokes per minute. It features a 2300×1000 mm worktable, 2300×900 mm slide, and a 1900×300 mm scrap outlet, powered by a 55-kW main motor. Built with a strong, rigid frame for enhanced durability, this metal stamping press is ideal for continuous high-speed stamping of rotors, stators, and various hardware components.
Samples of Stamped Parts
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping

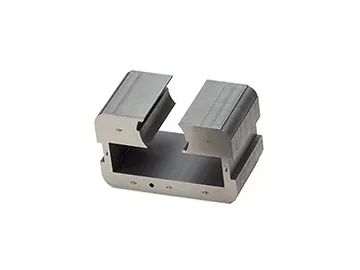

- Hardware component stamping

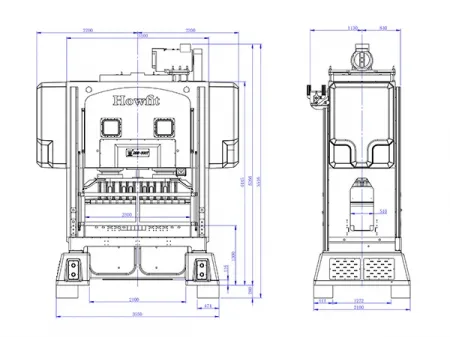

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 3000 |
| Stroke (mm) | 30 |
| Stroke speed (spm) | 100-450 |
| Shut height (mm) | 400-450 |
| Worktable size (bolster) (mm) | 2300×1000 |
| Slide area (mm) | 2300×900 |
| Slide adjustment (mm) | 50 |
| Scrap hole size (mm) | 1900×300 |
| Motor (kW) | 55×4P |
| Machine weight (ton) | 65 |
