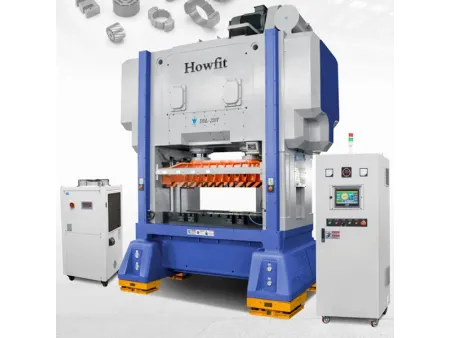

The crank shaft straight side press offers 125 tons of pressing capacity with a 30 mm stroke and speeds ranging from 150 to 500 strokes per minute. It features a 1400×850 mm worktable, a 1400×600 mm slide, and an 1100×200 mm scrap outlet, powered by a 37-kW main motor. Built for stability and precision, it is ideal for efficient, continuous stamping of rotors, stators, and metal hardware components.
Samples of Stamped Parts
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping
- Rotor and stator lamination stamping

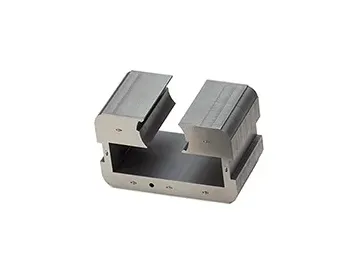

- Hardware component stamping
Crank Shaft Straight Side Press, DDH-125T
Technical Specifications
| Press capacity (kN) | 1250 |
| Stroke (mm) | 30 |
| Stroke speed (spm) | 150-500 |
| Shut height (mm) | 360-410 |
| Worktable size (bolster) (mm) | 1400×850 |
| Slide area (mm) | 1400×600 |
| Slide adjustment (mm) | 50 |
| Scrap hole size (mm) | 1100×200 |
| Motor (kW) | 37×4P |
| Machine weight (ton) | 27 |
Crank Shaft Straight Side Press, DDL-125T
Technical Specifications
| Press capacity (kN) | 1250 |
| Stroke (mm) | 30 |
| Stroke speed (spm) | 150-500 |
| Shut height (mm) | 360-410 |
| Worktable size (bolster) (mm) | 1400×850 |
| Slide area (mm) | 1400×600 |
| Slide adjustment (mm) | 50 |
| Scrap hole size (mm) | 1100×200 |
| Motor (kW) | 37×4P |
| Machine weight (ton) | 27 |
