ERTi-12 (Titanium Grade 12) Titanium Welding Wire Manufacturer

ERTi-12 (Titanium Grade 12) Titanium Welding Wire

Request a Quote

View All: http://weldingwire-en.com/2-9-titanium-welding-wire-erti-12.html

Welding Consumables

Titanium alloy filler metal for welding titanium alloys in applications requiring excellent weldability and high resistance to high temperature and corrosion

Chemical Designation: Ti-0.7Ni-0.3Mo
Standard: AWS A5.16

Chemical Composition (%)

Fe	O	C	N	H	Ni	Mo
≤0.15	0.08-0.16	≤0.03	≤0.015	≤0.008	0.6-0.9	0.2-0.4

Features

ERTi-12 offers high strength, making it suitable for a wide range of high-strength applications.
This alloy excels in environments prone to crevice corrosion, ensuring reliable performance in corrosive conditions.
ERTi-12 maintains exceptional heat resistance and corrosion resistance, ensuring stable performance in high-temperature and aggressive chemical environments.
Even in low-temperature conditions, ERTi-12 retains its mechanical properties, making it suitable for challenging environments.
ERTi-12 offers high chemical reactivity and low thermal conductivity, providing advantages in applications requiring precise control over heat transfer and chemical reactions.

Applications

ERTi-12 titanium welding wire is mainly used in the chemical and pressure vessel industries due to its excellent strength and corrosion resistance. It's suitable for environments that demand durability and stable performance under harsh conditions. Some applications include:

Chemical industry: Ideal for welding chemical reactors and corrosive equipment that require high-strength and corrosion-resistant materials
Pressure vessel welding: Used in welding pressure vessels that are exposed to extreme conditions, requiring high-strength, heat resistance, and corrosion resistance

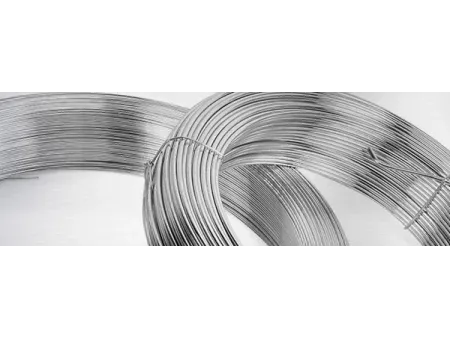

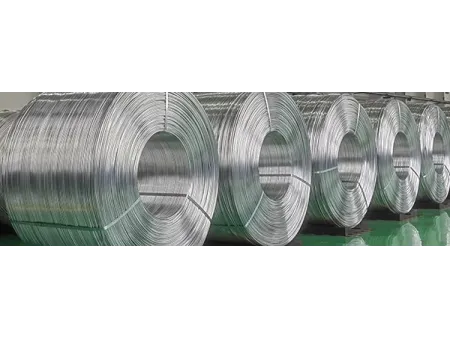

Packaging

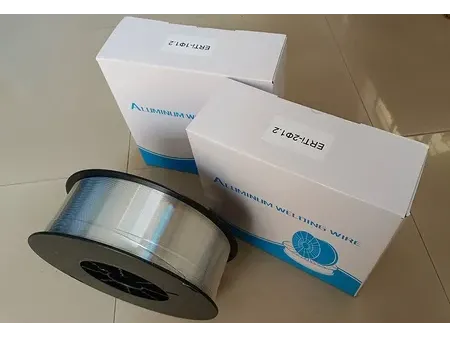

Spooled welding wire

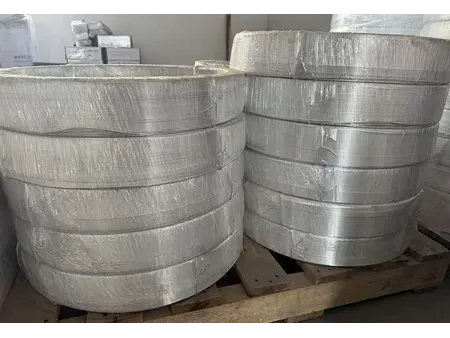

Coiled welding wire

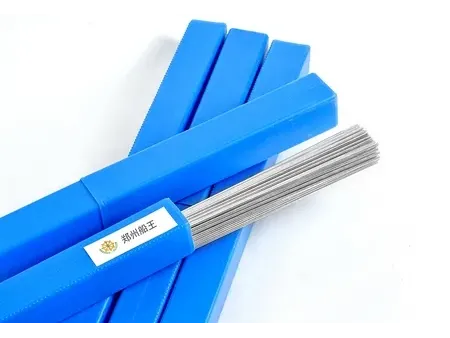

Straight welding wire

Welding wire diameter (fine wire spooling): 0.8mm, 1.0mm, 1.2mm, 1.6mm
Package: D300mm (10kg/spool), D100mm (0.8kg/spool)

Welding wire diameter (coil without spool): 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm
Coil inner diameter: D450mm, D300mm
Package: 10-17kg/coil

Welding wire diameter (straight wire): 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
Package: 1000mm length (5kg/plastic box)
