ERTi-11 (Titanium Grade 11) Titanium Welding Wire

Request a Quote

Website: http://weldingwire-en.com/2-8-titanium-welding-wire-erti-11.html

Welding Consumables

Titanium alloy filler metal for welding titanium alloys in applications requiring good resistance to high temperature and corrosion

Chemical Designation: Ti-0.2Pd
Standard: AWS A5.16

Chemical Composition (%)

Fe	O	C	N	H	Pd
≤0.08	0.03-0.10	≤0.03	≤0.012	≤0.005	0.12-0.25

Features

ERTi-11 titanium welding wire offers high tensile strength and outstanding heat resistance, ensuring stable mechanical performance even in high-temperature environments.
This alloy performs exceptionally well in corrosive environments, resisting the effects of various chemicals and providing long-lasting durability for industrial applications.
ERTi-11 maintains its mechanical properties at low temperatures, making it ideal for applications requiring reliable performance in cold conditions.
With high chemical activity and low thermal conductivity, ERTi-11 performs excellently in applications that require precise control over heat transfer and chemical reactions.

Applications

ERTi-11 titanium welding wire is widely used in industries that require high strength, heat resistance, corrosion resistance, and low-temperature stability. Key applications include:

Electronics and electrical equipment
Boiler welding
Reactor welding
Pumps and valves
Pressure vessel welding
Turbine blade welding
Pipe fittings and connectors

Packaging

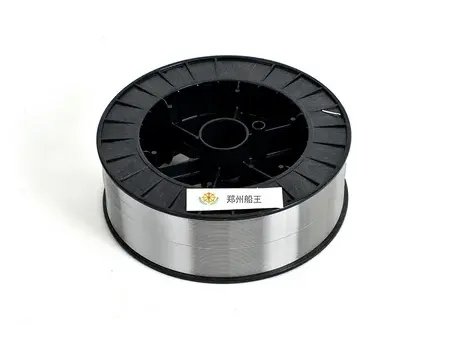

Spooled welding wire

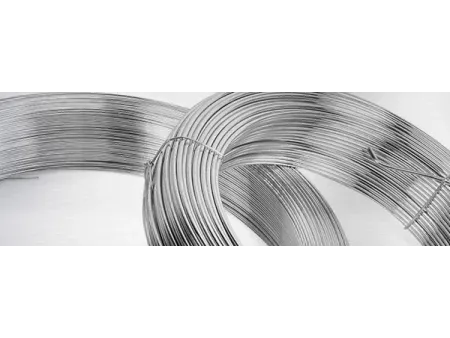

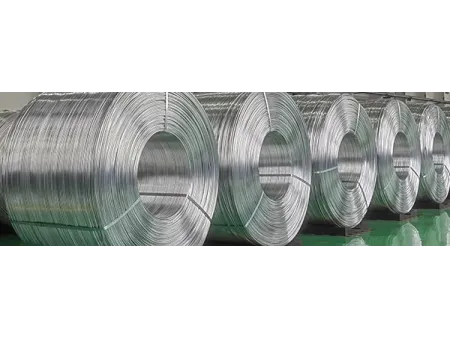

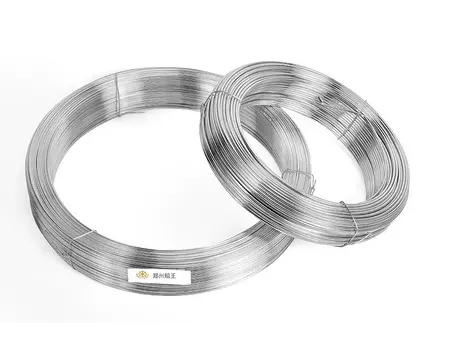

Coiled welding wire

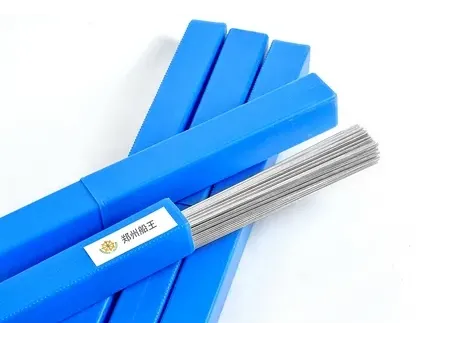

Straight welding wire

Welding wire diameter (fine wire spooling): 0.8mm, 1.0mm, 1.2mm, 1.6mm
Package: D300mm (10kg/spool), D100mm (0.8kg/spool)

Welding wire diameter (coil without spool): 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm
Coil inner diameter: D450mm, D300mm
Package: 10-17kg/coil

Welding wire diameter (straight wire): 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
Package: 1000mm length (5kg/plastic box)
