Chain Mill Crusher

Request a Quote

Website: http://fertilizermachine-en.com/1-1-chain-mill-crusher.html

Fertilizer Crushing Equipment

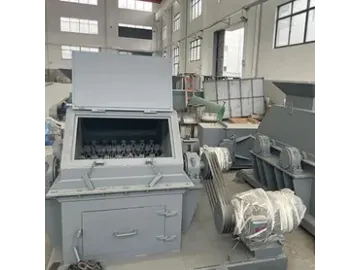

Chain mill crusher stands out for its unique chain design, offering superior anti-adhesion capabilities when processing high-moisture materials. This design effectively prevents clumping and blockages during the crushing process, making it particularly well-suited for fertilizers. With core components limited to a rotor, chains, and liner plates, and no complex gears or transmission systems, its assembly, disassembly, and daily maintenance are exceptionally convenient. This translates to minimal downtime and significantly lower operational costs.

High crushing ratio & low energy consumption
Efficiently reduces material size while maintaining energy efficiency.
Compact design & small footprint
Optimizes space utilization in your facility.
Replaceable wear parts for extended lifespan
Although chains are wear parts and require periodic replacement, the process is quick, and spare part costs are low, ensuring rapid return to production.

Specifications

Model	WL500	WL600	WL700	WL800	WL1000	WL1200
Rotation Diameter (mm)	Ø620				Ø720
Center Distance (mm)	500	600	700	800	1000	1200
Rotation Speed (r/min)	1440				1200
Power (kW) (Dual Motor)	11×2	15×2	18.5×2	22×2	37×2	45×2
Input Size (mm)	≤50		≤80		≤120
Final Size (mm)	≈1
Production Capacity (t/h)	5-8	10-15	15-20	20-25	25-30	30-40

Crusher shell material is customizable, Q235 steel is used as standard, with options for stainless steel upon client request. Chains are made from 20Mn for durability.

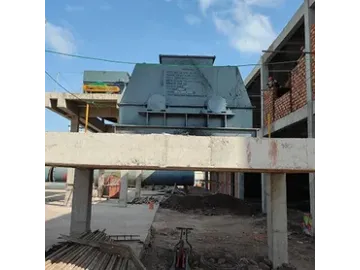

On-Site Cases

The chain crusher is used in NPK fertilizer production lines for crushing both raw materials and recycled materials.

Jiujiang Xinlianxin Fertilizer Co., Ltd. installed our WL600 chain-mill crusher for raw-material recycling

Yuxi Fertilizer Co., Ltd. purchased a WL600 chain mill crusher for fertilizer particle size reduction

Wuzhoufeng Agricultural Science and Technology Co., Ltd. purchased our WL500 chain mill crusher.
