AC 30 Series
Request a Quote
View All: http://fsmicromotor.com
, AC 30 Series

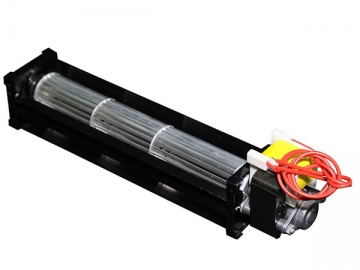

AC 30 series cross flow fan is designed with aluminum as the material for wind turbine and galvanized sheet for the wind shell. Both the two materials feature high hardness. AC 30 series are mainly applied in heating units, electric fireplace, exhaust fans, and other ventilation products.
Wind turbine diameter: 30mm
Length of wind turbine: 150mm, 250mm, 300mm, 350mm (customizable)
Insulation level: B, F, G
Exported to: United States, Canada, Poland, Germany, etc
MOQ: 5000PCS/PO
| Model | Voltage (V) | Frequency (Hz) | Input Power (W) | Discharge (m ³/h) | Rotating Speed (RPM) | Noise (dB) |
| 230 | 50 | 10 | 42 | 2700 | 35 | |
| 230 | 50 | 11 | 55 | 2700 | 35 | |
| 230 | 50 | 10 | 67 | 2600 | 37 | |
| 230 | 50 | 13 | 90 | 2700 | 38 | |
| 230 | 50 | 15 | 100 | 2600 | 39 |
