, AC 48 Series

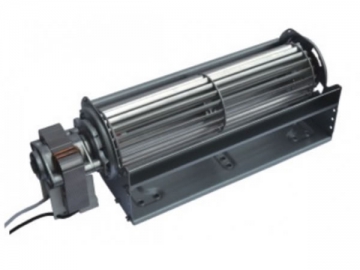

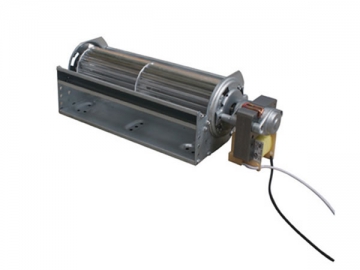

For the AC 48 series cross flow fan, we design the wind turbine with aluminum and the wind shell with galvanized sheet. It finds applications mainly in heating units, electric fireplace, cooling units, ventilation products, among others.
Wind turbine diameter: 48mm
Turbine length: 120mm, 180mm, 240mm, 300mm (customizable)
Insulation level: B, F, H
Exported to: United States, Canada, Poland, Germany, etc
MOQ: 5000PCS/PO
| Model | Voltage (V) | Frequency (Hz) | Maximum Input Power (W) | Maximum Discharge (m ³/h) | Rotating Speed (RPM) | Noise (dB) |
| 110 | 50 | 17 | 80 | 2100 | 46 | |
| 220 | 60 | 16 | 80 | 2100 | 16 | |
| 110 | 50 | 21 | 120 | 1400 | 40 | |
| 220 | 60 | 25 | 150 | 1800 | 43 | |
| 110 | 50 | 23 | 155 | 1600 | 42 | |
| 220 | 60 | 22 | 155 | 1600 | 42 | |
| 110 | 50 | 28 | 190 | 1800 | 45 | |
| 220 | 60 | 25 | 170 | 1800 | 43 |
