Four Column Hydraulic Press HBP-500T/DDH Manufacturer

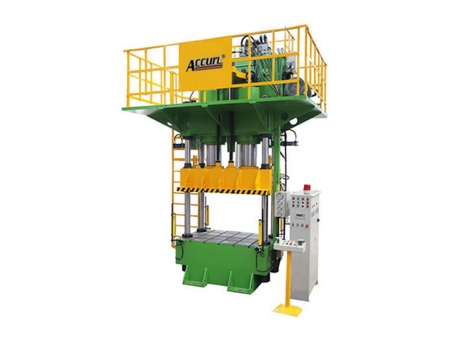

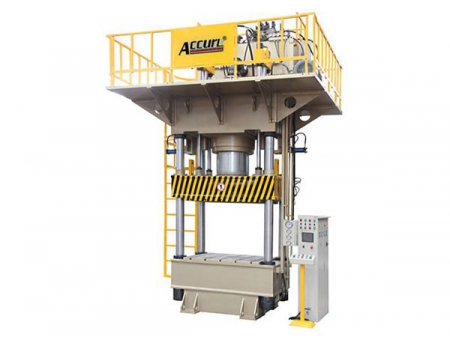

Four Column Hydraulic Press HBP-500T/DDH

Request a Quote

View All: http://accurlcnc.com/3-1-four-column-hydraulic-press-hbp-500t-ddh/205161/index.html

Characteristics

Adopt advanced Taiwan TWOWAY cartridge valve hydraulic circuit with little fault, minor reversing impact and high reliability.
Oil cylinder is made of alloy cast steel with precision grinding, which ensures reliable performance in high pressure condition.
Four columns are made of high strength alloy steel with hard chromium plated surface featuring good wear-resistance.
The main hydraulic and electric parts adopt brand-name components from Japan, France, Germany and Taiwan, so the machine enjoys high reliable performance.
The slide has fast speed and high productive efficiency.
Designed with adjustable drawing speed, the machine is applicable for various thickness metalworking and deep drawing.

High Reliability

Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch.

The entire equipment totally security (according to EN292:1994, EN60204:1994 and NR12) and defined as Level 4 of safety.

Intrinsic hydraulic safety valve block with redundant control and dynamic monitoring carried out by a security interface.

Right side protection: vertical door, pneumatic actuating, made of aluminium frame and polycarbonate transparate plates.

Applications

Stretching/drawing and forming of metal sheets, such as tableware, kitchen utensils, metal shell of motor and electric appliance, lamp house and more.
Shaping, stamping, drawing and edge cutting of metal and non-metal parts.

Specifications

Model(YL32/HP)			YL32-63	YL32-100	YL32-160	YL32-200	YL32-250	YL32-250A	YL32-315
Press Capacity		kN	630	1000	1600	2000	2500	2500	3150
Ejecting Force		kN	190	190	190	280	280	280	630
Return Force		kN	120	165	210	240	400	400	600
Slide Stroke		mm	500	500	560	710	710	710	800
Ejecting Force		mm	200	200	200	200	200	200	300
Max. Shut Height		mm	800	800	900	1120	1120	1120	1250
Slide Speed	Idle Stroke	mm/s	100	120	100	120	130	160	100
	Pressing	mm/s	8-16	7-15	4-10	5-12	4-10	4-10	5-12
	Return	mm/s	85	90	70	95	60	60	60
Ejecting Speed	Eject	mm/s	55	75	75	80	80	80	55
Ejecting Speed	Return	mm/s	105	140	140	145	145	145	145
Bolster	LR	mm	580	690	800	1000	1120	1800	1260
Bolster	FB	mm	500	630	800	940	1000	1200	1160
Outline Size	LR	mm	2500	2500	2550	2650	2800	3600	3500
	FB	mm	1430	1430	1430	1350	1400	1400	1500
	Above Floor	mm	3220	3250	3210	3800	3950	4290	4600
Main Motor Power		kW	5.5	7.5	11	15	15	15	22
Weight		kg	2800	3700	6500	9000	10300	16000	14000

Model(HP)			YL32-315A	YL32-400	YL32-500	YL32-500A	YL32-500B	YL32-630	YL32-630A
Press Capacity		kN	3150	4000	5000	5000	2500×2	6300	6300
Ejecting Force		kN	630	630	1000	1000	1000	1000	1000
Return Force		kN	600	500	900	900	400×2	850	850
Slide Stroke		mm	800	800	900	900	900	900	900
Ejecting Force		mm	300	300	350	350	350	350	350
Max. Shut Height		mm	1250	1250	1500	1500	1500	1500	1500
Slide Speed	Idle Stroke	mm/s	90	100	100	100	150	100	130
	Pressing	mm/s	5-12	4-10	7-15	7-15	7-15	5-12	5-12
	Return	mm/s	60	70	80	80	90	85	85
Ejecting Speed	Eject	mm/s	55	55	75	75	75	75	75
Ejecting Speed	Return	mm/s	145	145	170	170	170	170	170
Bolster	LR	mm	900	1250	1400	2200	2200	1600	2200
Bolster	FB	mm	900	1250	1400	1600	1600	1600	1600
Outline Size	LR	mm	3150	3500	3900	4800	4800	4510	4900
	FB	mm	1500	1600	2150	2250	2250	2250	2250
	Above Floor	mm	4500	4850	5200	5700	5600	5400	5700
Main Motor Power		kW	22	22	2×22	2×22	2×22	2×22	2×22
Weight		kg	11000	16500	25500	35000	34000	33000	42000

Model(HP)			YL32-630B	YL32-800	YL32-1000	YL32-1000A	YL32-1600	YL32-2000	YL32-2000A
Press Capacity		kN	3500×2	8000	10000	5000×2	2×8000	2×10000	6300×2 8000
Ejecting Force		kN	1000	1000	1600	1600	1000×2	1600×2	1600×3
Return Force		kN	450×2	1000	1370	900×2	2×2700	2×1300	850×2 720
Slide Stroke		mm	900	1000	1000	1000	1200	1300	1600
Ejecting Force		mm	350	350	350	350	350	500	500
Max. Shut Height		mm	1500	1600	1600	1600	1800	1800	2000
Slide Speed	Idle Stroke	mm/s	130	120	120	110	120	110	130
	Pressing	mm/s	5-12	5-12	5-12	5-12	4-9	4-9	4-9
	Return	mm/s	83	95	85	65	95	70	75
Ejecting Speed	Eject	mm/s	75	95	75	75	70	60	65
Ejecting Speed	Return	mm/s	170	170	150	150	160	160	135
Bolster	LR	mm	2200	2200	1500	2500	2800	3200	4600
Bolster	FB	mm	1600	1600	1500	1800	2000	2200	2600
Outline Size	LR	mm	4900	4800	4500	5100	5600	4500	6000
	FB	mm	2250	2400	2400	2400	2600	3200	3600
	Above Floor	mm	5600	5700	5700	6000	6200	7200	8000
Main Motor Power		kW	2×22	2×30	3×22	3×22	3×30	3×37	3×37
Weight		kg	40000	53000	53000	72000	110000	160000	250000

Configuration list

No.	Item	Standard MAKE	High Standard MAKE
1	PLC	Mitsubishi	Siemens
2	Pump Motor	WanNan/China top brand	Siemens / Rexroth
3	Hydraulic Pump	Anson/Taiwan, Yuken/Japan	Siemens / Rexroth
4	Relief Valve	Rexroth /Germany	Atos/Italy, Rexroth
5	Directional Valve	Rexroth /Germany	Atos/Italy, Rexroth
6	Proportional Valve	Rexroth /Germany	Atos/Italy, Rexroth
7	Cartridge Valve	Jeou Gang/Taiwan,SUN/USA	SUN, Atos, Rexroth
8	Prefill Valve	TAI COLN/Taiwan	Atos/Italy, Rexroth
9	Electric Units	Schneider/France	Schneider/France
10	Light Curtain	LNTECH with CE Mark	LNTECH with CE Mark
11	Touch Screen(HMI)	Weinview/Taiwan	Siemens
12	Pressure Gauge	SKON/Taiwan	SKON/Taiwan
13	Hydraulic Manifold	MADE IN TAIWAN	MADE IN TAIWAN
No worse quality components are adopted in ACCURLPresses.

Technical Specifications

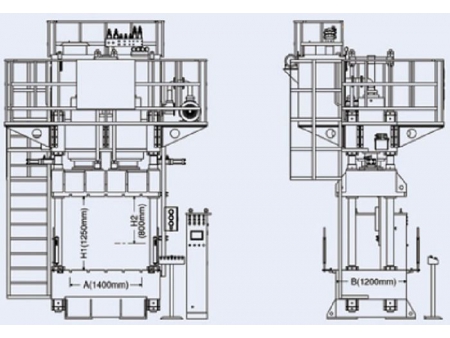

H2 = Ram stroke

H1 = Maximum installation height

A = Table width

B = Table depth

E = Daylight between guides

F = Lateral throughway

G = Table height above floor

Seri-al No.	Name	Unit		HBP-500T/DDH
1	Master cylinder pressure	Tons		500
2	Slide Stroke	H2	mm	900
3	Max. Daylight	H1	mm	1500
4	Min. Daylight	mm		600
5	Ejection Capacity	Tons		500
6	Ejection Stroke	mm		900
7	Upper Slide Fast Down	mm/sec		100
8	Pressing Speed	mm/sec		0.2÷2
9	Return Speed	mm/sec		10÷50
10	Lower Slide Fast Up	mm/sec		30
11	Return Speed	mm/sec		100
14	Table Size (LR* FB)	A/B	mm	1250×1150
14	Cushion Size (LR* FB)	mm		800×800
15	Worktable Height	-G	mm	780
16	Oil Tank Capacity	L		430
17	Main motor	kW		22
18	External dimensions (L×W×H)	mm		2850×2250×5350
19	Machine weight	Kg		32500
20	Hydraulic machine working video	http://youtu.be/WrPoribRmLQ
