Resin Bond Diamond Wheels for Dressing PCB Drill Bits

Request a Quote

View All: http://diamondtoolcn.com/3-1-resin-bond-diamond-wheels.html

This product has been discontinued and removed from our shelves.

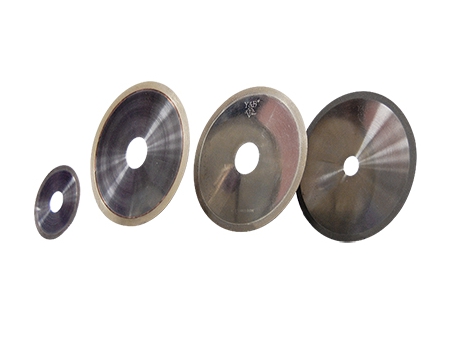

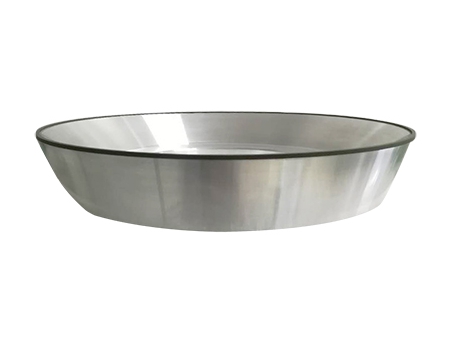

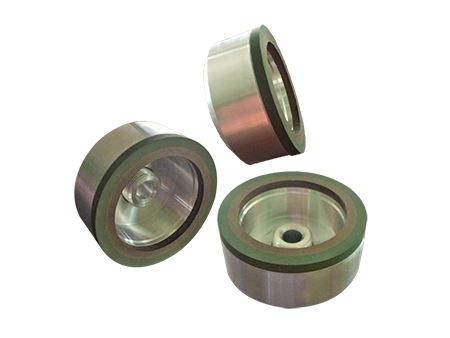

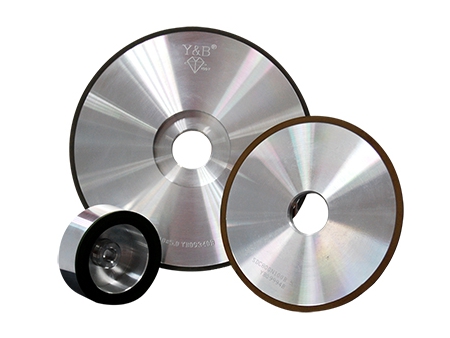

The resin bond diamond wheel is used for grinding PCB drill bits, and is available in both a straight type and flaring cup type. This super abrasive, combined with a resin, allows the wheel to meet requirements for both wet and dry grinding.

Benefits

High removal rate: it can improve productivity to create more parts in a specific period of time.
Good shape retention: it is not easy to deform when grinding.
Good surface finish.
High abrasion resistance.

4A2 Grinding wheel

Outer diameter (mm)	Overall thickness (mm)	Arbor hole diameter (mm)	Abrasive width (mm)	Abrasive thickness (mm)
40	10-20	10	3/5	2/3/4
50	10-20	10	3/5/6/8	2/3/4/5
75	10-25	10/19.05/20	3/5/6/8/10	3/4/5/6
100	15-30	19.05/20	3/5/6/8/10/12/15/20
125	15-35	25.4/31.75/32	3/5/6/8/10/12/15/20/25/30
150	15-35		3/5/6/8/10/12/15/20/25/30
175	15-40		5/6/8/10/12/15/20/25	3/4/5/6/8
200	20-55		6/8/10/12/15/20/25
250	20-55	32/75	5/6/8/10/12/15/20/25/30
300	25-60	75/127	10/12/15/20/25/30	4/5/6/8/10
350	30-60	75/127	10/12/15/20/25/30
400	30-60	127/203	15/20/25/30/35/40
450	30-80	127/203	20/25/30/35/40/50
Note: other specifications can be customized upon request!

6A2 Grinding wheel

Outer diameter(D) mm	Overall thickness(T) mm	Arbor hole diameter(H) mm	Abrasive width(W) mm	Abrasive thickness(X) mm
40	10-20	10	3/5	2-4
50	10-25	10	3/5/6/8	2-5
75	10-25	10/19.05/20	3/5/6/8/10	2-5
100	15-30	19.05/20	3/5/6/8/10/12/15/20	3-6
125	15-35	25.4/31.75/32	3/5/6/8/10/12/15/20/25/30
150	15-35		3/5/6/8/10/12/15/20/25/30
175	15-40		6/8/10/12/15/20/25	3/4/5/6/8
200	20-55		6/8/10/12/15/20/25/30
250	20-55	32/75	6/8/10/12/15/20/25/30
300	25-60	75/127	10/12/15/20/25/30	4/5/6/8/10
350	30-60	75/127	10/12/15/20/25/30	4/5/6/8/10
400		127/203	15/20/25/30/35/40
450	30-80	127/203	20/25/30/35/40/50
Note: other specifications can be customized upon request!
