Resin Bond Diamond Grinding Wheel for Tungsten Carbide Tool
Request a Quote
This product has been discontinued and removed from our shelves.

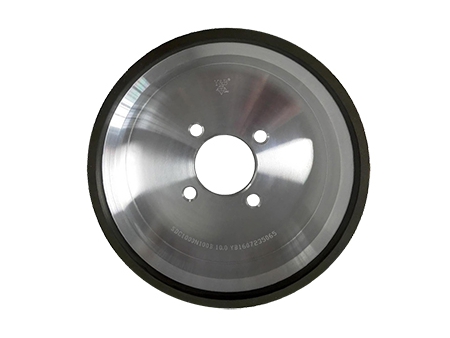

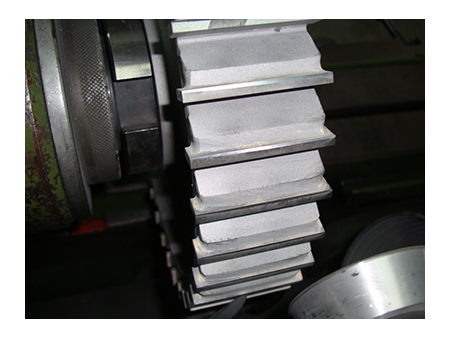

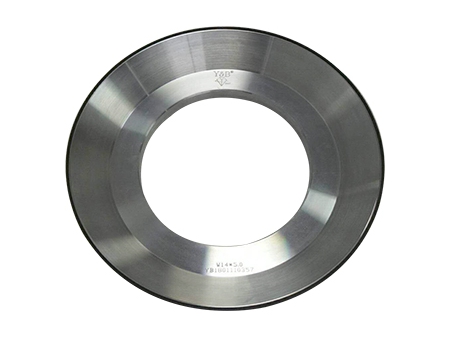

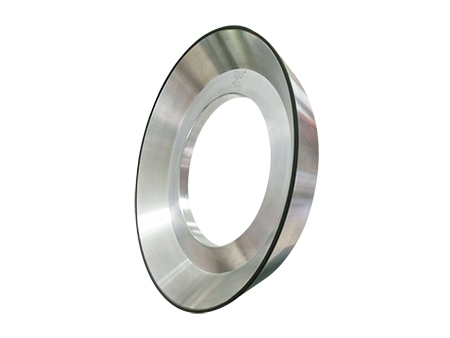

The resin bond diamond grinding wheel is used for grinding Tungsten carbide tools and is available as either a diamond or CBN type for customers to choose from. Different types of grinding wheels for Tungsten carbide tools are shown below, and we also offer customization services for different shapes, including taper cup, flaring cup, and straight type.
Specification
| Outer diameter (mm) | Overall thickness (mm) | Arbor hole diameter (mm) | Arbor hole width (mm) | Abrasive width (mm) | Abrasive thickness (mm) |
| 30 | 15 | 8/10 | Customized | 2-10 | 1.5-10 |
| 50 | 25 | 10/19.05/20 | |||
| 75 | 25/30/32 | 19.05/20 | 10 | 3/5/6/8/10 | 2-6 |
| 90 | 35/40 | ||||
| 100 | 25-40 | 19.05/20 /31.75/32 | 6/8/10/12 | ||
| 125 | 8/10/12/15 | 3-8 | |||
| 150 | |||||
| 200 | 30-50 | 31.75/32/40 | 12/15 | 8/10/12/15/20/25 | |
| Note: other specifications can be customized upon request! | |||||
