Rotary Axis for 3D Robotic Laser Cutting Head

Request a Quote

Website: http://laserhead-en.com/3-1-rotary-axis-for-3d-robotic-laser-cutting-head.html

AC01-LD-H03

5-axis machining center spindle designed for multi-surface and multi-directional machining of sheet metals and metal components

AC01-LD-H03

5-axis machining center spindle designed for multi-surface and multi-directional machining of sheet metals and metal components

This rotary axis for 3D robotic laser cutting head is engineered for 5-axis machining centers, enabling multi-surface and multi-directional processing of sheet metals and metal components. It is particularly well-suited for applications such as 3D sheet metal forming and hot-stamped steel processing.

Specifications

Model	AC01-LD-H03
Applicable Laser Cutting Head	LCR04/LCR03
Rated Torque of A-axis	58N·m
Rated Torque of C-axis	190N·m
A-axis Movement Range	±100°
C-axis Movement Range	±360°
Rated Speed of A-axis	26r/min
Rated Speed of C-axis	23r/min
Repeated Positioning Accuracy of A-axis/C-axis	7arcsec
Weight	17kg

Features

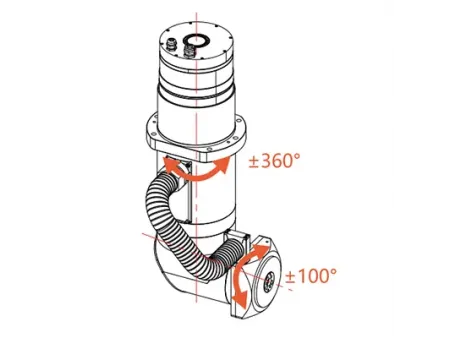

A-axis rotation range of ±100°
C-axis rotation range of 360°
QBH fiber passage through the C-axis center
Integrated harmonic motor drive
High-precision machining quality
