Rotary Axis for Laser Bevel Cutting Head
Request a Quote
AB02-LD-H01
Laser cutting head spindle used for producing bevelled cuts on metal parts
AB02-LD-H01
Laser cutting head spindle used for producing bevelled cuts on metal parts

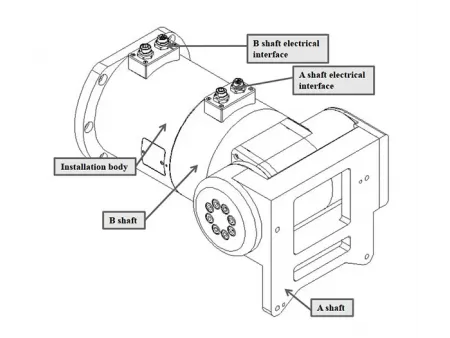

This rotary laser cutting head spindle is engineered for producing precise angled cuts on flat metal sheets. Its smooth multi-axis motion keeps the path stable and the bevel line clean, making it an ideal choice for flat bevel cutting applications in metal fabrication.
Specifications
| Applicable Laser Cutting Head | GHB Series |
| Rated Torque of A-axis | 58N·m |
| Rated Torque of B-axis | 133N·m |
| A-axis Movement Range | ±45° |
| B-axis Movement Range | ±90° |
| Repeated Positioning Accuracy of A-axis/B-axis | ±7arcsec |
| Rated Speed of A-axis | 26r/min |
| Rated Speed of B-axis | 25r/min |
| Weight | 11KG |
Features

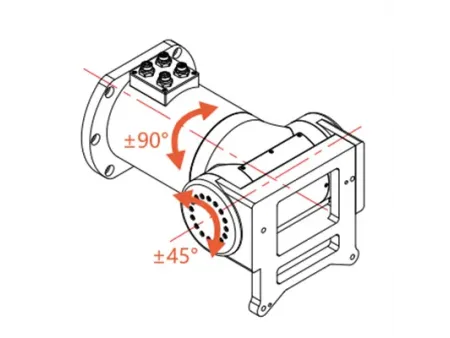

- A-axis rotation: ±45°
- B-axis rotation: ±90°
- Integrated harmonic motor drive
- High-precision machining quality
