YX65-400-425 Standing Seam Roofing Machine

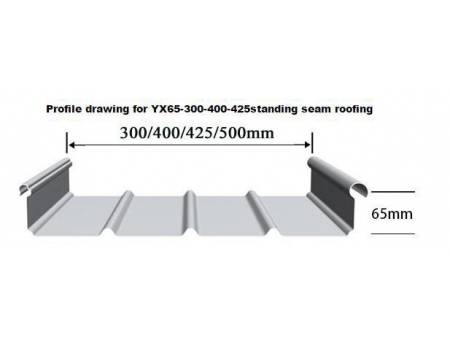

YX65-400-425 standing seam roofing machine is designed for producing straight and tapered profiles with a width of 400mm and 425mm. This metal roofing machine can roll form aluminum material with thickness of 0.7-1.0mm and steel material with thickness of 0.5-0.8mm. Adopting PLC control system realizes automatic production in an easy manner. The compact structure enables it to be loaded in a 20GP container, allowing for easy transport to the construction site.
| Model | YX65-400-425 |
| Dimension | 5800*1600*1500mm |
| Motor Power | 7.5KW*2 |
| Hydraulic Power | 2.2KW |
| Forming Steps | 13Steps |
| Forming Speed | 8-15m/min |
| Voltage | 380V/50HZ/3PH |

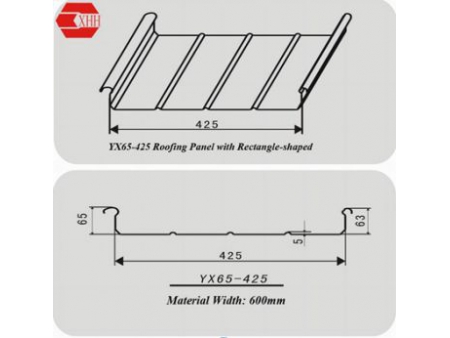

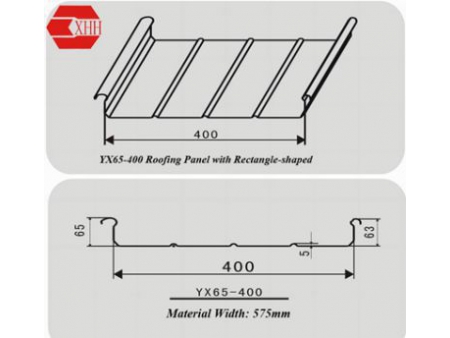

| Effective Width | 400mm,425mm |
| Material Width | 575mm,600mm |
| Height of Roofing | 65mm |
| Aluminum Thickness | 0.7-1.0mm |
| Steel Thickness | 0.5-0.8mm |
| Control System | PLC Control |
-
-

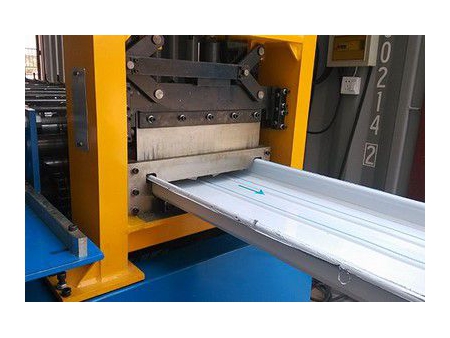

Hydraulic post cutter is made by Cr12Mov mold steel, with HRC60-62 heat treatment for high quality and long service life.
-
-

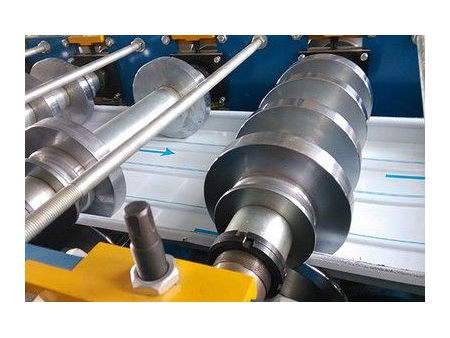

Roller is manufactured form high quality 45# steel with CNC lathes and heat treatment. Hard chrome plating is optional for long service life.
-
-

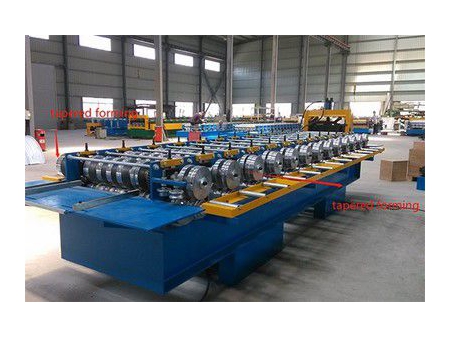

Tapered Forming both size use for the tapered profile forming, two times forming for the tapered profile.
-
-

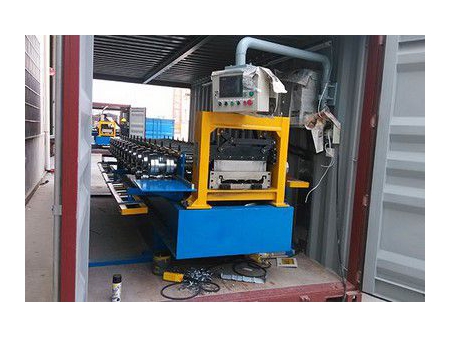

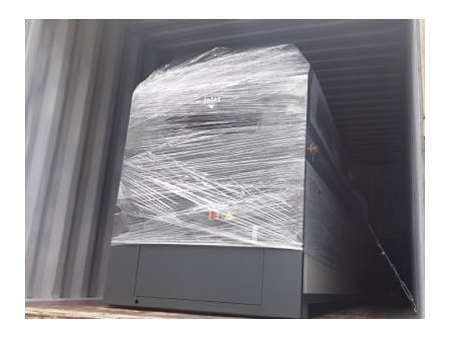

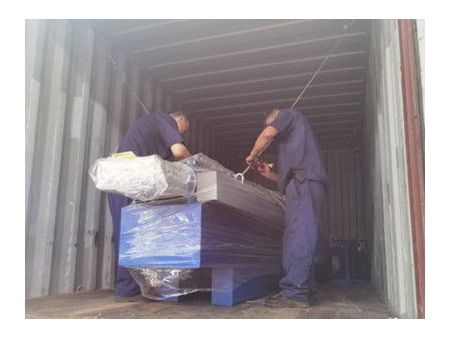

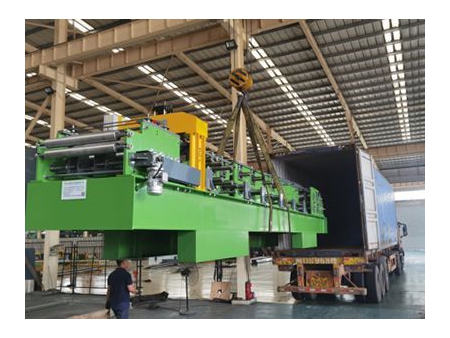

Available to be loaded in a 20GP container.
-
-

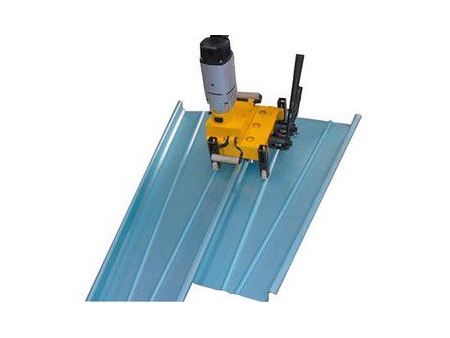

Auto Seamer
- Main Forming Machine for make Straight and Tapered Roof
- 5 Tons Manual Uncoiler/or 5 Tons Hydraulic Uncoiler
- 20GP New Container
- Auto Seamer
- Hand Seamer
- PLC Computer Controlling System With Touch Screen ( Brand: Schneider )
- Making Tapered Standing Seam Roofing
- Run Out Table
- Operation Manual
