YX65-300-600 standing seam curving machine is meant for convex and concave curving of standing seam roof panels. The minimal curved radius for aluminum panel is 0.8mm and both straight and tapered profiles are available. The compact structure facilitates the transportation and is easy to use on site.
Thickness for aluminum roof: 0.7-1.2mm
Thickness for steel roof: 0.7-0.9mm

Samples

Sample for convex-curved standing seam roofing

Sample for convex & concave-curved standing seam roofing

Profiles
Specifications
Model YX65-300-600
Dimension 1500*900*2000mm
Motor Power 4kW
Hydraulic Power 3kW
Forming Steps 3 Steps
Forming Speed 10-16m/min
Voltage 380V/50HZ/3PH
Width of Straight Roofing to Curved 300-600mm
Min. Width of Tapered Roofing to Curved 250mm
Max. Width of Tapered Roofing to Curved 500mm
Min. Curved Radius for Aluminum Roofing Convex Curved 2m, Concave Curved 6m
Min. Curved Radius for Steel Roofing Convex Curved 4m, Concave Curved 10m
Min. Curved Radius for Tapered Roofing Convex Curved 10m, Concave Curved 12m
Thickness for Aluminum Roof 0.7-1.2mm
Thickness for Steel Roof 0.7-0.9mm
Control System PLC Control
Curving Effect "M" "S" Shape
Main Accessories
  • Main Curving Machine
  • PLC Computer Controlling System with Touch Screen (Brand: Schneider)
  • Protective Steel Box
  • Tools
  • Operation Manual

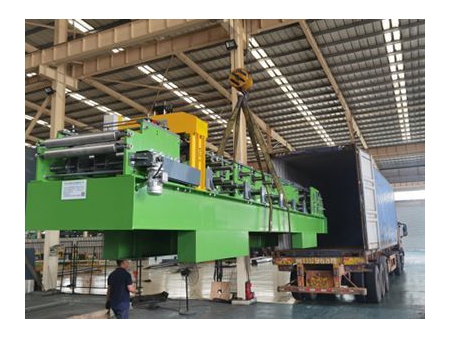

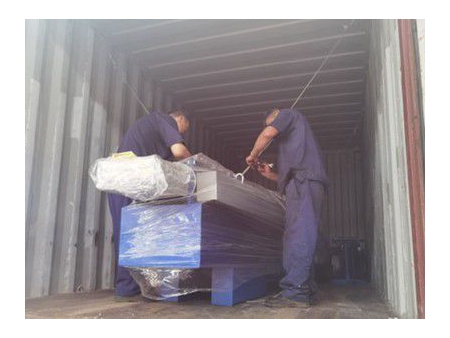

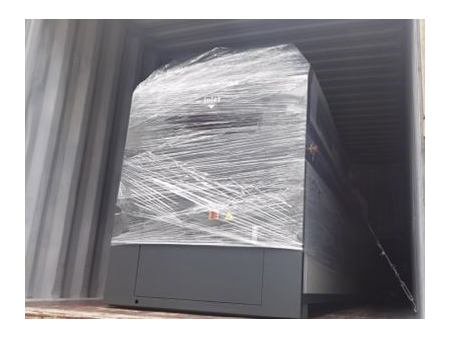

Transportation Package
