WZH-100 Horizontal Cartoning Machine
The WZH-100 horizontal cartoning machine is a new model developed by our company on the basis of domestic and foreign advanced technologies. As a high-tech product integrating light, gas, electronics and mechanics, it can complete fast cartoning and runs stably and reliably at high speed.

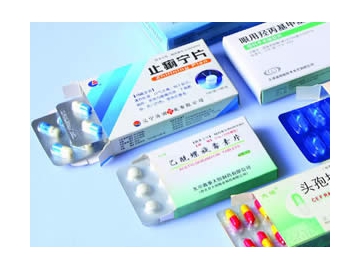

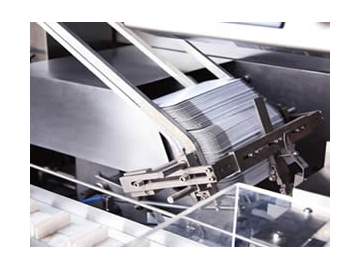

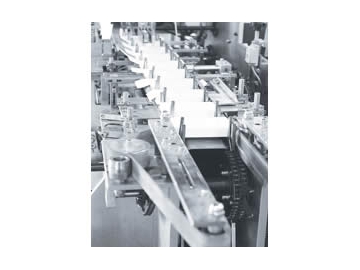

Our WZH-100 horizontal cartoning machine is suitable for the automatic feeding and cartoning of blister formed plate items. The automatic feeding mechanism is easy to adjust and the number of plates to be cartoned can be set freely on the operation screen. The machine can automatically complete the entire process of detecting on-line blister plate, folding, transmitting and detecting leaflet, forming and transmitting carton, loading materials, printing batch number, sealing carton by paper or hot melt glue and outputting the finished product.
Specifications| Item | Parameters | |
| Encasing speed | 30-100 boxes/min | |
| Box | Quality requirement | 250-350g/㎡ (Base on carton size) |
| Dimension range (L×W×H) | (70-180) mm× (30-85) mm× (14-50) mm | |
| Leaflet | Quality requirement | 60-70g/㎡ |
| Unfolded leaflet specification (L×W) | (80-250)mm ×(90-170)mm | |
| Fold range (L×W) | (1-4) Fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 120-160L/min | |
| Power supply | 220V 50HZ | |
| Main motor power | 0.75kw | |
| Machine dimensions ( L×W×H ) | 3100 mm ×1100 mm ×1550 mm | |
| Machine weight | About 1400kg | |
Adopting man-machine interface operating system, our product is easy to operate. It uses internationally renowned brands of electrical components and can automatically exclude cartons lacking packaged items or leaflets. In addition, this horizontal cartoning machine can count finished products, display faults, send an alarm and automatically shut down when overloading.
Jiangnan Enterprise is a horizontal cartoning machine manufacturer and supplier in China. We offer a comprehensive range of products, including softgel encapsulation machine, automatic capsule filling machine, fluidized bed dryer granulator, and more.
