SINO-100

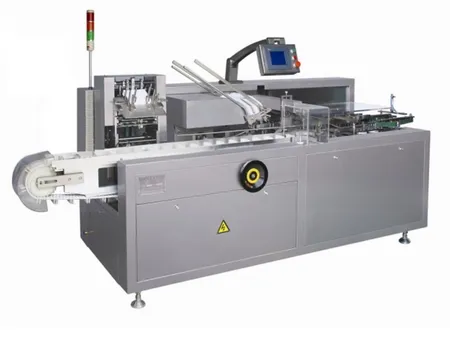

Horizontal cartoner for automated feeding and packing products in cartons

30 to 100 Cartons Per Minute
(70-180) × (30-85) × (14-50) mm Carton Length× Width × Height

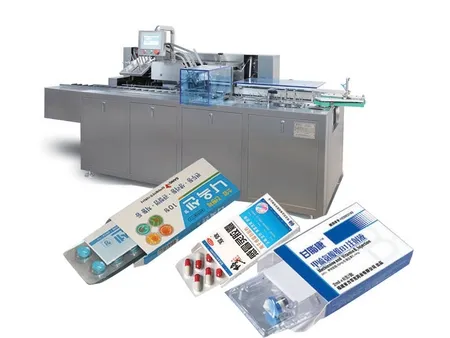

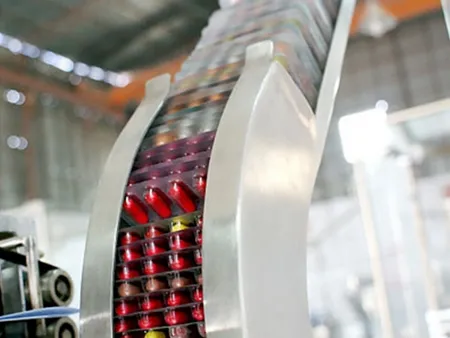

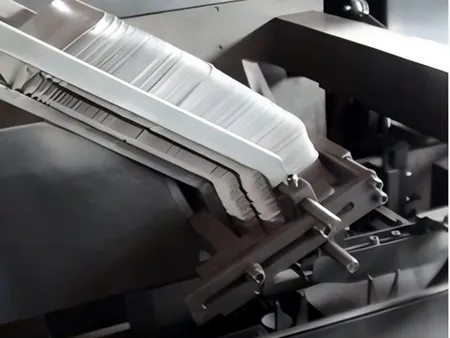

The horizontal cartoning machine is designed for automated feeding and packaging of blister-formed items into cartons. It features an adjustable auto-feeding mechanism that allows users to set the number of blister packs per carton through the touch screen. This packaging machine automates the entire cartoning process, including blister detection, instruction manual folding (1-4 folds) and insertion, carton forming and feeding, product loading, batch number embossing, end flaps sealing (compatible with hot melt glue), material shortage rejection, and finished product output.

It is suitable for various industries, including pharmaceuticals, cosmetics, and food, ensuring efficiency, precision, and reliable carton packaging.

Key features

Equipped with a PLC automatic control system and frequency control, utilizing internationally renowned electrical components for reliable performance
Includes an automatic shutdown function in case of mechanical overload to prevent equipment damage or accidents
Automatically removes cartons that are missing packaging materials or instruction manuals, ensuring consistent product quality
Features fault display, alarm system, and finished product counting for streamlined operation and improved packaging

Specifications

Cartoning Speed		30-100 cartons/min
Carton	Paper Weight	250-350g/m² (depending on box size)
	Carton Size (L×W×H)	Length: 70-180mm Width: 30-85mm Height: 14-50mm
Leaflet	Unfolded Leaflet Size	Length: 80-250mm Width: 90-170mm
	Folding Range	1-4 folds
Compressed Air	Working Pressure	≥0.6mpa
	Air Consumption	120-160L/min
Power Supply		220V 50HZ
Motor Power		0.75kW
Machine Dimensions (L×W×H)		3100mm×1100mm×1550mm
Machine Weight		Approx.1400kg
