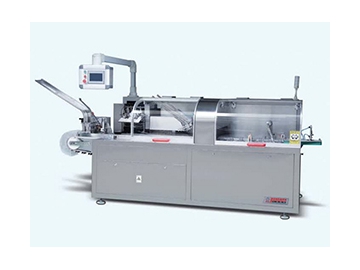

WZH-120 Horizontal Cartoning Machine
The WZH-120 horizontal cartoning machine is a newly developed model that integrates superior technology from both domestic and international sources. It's a high-tech product that blends pneumatic, photoelectric, and electromechanical technologies to enhance the performance and efficiency of the equipment. It can work efficiently at high speeds, ensuring fast and steady cartoning process.
This cartoner is ideal for blister packaging, featuring an easily adjustable automatic feeding structure. Users can set the number of blisters via a touch screen. The process includes online product feeding and detection, leaflet folding (1-4 folds) and feeding, leaflet detection, carton opening and forming, product and leaflet insertion, batch number printing, and sealing the carton with either a tuck-in or hot melt glue device. It automatically rejects any missing leaflets or products and ejects the finished product.
Features- Equipped with internationally renowned electrical components, including PLC touch screens and frequency inverters.
- Features a user-friendly human-machine operation system.
- Automatically stops in case of an overload to prevent damage.
- Rejects packages lacking products or leaflets automatically.
- Displays errors, triggers alarms, and counts finished products for easy monitoring.
- Offers stable performance and is easy to operate.
| Speed Range | 30-70 boxes /min (based on carton size) | |
| Box | Quality Requirement | 250-350 g/m² (based on carton size) |
| Dimension Range (L×W×H) | (80-180)×(30-85)×(15-50)mm | |
| Leaflet | Quality Requirement | 60-70g/m² |
| Unfolded Leaflet Size | (80-250)×(90-90)mm | |
| Fold Range | 1-4 Fold | |
| Compressed Air | Working Pressure | ≥0.6mpa |
| Air Consumption | 120-160L/min | |
| Power Supply | 220V 50HZ. | |
| Main Motor Power | 0.75kW | |
| Dimensions (L×W×H) | 3200×1150×1700mm | |
| Machine Weight | 1000kg | |
