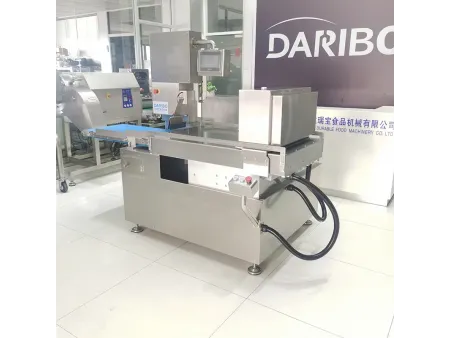

Automatic Bone Saw
Meat Processing Equipment
Commercial meat saw for cutting meats and bones
- Air pressure requirement 0.4Mpa
- Cutting speed 10 cycles/min
Our automatic bone saws combine precision, durability, and user-friendly features tailored for demanding meat processing tasks. Constructed from high-quality 304 stainless steel, these meat saws are both durable and hygienic, with a waterproof design that allows for thorough cleaning. The dual-layer clamping system on the worktable, paired with fixed pins at the base, ensures stable material handling and precise portioning. Cutting speed and thickness are easily adjustable using an intelligent touch-screen control panel, with a servo motor ensuring high accuracy in thickness settings. For smooth operation, the bone saws require an external air supply of at least 0.36m³/min, making it suitable for high-performance environments.

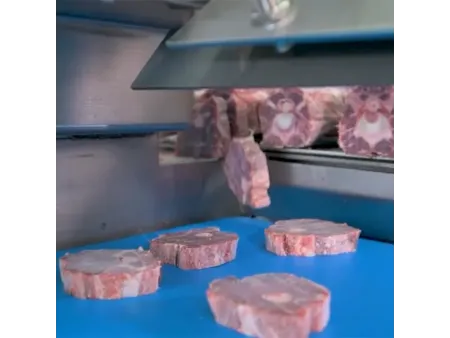

Suitable for cutting a variety of products, including ultra-low-temperature frozen bone-in meats, boneless meats, poultry, fish, and seafood.
- Model: DRB-ATJG150B
- Voltage: 380V, 50Hz
- Power: 3.5kW
- Air pressure requirement: 0.4Mpa
- Max. cutting thickness: 80mm
- Cutting speed: 10 cycles/min
- Worktable size (L×W): 650×800mm
- Max. material height: 150mm
- Max. saw speed: 34m/s
- Dimensions (L×W×H): 1465×2190×1720mm
- Weight: 1100kg
