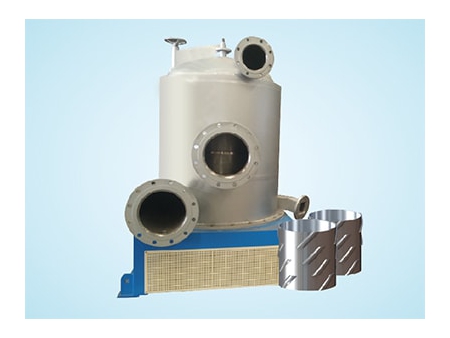

CoarsePulp Screen Machine, Drum Type
The drum type coarse pulp screenmachine is used to remove impurities, especially heavy impurities, from variouskinds of waste paper fibers. With reliable quality and economical prices, thismachine has been successfully exported to many countries such as Ecuador and Panama
StructureFeatures

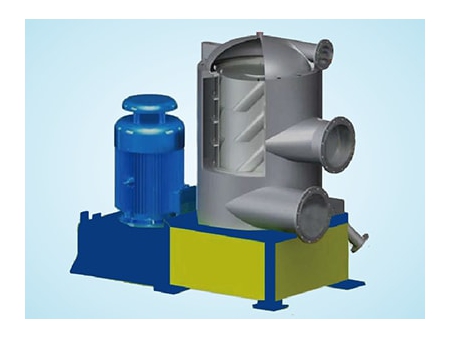

1. The coarse pulp screen machine combines cleaning and screening together. Thestock enters the vat from the bottom. Then the stock is revolved by the drumand the heavy impurities will be instantly discharged from the outlet.
2. The rotor of the pulp screen machine in accepts side enables accepts to passthe screen plate with less resistance, resulting in higher throughput.
3. The machine candischarge heavy impurities continuously and intermittently, and discharge lightimpurities continuously.
4. The coarse pulp screen machine is of simplestructure and easy operation and can be used as fiber separator.
Specificationsof Coarse Pulp Screen Machine
| Model | ZSR1 | ZSR2 | ZSR3 | ZSR4 | ZSR5 | ZSR6 | ZSR7 |
| Drum Size(m2) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 |
| Inlet Consistency (％) | 1.5~2.5 | ||||||
| Screen Hole Dia(mm) | Φ1.4～Φ3 | ||||||
| Inlet Pressure(MPa) | 0.12~0.25 | ||||||
| Capacity (t/24h) | 15~50 | 60~100 | 110~150 | 160~200 | 210~250 | 260~300 | 310~350 |
| Motor Power (KW) | 30 | 55 | 75 | 90 | 110 | 132 | 160 |
