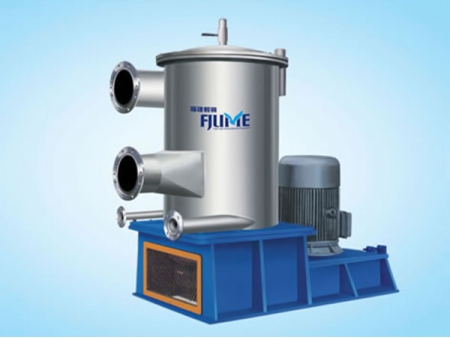

Pressure Screen (Inflow Type), ZSL Series
Request a Quote
Application
The pressure screen (inflow type), ZSL Series can be used as a pulp screen before paper maker. It can also function as a fine screen in pulp production system.
Features
- The impurities only remain outside of screen basket .With centrifugal force, the impurities will reduce its contact with basket, which prolongs the lifespan of screen basket with less abrasion.
- Separate the impurity from the fiber efficiently to avoid slot plugging in the condition of proper flow and low pulsing force.
- The pressure screen (inflow type), ZSL Series is more suitable to be used as a screening tool with pulp consistency lower than 1.2%. Its performance can promote the paper machine to be in proper running with less broken paper.
- More throughput with more long fiber; Lower power consumption; Higher screening efficiency with less rejects
Specifications of Pressure Screen (Inflow Type)
Model | Max. Capacity(t/24h) | Design Consistency (%) | Slot Size (mm) | Motor Power (KW) |
ZSL91 | 15 ~ 20 | 0.5 | 0.25 ~ 0.35 | 11 |
ZSL92 | 25 ~ 33 | 15 | ||
ZSL93A | 50 ~ 68 | 22 | ||
ZSL93 | 60 ~ 80 | 30 | ||
ZSL94 | 75 ~ 100 | 37 | ||
ZSL95 | 100 ~ 135 | 45 | ||
ZSL96 | 125 ~ 170 | 45 | ||
ZSL97 | 150 ~ 205 | 55 | ||
ZSL98 | 180 ~ 235 | 55 | ||
ZSL99 | 205 ~ 270 | 75 | ||
ZSL100 | 230 ~ 305 | 75 | ||
ZSL101 | 255 ~ 340 | 90 | ||
ZSL102 | 305 ~ 410 | 110 | ||
ZSL103 | 360 ~ 475 | 132 |
