Conveyor Pulleys

Request a Quote

View All: http://beltconveyor-system.com/3-2-conveyor-pulley.html

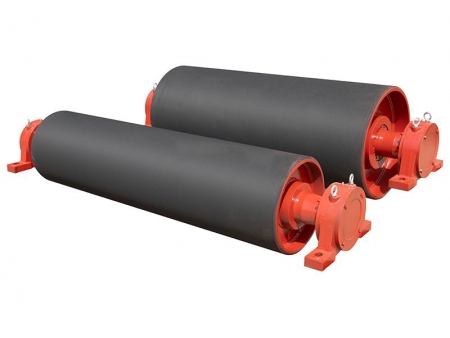

Conveyor pulleys are an important component used in belt conveyors to drive the conveyor belt and change the direction of the belt. Zoomry conveyor pulleys currently in stock include drive pulley, tail pulley, take-up pulley, bend pulley and snub pulley.

Features

Careful selection and inspection of incoming materials;
Material and structure optimization based on finite element stress analysis;
Complete quality control system;

Materials

Different materials are chosen to suit certain force-bearing capacity requirements and adapt to actual working environments. Conveyor pulley shaft can be made of 45#, 40Cr or 42CrMo steel, while the shell is built using 16Mn steel plate.

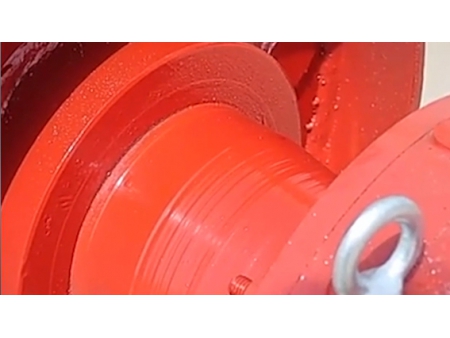

Video Show

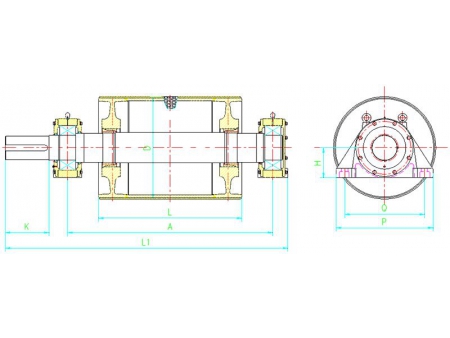

Specifications

Belt width diameter	500mm	650mm	800mm	1000mm	1200mm	1400mm	1600mm	1800mm	2000mm	2200mm
400mm	√	√	√	√	√	√
500mm	√	√	√	√	√	√	√
630mm		√	√	√	√	√	√
800mm			√	√	√	√	√	√
1000mm			√	√	√	√	√	√	√
1250mm				√	√	√	√	√	√
1400mm				√	√	√	√	√	√
1600mm					√	√	√	√	√
1800mm							√	√	√	√
2000mm							√	√	√	√
