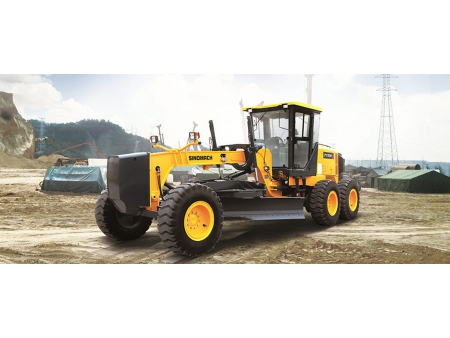

717H Motor Grader

Request a Quote

View All: http://sinomachhiglobal.com/2motor_grader_1.html

Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward&3 reverse shifts makes operation easy and convenient
Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability
Powerful traction deal axle load allocation provides excellent stability while cutting hard surface
Serviceable, efficient hydraulic system enables every part to be fully used
Box-typed frame and advanced T/M enable it to complete heavy-duty work
A wide working range is accomplished through flexible blade suspension system and articulated frame

Consulting Products Information

Specifications of Motor Grader 717H:

Basic specification
Engine model	Cummins 6BTA5.9-C180
Rated power	132KW@2200rpm
Dimension(L×W×H)	8820×2600×3420（mm）
Operating weight(Standard)	14500KG
Performance specification
Travelling speed, forward	6.5/11.4/14.6/24.8/30/49.2
Travelling speed, reverse	6.5/14.6/30
Tractive force(f=0.75)	74.6KN
Operating specification
Max. steering angle of front wheels	49°
Max. lean angle of front wheels	17°
Max. oscillation angle of front axle	16°
Max. oscillation angle of balance box	13°
Frame articulation angle	26°
Min. turning radius using articulation	7.3m
Blade
Maximum lift above ground	450mm
Maximum grading depth	535mm
Maximum blade position angle	90°
Blade cutting angle	29°~77°
Circle reversing rotation	360°
Moldboard width × height	3658×580mm

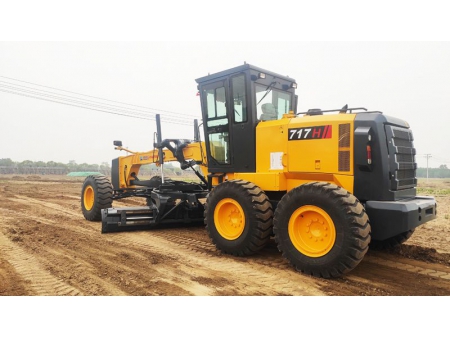

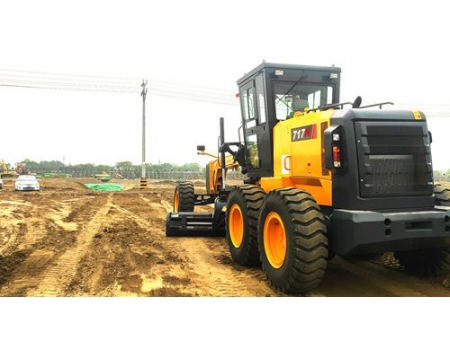

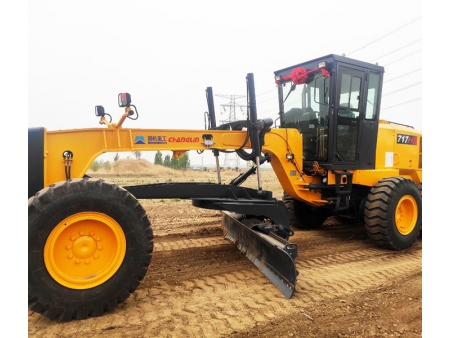

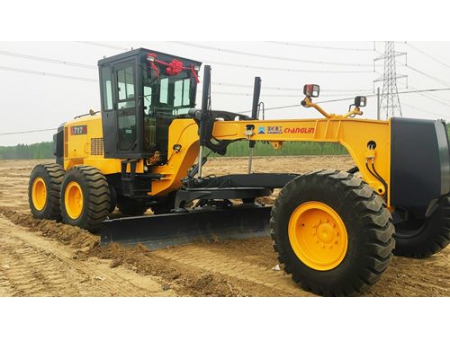

Gallery
