Die Casting Mold Cooling Machine
Request a Quote

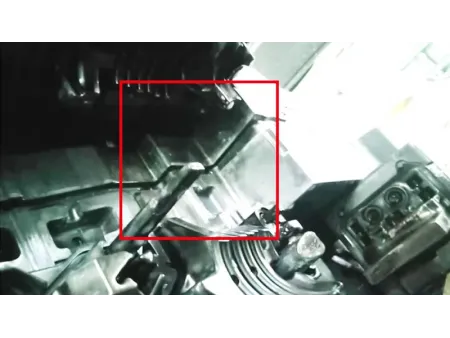

Mold cooler used in die casting process to achieve consistent temperature across the die casting mold
- The equipment rapidly builds pressure to ensure that cooling water reaches mold hot spots immediately.
- During operation, the equipment maintains constant stable pressure to ensure uniform cooling water flow.
Technical Specifications
| Type | MLJ Series Real-Time Monitoring | ||
| Model | | | |
| Power supply | 380V50Hz | 380V50Hz | 380V50Hz |
| Cooling water circuits | Optional (one-to-one, one-to-many) | Optional (one-to-one, one-to-many) | Optional (one-to-one, one-to-many) |
| Pump power | 4kW | 5.5kW | 7.5kW |
| Cooling water discharge pressure | 0.4-0.8MPa | 0.4-0.8MPa | 0.4-0.8MPa |
| Water source (clean tap water/pure water) | 0.2-0.3MPa | 0.2-0.3MPa | 0.2-0.3MPa |
| Machine dimensions (L×W×H) | 1000×800×1450mm | 1000×800×1450mm | 1000×800×1450mm |
| Distributor dimensions (L×W×H) | 560×190×370mm | 560×190×370mm | 560×190×370mm |
Features
- Multi-point monitoring with sub-regional control.
- Rapid pressurization ensures cooling water reaches mold hot spots immediately.
- Constant stable pressure during operation to ensure uniform cooling water flow.
- Real-time monitoring of cooling water flow in each branch, with tolerance bands and over-range alarms.
- Water flow data of each branch can be saved and traced for query.
- Separate design of mainframe and controller for easy disassembly, assembly, and mobility.

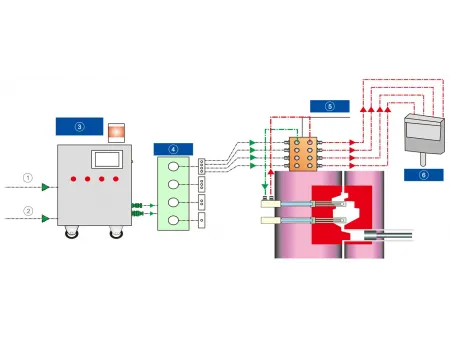

Working Principle Diagram
This die casting mold cooling machine is developed for die casting mold cooling to solve product defects caused by local overheating during the die casting production process. The Xinyu Mold Cooling Machine ensures effective cooling control of molds, keeping them at appropriate temperatures during production to guarantee product forming quality and production continuity.
- Water supply
- Air supply
- Mold cooler
- Distributor
- Water distribution manifold
- Water collection manifold
Problems Solved by This Product
- Condensation
- Mold sticking
