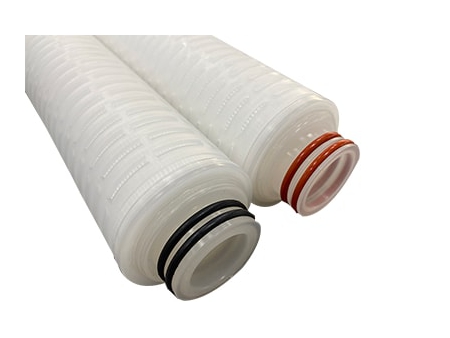

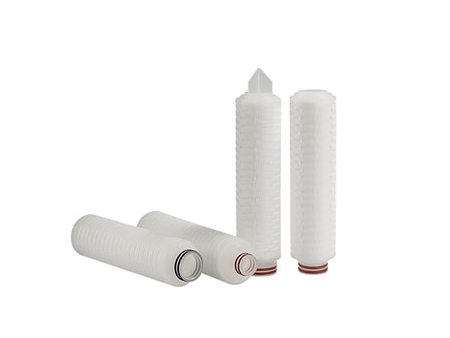

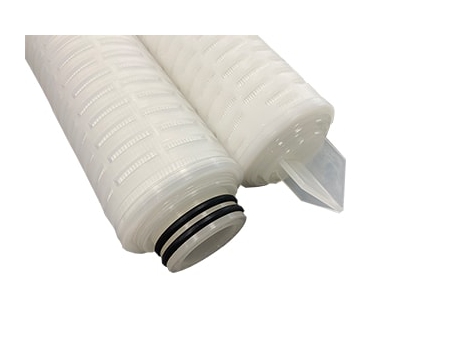

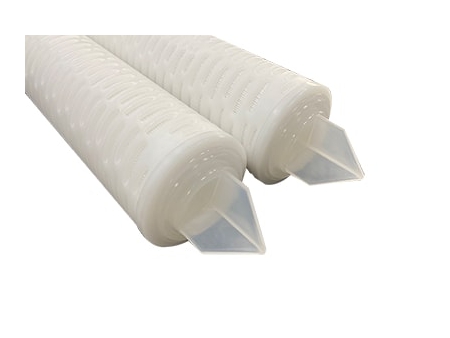

Positively Charged Nylon Membrane Filter Cartridge, PND66 Series

Positively Charged Nylon Membrane Filter Cartridge, PND66 Series
Positively Charged Nylon Membrane Filter Cartridge, PND66 Series
Positively Charged Nylon Membrane Filter Cartridge, PND66 Series
Positively Charged Nylon Membrane Filter Cartridge, PND66 Series
Positively Charged Nylon Membrane Filter Cartridge, PND66 Series
Request a Quote

Introducing our positively charged nylon membrane filter cartridge, crafted from hydrophilic nylon 66 membrane and featuring a modified positively charged N66 filtration layer. This unique design enables adsorption and removal of particles, bacteria, and endotoxins within the range of the filtration precision, achieving an impressive 99.97% endotoxin removal efficiency.

With high chemical compatibility, our positively charged nylon membrane filter cartridges are ideal for filtration of solvents and chemicals, and can adsorb negatively charged colloids, proteins, and endotoxins within a pH range of 3 to 10.

Materials of Construction
Filter Medium Dual-layer Positively Charged Nylon 66 Membrane Filter
Support/Drainage Polyester
Center Rod/Housing/End Cap Polypropylene
Specifications
Length 5", 10", 20", 30", 40"
Micron Rating 0.1 0.1μm, 0.22 0.22μm, 0.45 0.22μm, 0.45 0.45μm
Max. Operating Temperature 80℃
Max. Differential Pressure 4.0 bar / 21℃
2.4bar / 80℃
Max. Reverse Differential Pressure 2bar/21℃
Steam Sterilization 121℃/30min
Filtration Area 0.6~0.7 m2/10"
Biological Safety Dissolved matter<30mg per 10"
Endotoxin level<0.25EU/ml
Applications
  • Sterilizing filtration for pharmaceutical water
  • Filtration of high endotoxin medicines
  • Sterilization filtration of saline and other solvents
  • Sterilization filtration for infusions, injections, and antibiotic solutions
