Low Diffusion Flow PES Membrane Filter Cartridge, ULPS Series

Low Diffusion Flow PES Membrane Filter Cartridge, ULPS Series
Low Diffusion Flow PES Membrane Filter Cartridge, ULPS Series
Low Diffusion Flow PES Membrane Filter Cartridge, ULPS Series
Low Diffusion Flow PES Membrane Filter Cartridge, ULPS Series
Request a Quote

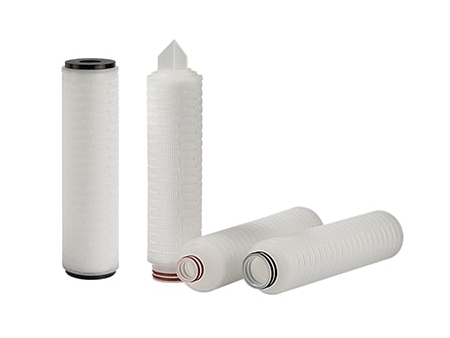

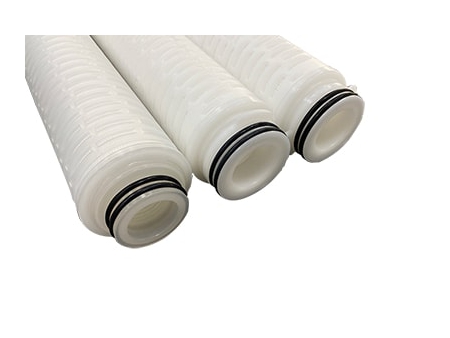

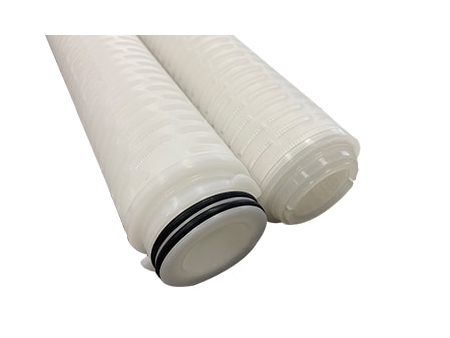

Introducing our latest innovation in liquid sterilizing-grade filtration - the low diffusion flow PES membrane filter cartridge. Featuring an ultra-fine polypropylene fiber filter medium, these cartridges offer fixed pore size deep filtration. The ultra-low diffusion flow ensures high sterilization performance. Each cartridge undergoes a 100% integrity test before leaving the factory, ensuring both cartridge integrity and sterilization effectiveness.

Materials of Construction
Filter Medium PES membrane
Support/Drainage Polypropylene
Center Rod/Housing/End Cap Polypropylene
Specifications
Length 5", 10", 20", 30", 40"
Micron Rating 0.05~1.2μm
Max. Operating Temperature 90℃
Max. Differential Pressure 4.0 bar / 21℃ 2.4bar / 80℃
Max. Reverse Differential Pressure 2bar/21℃
Steam Sterilization 121℃/30min
Filtration Area 0.6~0.7 m2/10"
Bubble Point Pressure (0.22μm) Diffusion Flow ≥0.34MPa (pure water)
≤20ml/min (0.275MPa)
Biological Safety Dissolved matter<30mg per 10"
Endotoxin level<0.25EU/ml
Applications
  • Sterilizing filtration for infusions, injections, and medical solutions
  • Sterilizing filtration of cleaning and disinfectant solutions
  • Sterilizing filtration of antibiotic solutions
