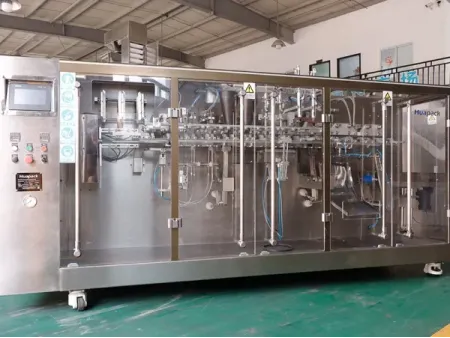

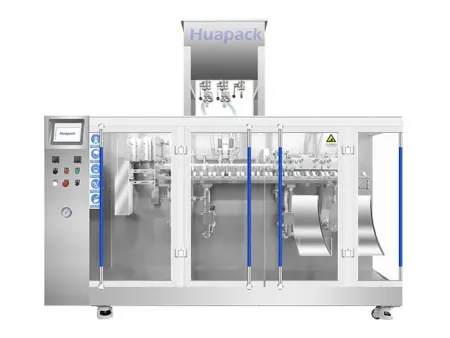

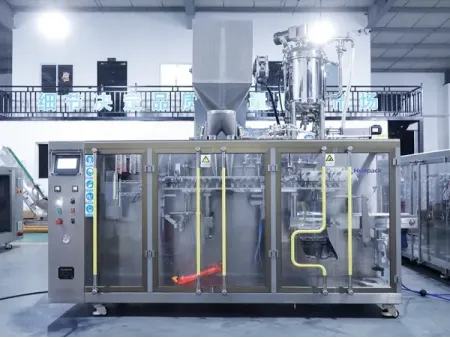

Premade Pouch Packaging Machine, 2-Nozzle Filling
These horizontal automatic packaging machines are suitable for premade stand-up pouches and can handle formats of up to 700 ml. Two nozzles work at the same time, so two pouches are filled simultaneously, allowing the line to reach speeds of up to 80 pouches per minute. This helps increase output while keeping the filling process stable and easy to manage. These 2-nozzle premade pouch packaging machines are perfect for medium and larger pouch sizes, especially in production lines where higher output is needed but consistent filling and good pouch shape are still a priority.
- Dual pouch loading
- Dual pouch pick-up
- Dual pouch opening
- Dual air blowing (pouch opening air assist)
- Dual filling
- Dual pouch expanding
- Heat sealing
- Cooling sealing
- Finished pouch discharge
- Finished pouch conveying
- Two premade pouches are processed in parallel, from picking and opening to filling and sealing. When both lanes run in parallel, more pouches can be packed in the same amount of time, which makes it much easier to keep up with large orders and tight production schedules.
- By changing the feeding system, the same packaging line can work with different product types, including liquids, powders, and granules, allowing one setup to cover multiple applications.
- A wide variety of pouch styles can be handled smoothly, such as three-side seal, four-side seal, stand-up pouches, shaped pouches, and zipper pouches, giving more flexibility for different packaging designs.
- Equipped with a PLC-based control system to coordinate all main movements, keeping the packaging operation stable and ensuring continuous, well-synchronized production.
- The line can be connected with auxiliary equipment such as inkjet printers, checkweighers, cartoners, case packers, labeling machines, and palletizers, to make it easy to build a complete and automatic packaging line.
| Model | 330DG | |
| Packaging parameters | Min. pouch size (W × H) | 70×130mm |
| Max. pouch size (W × H) | 160×300mm | |
| Max. filling volume | 700ml | |
| Packing speed (pouches/min) | ≤80 | |
| Equipment specifications | Machine dimensions (L × W × H) | 3520mm×2600mm×1600mm |
| Total machine weight | 2000kg | |
| Operating conditions | Ambient temperature | -10℃-＋55℃ |
| Relative humidity (non-condensing) | <85% | |
| Power supply | AC380V, 50Hz | |
| Working air pressure | 0.6Mpa | |
| Air consumption | 560L/min | |
| Main motor power | 6Kw | |
Zipper opening
Pouch hole punching
- Sombrero hole (butterfly hole)
- Round hole
- Special-shape punching
- Arc hole / Curved slot hole
- Euro hole
Coding options
- Hot stamp coding
- Inkjet printing
- Laser marking
Sealing patterns
- Grid pattern
- Dotted pattern
- Plain/flat pattern
- Vertical rib pattern

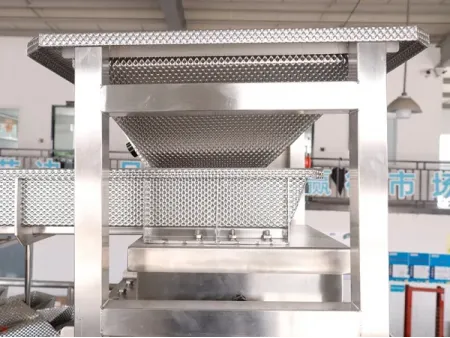

- Filling section
- Pouch gripping section
- Conveyor system
A food company in Pakistan purchased a 2-nozzle premade pouch packaging machine in 2025 to produce stand-up zipper pouches for gummy products in the 30 g to 100 g range.
